Toyota CAMRY indicator light — Figure 8302

Toyota CAMRY EPC diagram 8302, indicator light, with 2 images and 5 PNC and OE references.

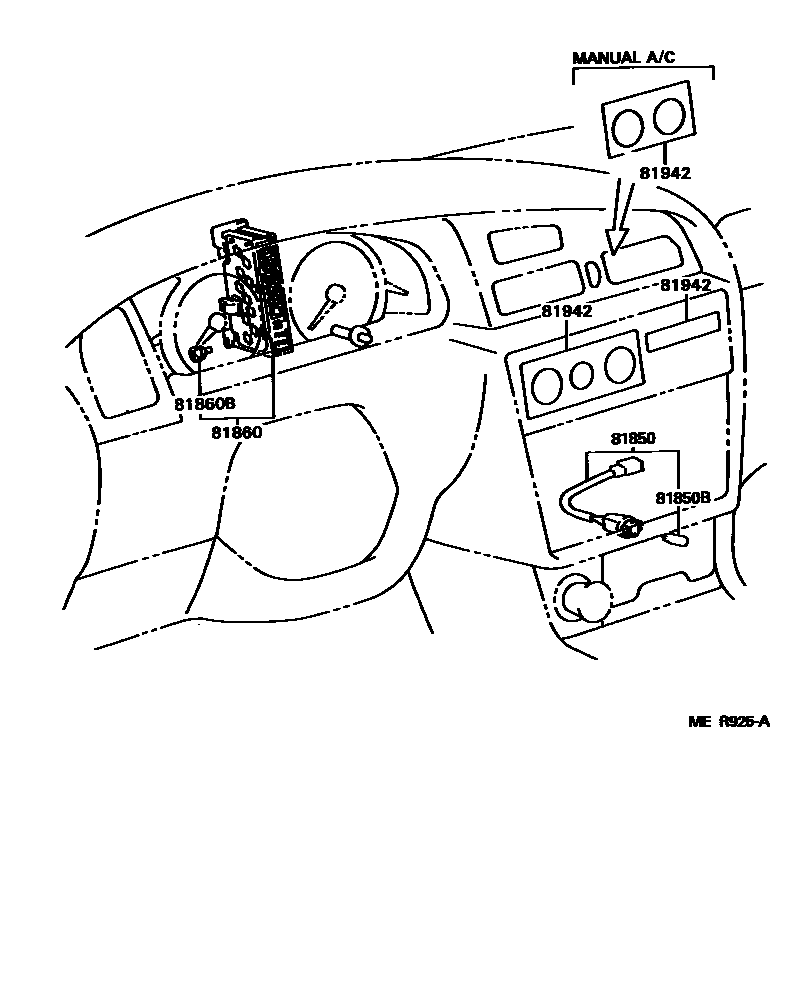

Toyota CAMRY indicator light EPC diagram — MER925A
indicator light — MER925A (199106 – 199608)

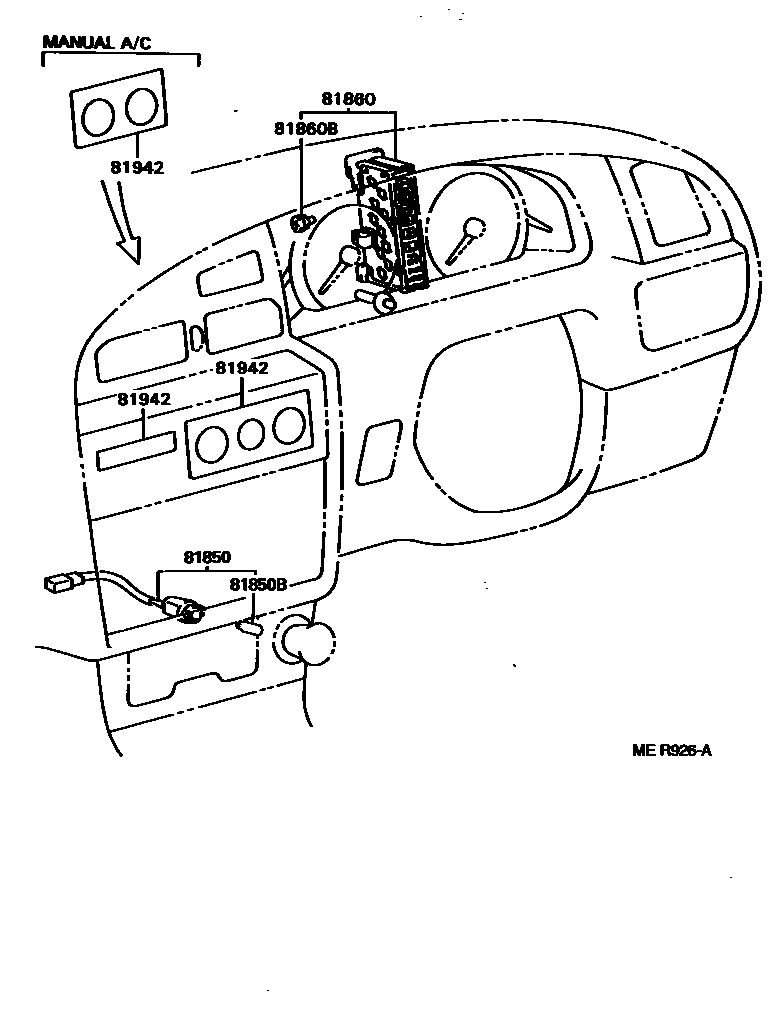

Toyota CAMRY indicator light EPC diagram — MER926A
indicator light — MER926A (199106 – 199608)

PNC and OE references

PNCPart nameOE numbers
81850Indicator light assembly81850-33010
81850Bpilot light bulb90981-11014
81860Transmission indicator light assembly81860-33010 · 81860-33030 · 81860-33031
81860BTransmission indicator light bulb90072-02005 · 90072-02006
81942Heater control nameplate81942-33010 · 81942-33020 · 81942-33030 · 81942-33040 · 81942-33050 · 81942-33060 · 81942-33070
