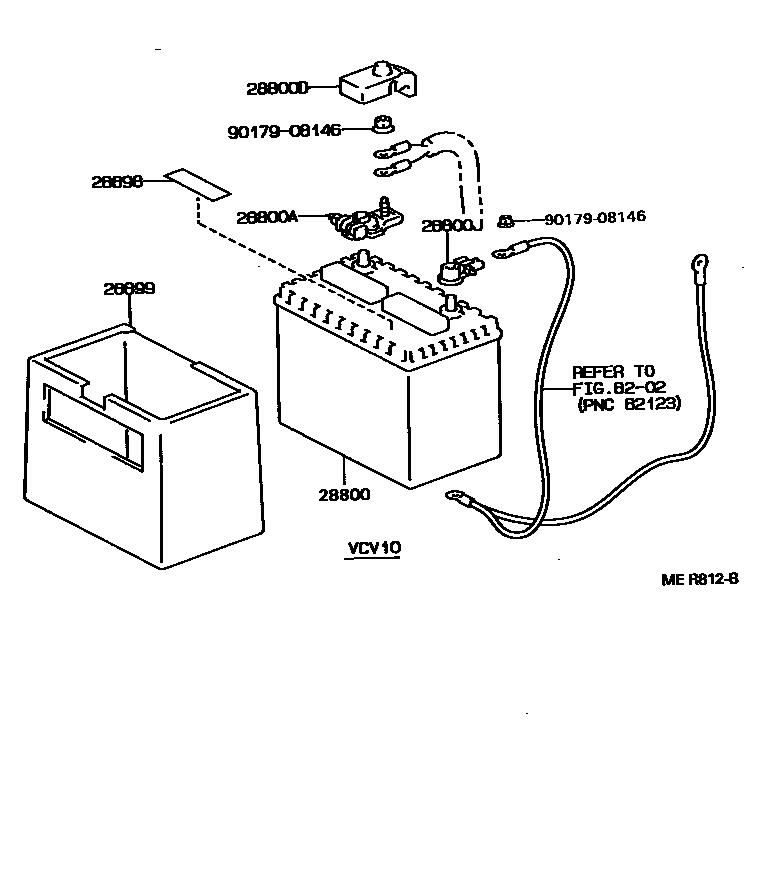

Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-42030 · 28800-74140 · 28800-74141 |
| 28800A | battery positive terminal | 90982-05035 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 |
| 28800J | battery negative terminal | 90982-06022 |
| 28898 | battery plates | 28898-46010 · 28898-50070 |
| 28899 | Battery insulation cover | 28899-62040 · 28899-62041 · 28899-62050 · 28899-62051 |
