Toyota CAMRY 倒车灯 — Figure 8112

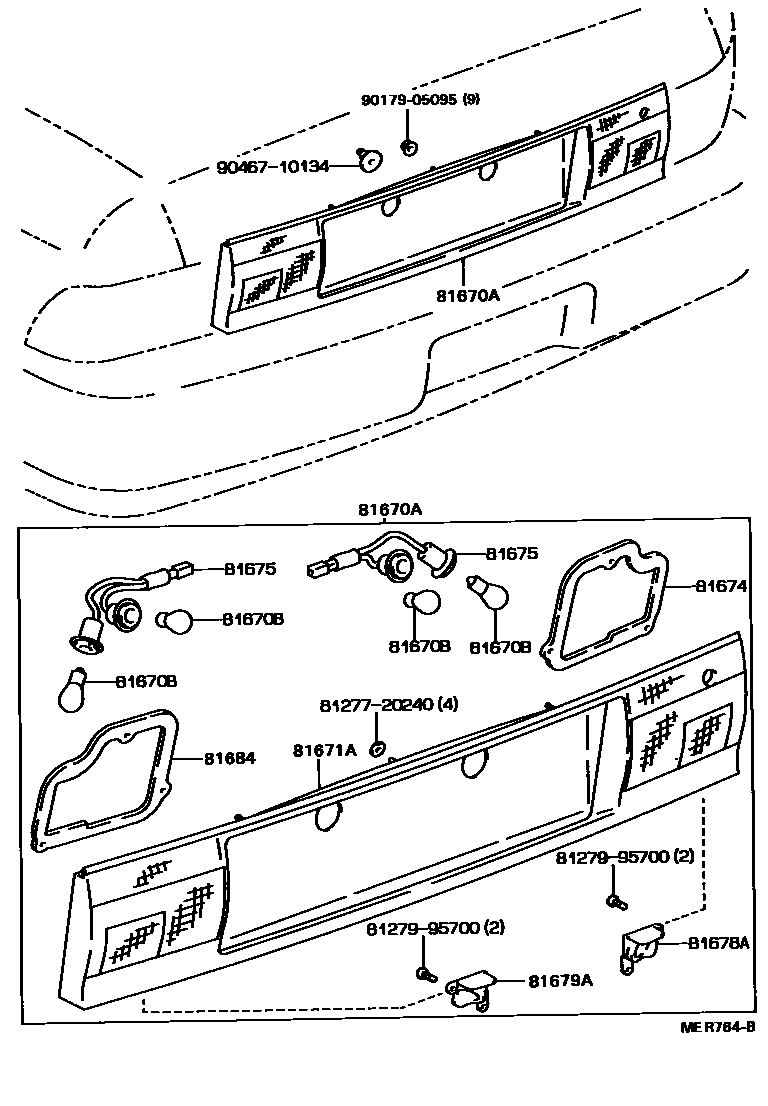

Toyota CAMRY EPC diagram 8112, 倒车灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670A | Reversing light assembly | 81670-33020 · 81670-33021 |
| 81670B | Bulb (for reversing lights) | 99132-11210 |
| 81671A | Reversing light shade and body | 81671-33020 · 81671-33021 |
| 81674 | Right reversing light body gasket | 81674-33021 · 81674-33050 |
| 81675 | Reversing light holder and wiring harness | 81675-33020 |
| 81678A | Right reversing light cover | 81678-33050 |
| 81679A | Left reversing light cover | 81679-33050 |
| 81684 | Left reversing light body gasket | 81674-33050 |
