Toyota CAMRY accelerator pedal connecting rod — Figure 7801

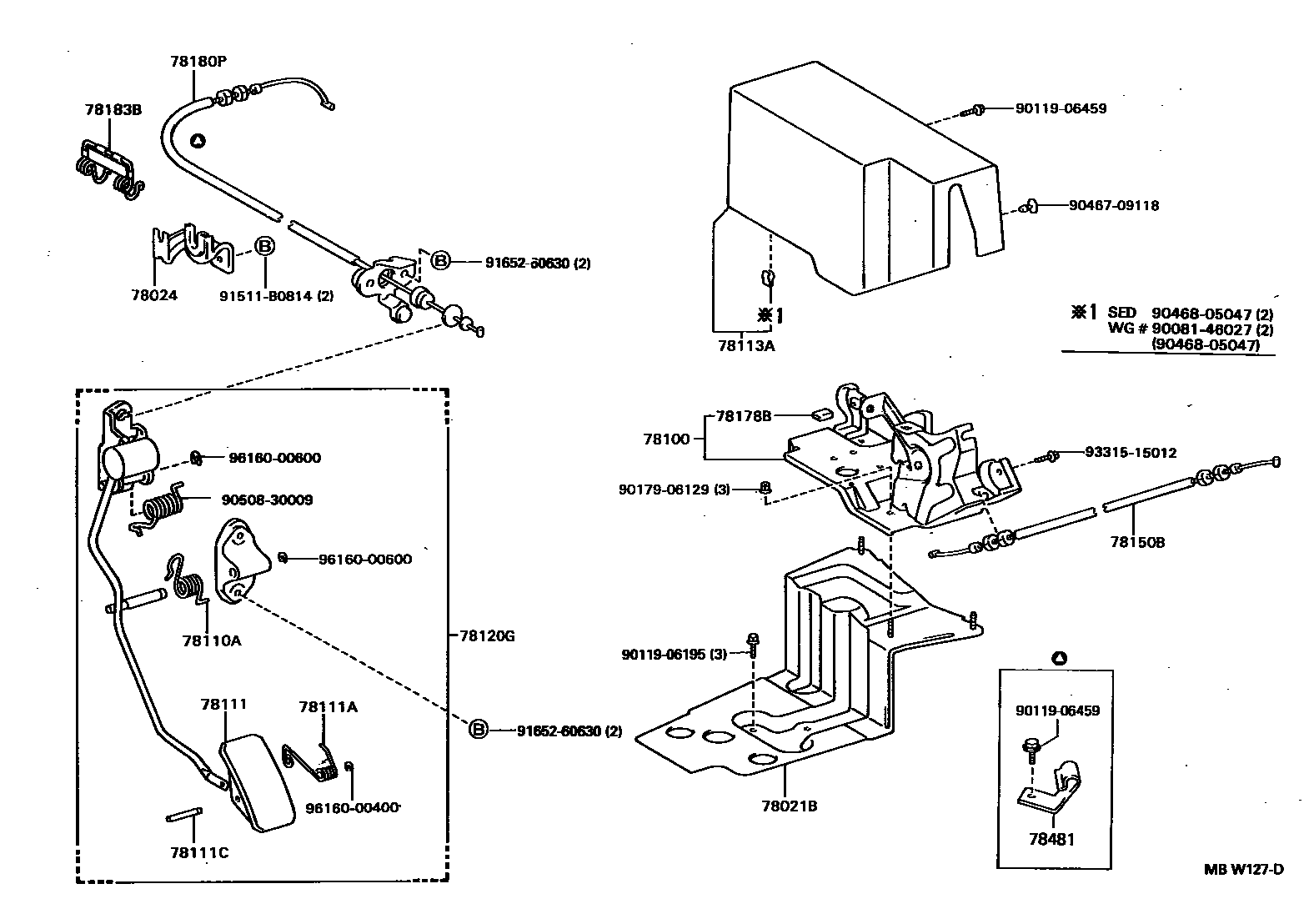

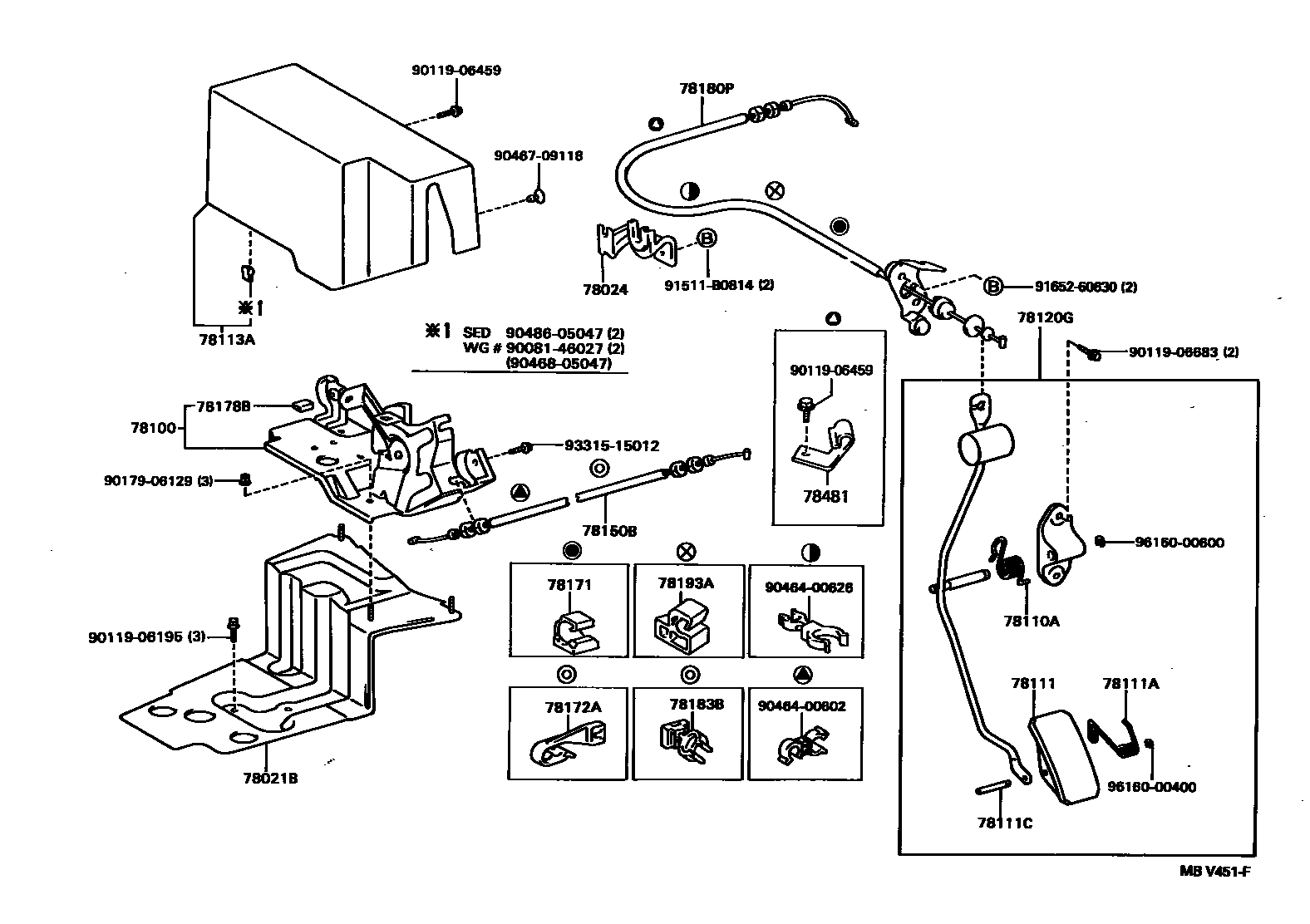

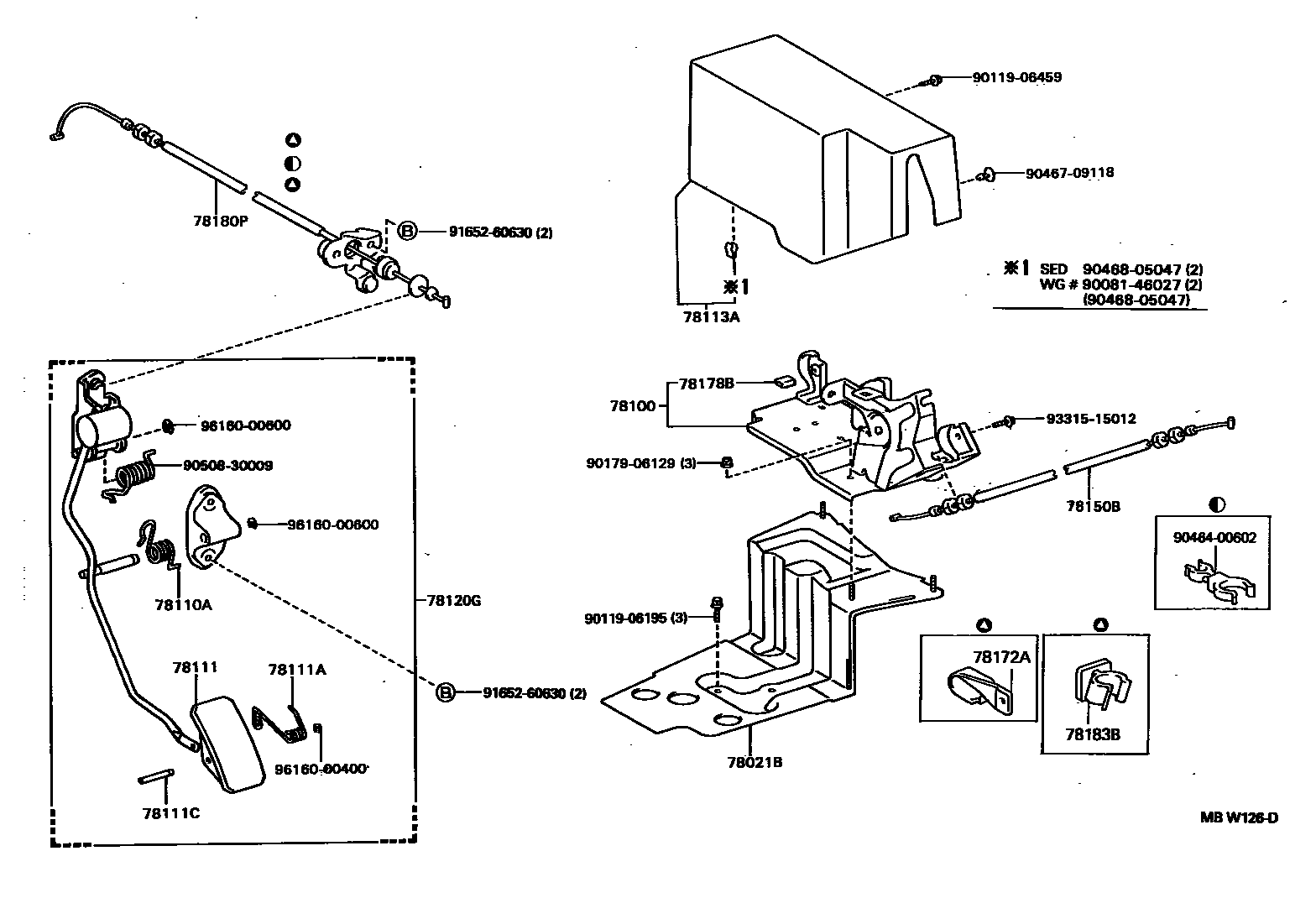

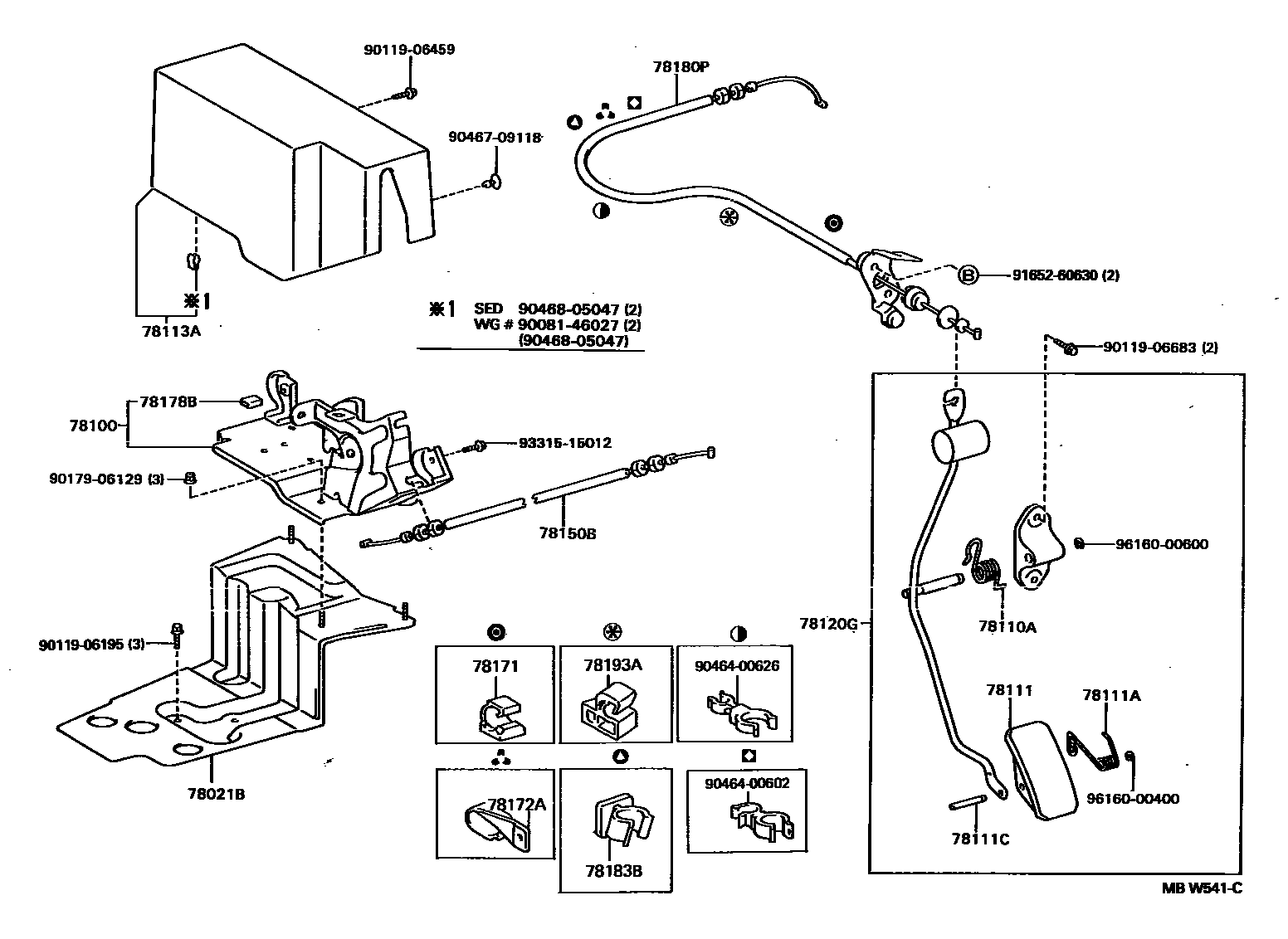

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78021B | Accelerator pedal control right-angle lever bracket sub-assembly | 78021-33010 |
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-33010 · 78024-33020 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-33010 · 78100-33020 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18048 · 90508-23069 · 90508-26062 · 90508-26075 |
| 78111 | accelerator pedal | 78111-12100 · 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18046 · 90508-18050 · 90959-03003 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-33010 · 78113-33020 |
| 78120G | Accelerator pedal lever assembly | 78120-33020 · 78120-33030 · 78120-33040 · 78120-33050 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-33040 · 78150-33050 · 78150-33060 |
| 78171 | No. 2 accelerator pedal control lever right bracket | 78171-33010 |
| 78172A | No. 2 accelerator pedal control lever left bracket | 78172-33010 |
| 78178B | No. 4 acceleration control tie rod bracket shock absorber | 78178-14010 |
| 78180P | Accelerator pedal control cable assembly | 78180-33010 · 78180-33030 · 78180-33040 · 78180-33070 · 78180-33080 · 78180-33100 · 78180-33130 · 78180-33160 |
| 78183B | Accelerator pedal control cable clip | 78183-33010 · 78183-33011 · 78183-33020 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-33010 |
| 78481 | Throttle valve harness clip | 78481-33010 |
