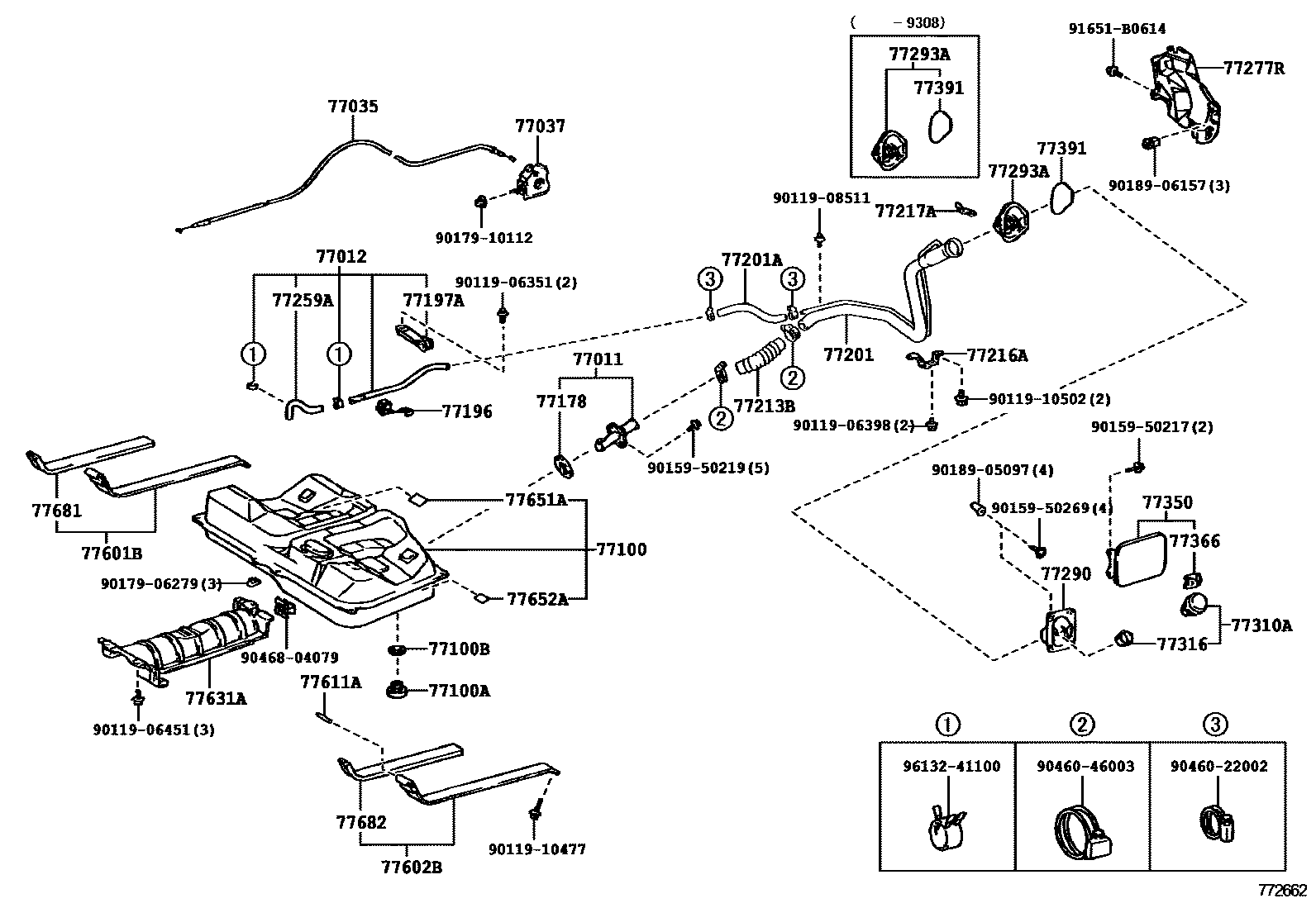

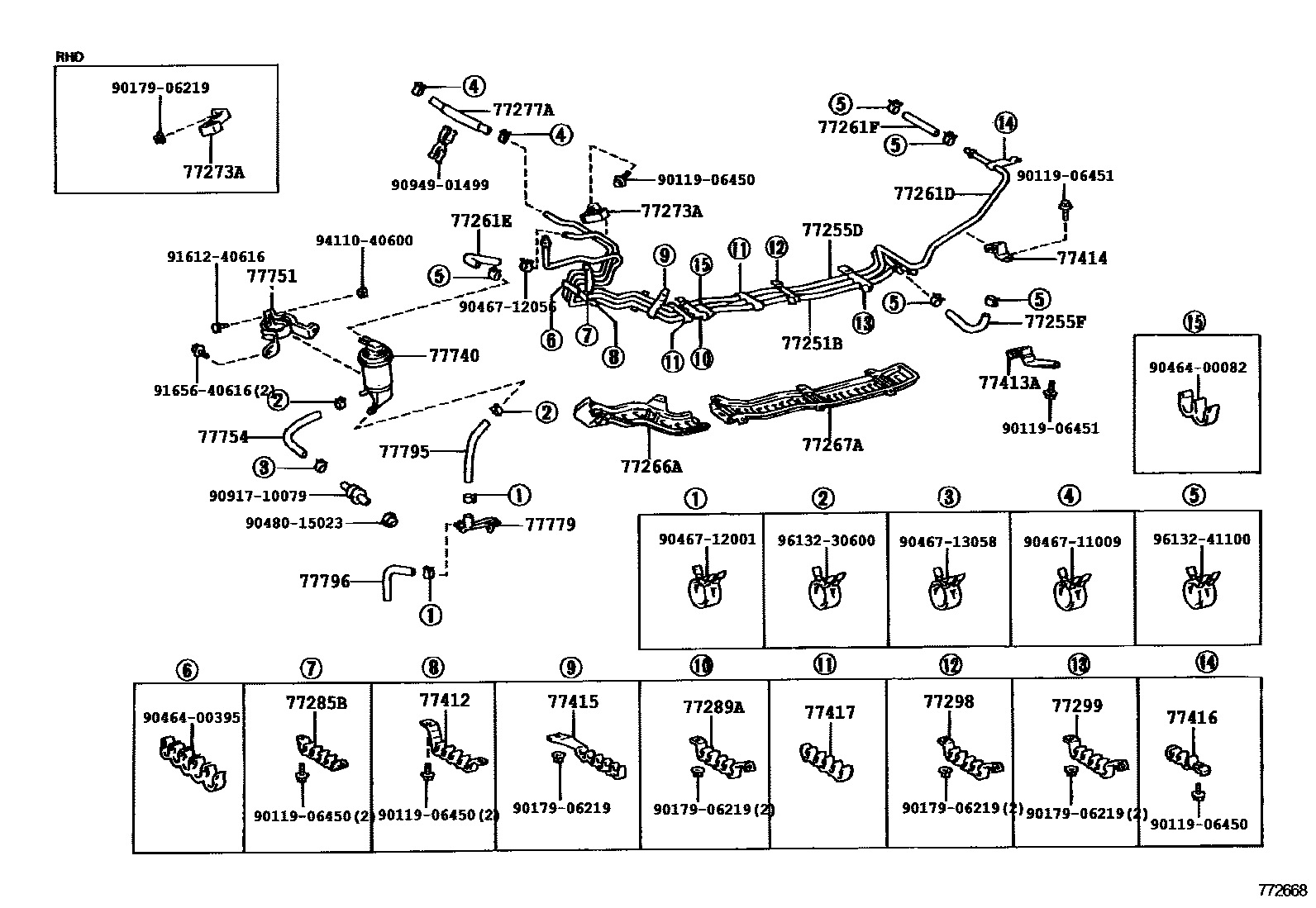

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 2 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-10050 · 77011-41010 |
| 77012 | Fuel tank breather pipe sub-assembly | 77012-33010 · 77028-33010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-33010 · 77035-33030 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-14020 · 77037-32020 |
| 77100 | fuel tank assembly | 77001-39315 · 77001-39325 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-33020 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-33020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33010 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 90445-22024 |
| 77213B | Fuel tank to filler pipe hose | 77213-33010 · 77213-33020 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32050 · 77216-33010 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32030 · 77217-33010 |
| 77251B | main fuel pipe | 77251-33010 · 77251-33060 |
| 77255D | fuel return pipe | 77255-33010 · 77255-33020 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77259-33040 |
| 77259A | Fuel hose (for breather pipe) | 77259-33010 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-33010 · 77261-33020 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-33030 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 95333-06020 |
| 77266A | No. 1 fuel line protection device | 77266-33010 |
| 77267A | No. 2 fuel pipe protection device | 77267-33010 |
| 77273A | No. 6 fuel pipe clamp with retaining ring | 77273-33010 · 77273-33020 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12085 · 90447-12133 · 90447-12141 |
| 77277R | Fuel tank filler pipe protection device | 77277-06010 · 77277-33010 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-33010 |
| 77289A | No. 3 fuel pipe clamp with retaining ring | 77289-33010 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-06010 · 77290-32030 · 77290-33020 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-32020 |
| 77298 | No. 4 fuel pipe clamp with retaining ring | 77298-33010 |
| 77299 | No. 5 fuel pipe clamp with retaining ring | 77299-33010 |
| 77310A | Fuel tank cap assembly | 77310-16011 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-33040 |
| 77366 | Fuel filler cap hinge spring | 77366-12030 · 77366-35010 |
| 77391 | fuel inlet ring | 77391-16011 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-33010 |
| 77413A | No. 3 fuel pipe retaining ring bracket | 77413-33010 |
| 77414 | No. 4 fuel pipe retaining ring bracket | 77414-33010 |
| 77415 | No. 5 fuel pipe retaining ring bracket | 77415-33010 |
| 77416 | No. 6 fuel pipe retaining ring bracket | 77416-33010 |
| 77417 | No. 7 fuel pipe retaining ring bracket | 77417-33010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33010 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-33010 · 77631-33020 |
| 77651A | No. 1 fuel tank liner | 77652-32030 |
| 77652A | No. 2 fuel tank liner | 77652-20110 · 77652-32030 · 77652-33010 |
| 77681 | Fuel tank right side strap seat | 77681-32040 · 77681-32060 · 77681-32070 |
| 77682 | Fuel tank left side strap seat | 77681-32040 · 77681-32060 |
| 77740 | Carbon canister assembly | 77704-33010 · 77740-06030 · 77740-33010 · 77740-33040 |
| 77751 | Carbon canister base bracket | 77751-06020 · 77751-33010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-33010 |
| 77779 | Carbon canister outlet pipe | 77779-33010 |
| 77795 | No. 2 carbon canister outlet hose | 77795-33010 |
| 77796 | No. 3 carbon canister outlet hose | 77796-33010 |
