Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.

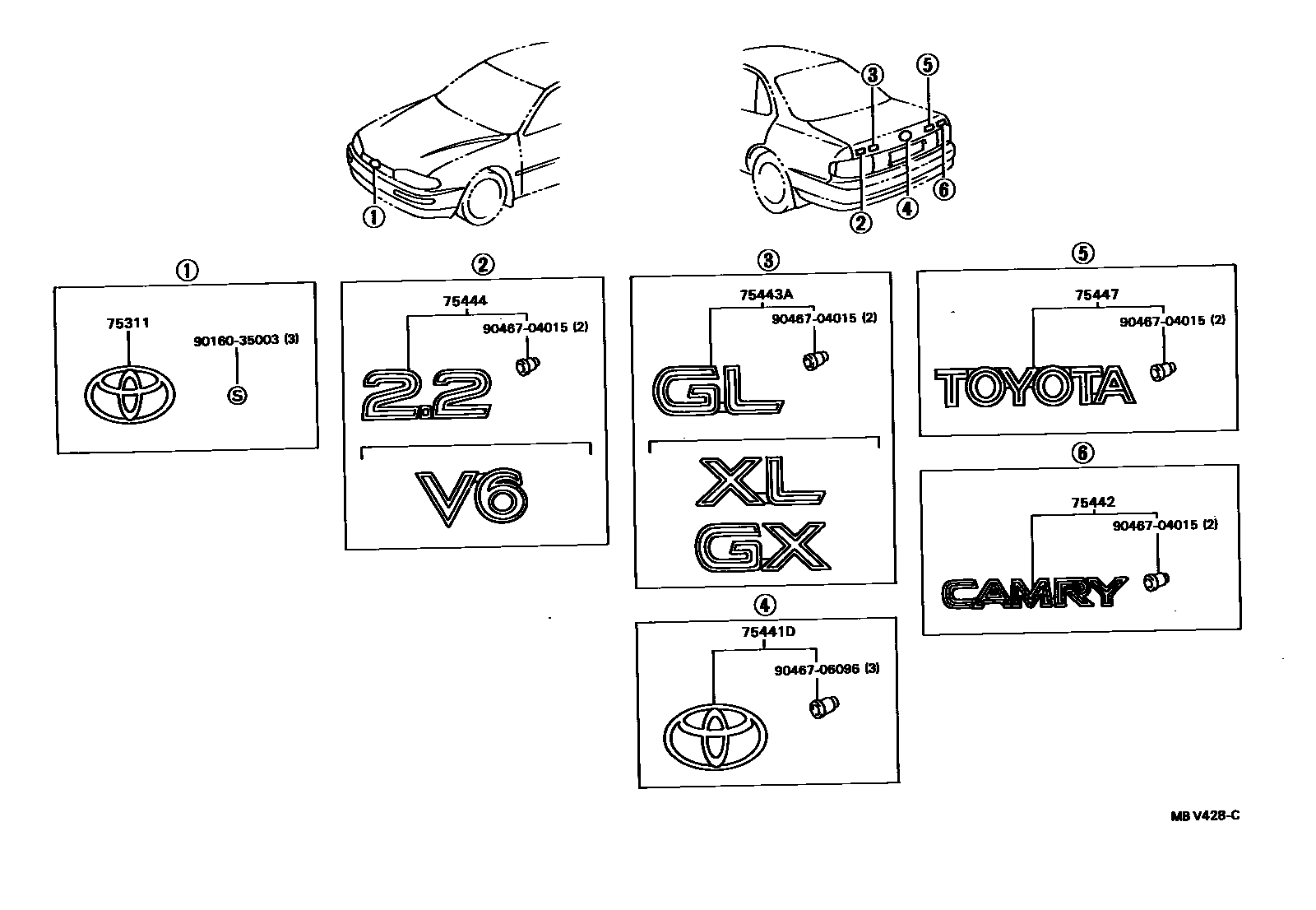

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — MBV428C
丰田徽标和铭牌(车外和车内) — MBV428C (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-33010
75441DTrunk door No. 1 name plate75441-33010 · 75441-33011
75442Trunk door number plate No. 275442-33010 · 75442-33011
75443ATrunk door No. 3 nameplate75443-33040 · 75443-33050 · 75443-33060
75444Trunk door No. 4 nameplate75444-33010 · 75444-33020
75447Trunk door No. 7 nameplate75447-33030 · 75447-33031
