Toyota CAMRY battery holder — Figure 7402

Toyota CAMRY EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

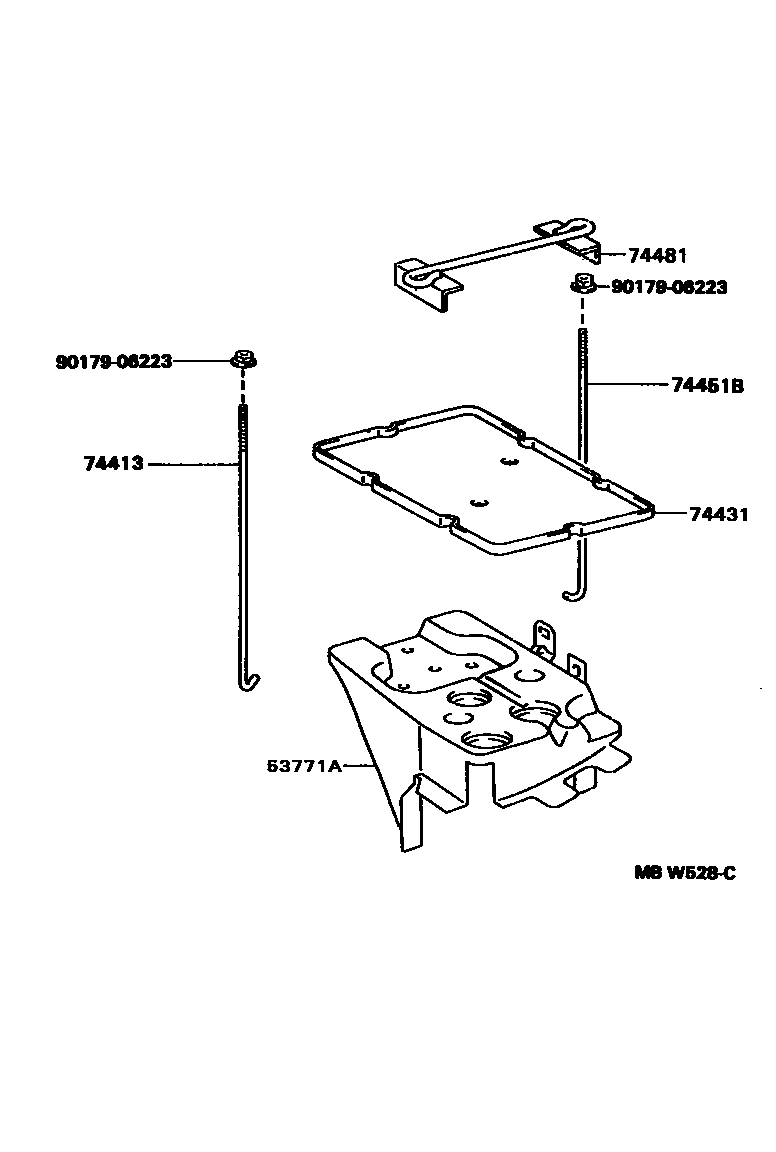

Toyota CAMRY battery holder EPC diagram — MBW528C
battery holder — MBW528C (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
53771Abattery holder bracket53704-33010
74413Battery clamp bolt74451-33010
74431battery tray74431-33010
74451BBattery clamp bolt74452-33010
74481Battery fixing clip74404-33010 · 74404-33030
