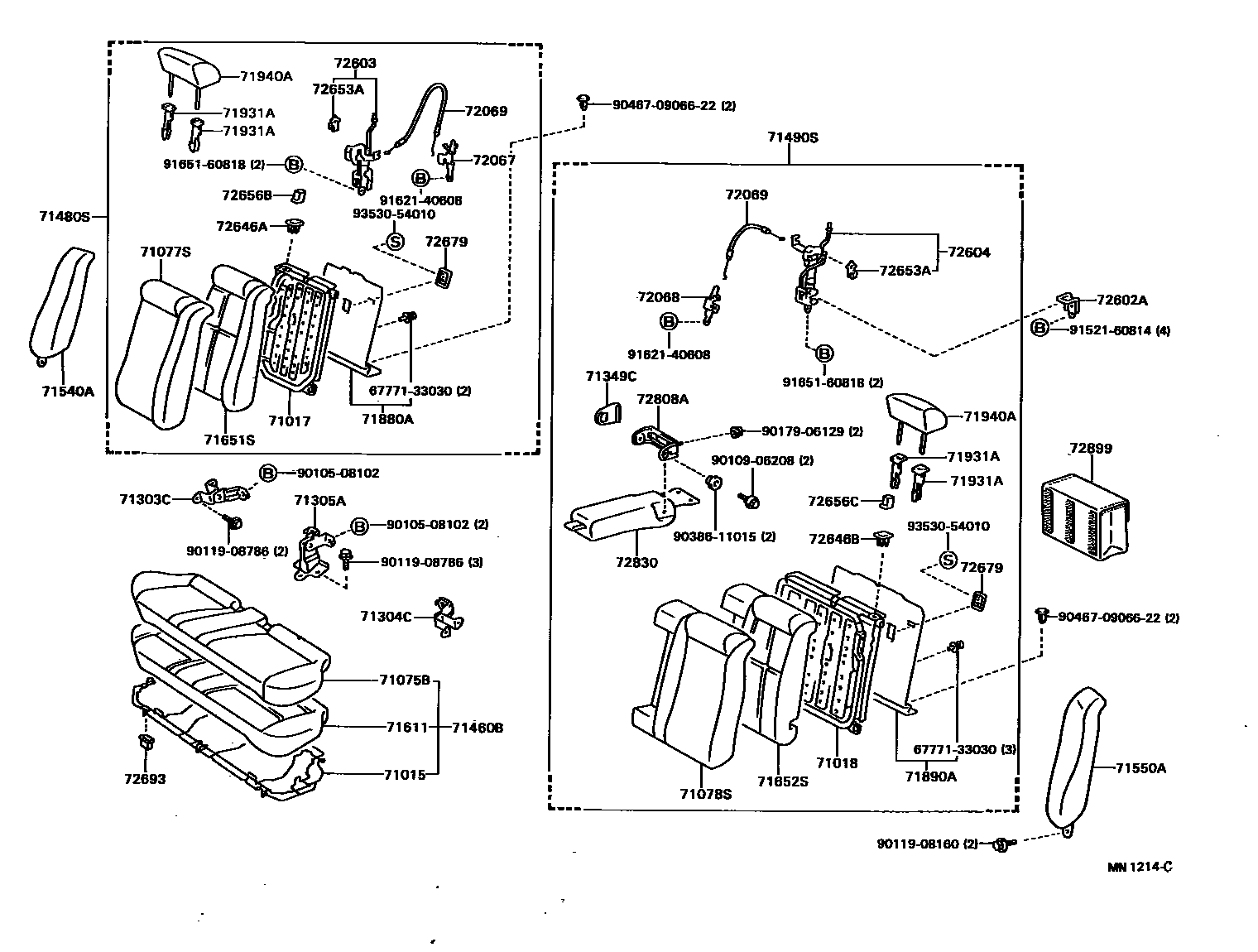

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-33010 · 71015-33011 |
| 71017 | Right rear seat back frame sub-assembly | 71017-33020 · 71017-33050 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33010 · 71018-33020 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-32050 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-32050 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33010 |
| 71611 | Rear seat cushion cushion | 71611-33010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33020 · 71651-33060 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-33010 · 71652-33020 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20010 · 72067-20011 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-20010 · 72068-20011 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-32020 · 72069-33010 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12080 |
| 72603 | Rear right seat back lock sub-assembly | 72603-32020 · 72603-33010 |
| 72604 | Rear left seat back lock sub-assembly | 72604-32020 · 72604-33010 |
| 72653A | Rear seat back lock lever buckle | 69759-24010 · 69759-24020 |
| 72693 | Rear seat cushion hook | 72693-32020 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-33010 |
