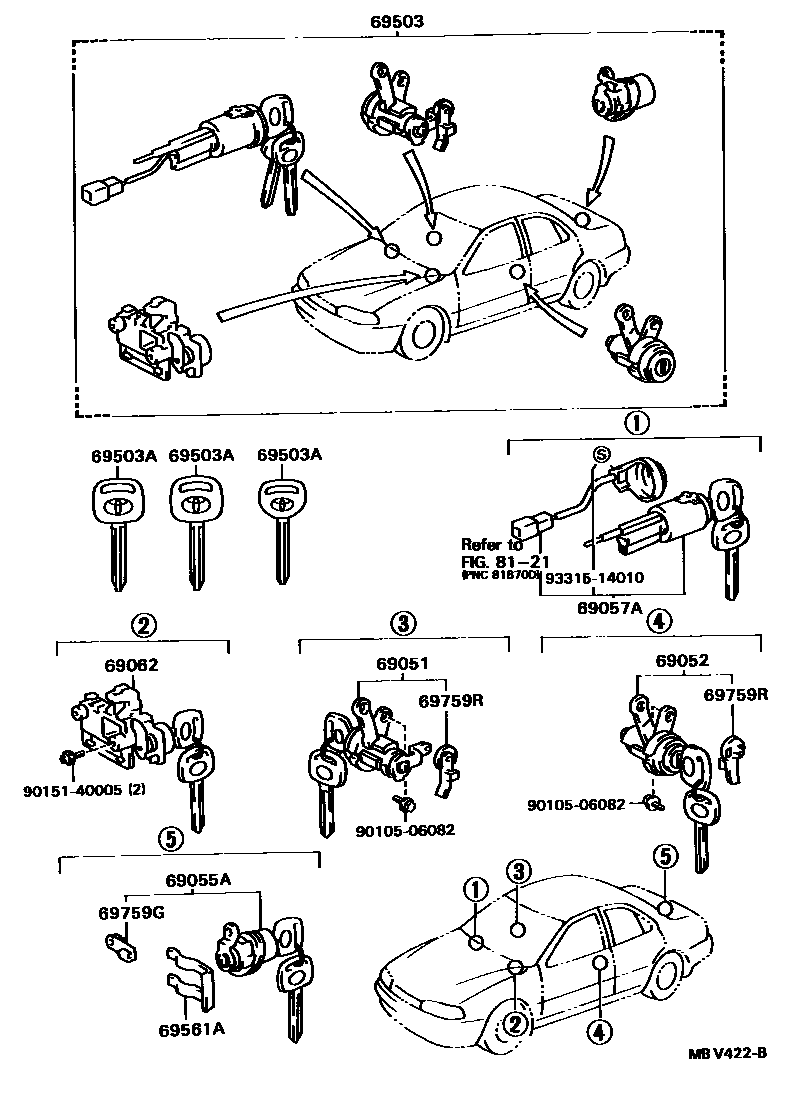

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-33020 · 69051-33060 |
| 69052 | Left door lock cylinder and key assembly | 69052-33030 · 69052-33070 · 69052-33120 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33020 · 69055-33021 · 69055-33090 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-33020 · 69057-33030 · 69057-33090 |
| 69062 | Glove box lock cylinder and key assembly | 69056-33020 |
| 69503 | Door lock cylinder components | 69005-33030 · 69005-33031 · 69005-33040 · 69005-33041 · 69005-33330 · 69005-33400 |
| 69503A | external tooth key | 90999-00185 · 90999-00187 |
| 69561A | Luggage lock core fixing parts | 69561-33010 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-32090 · 69759-32100 |
