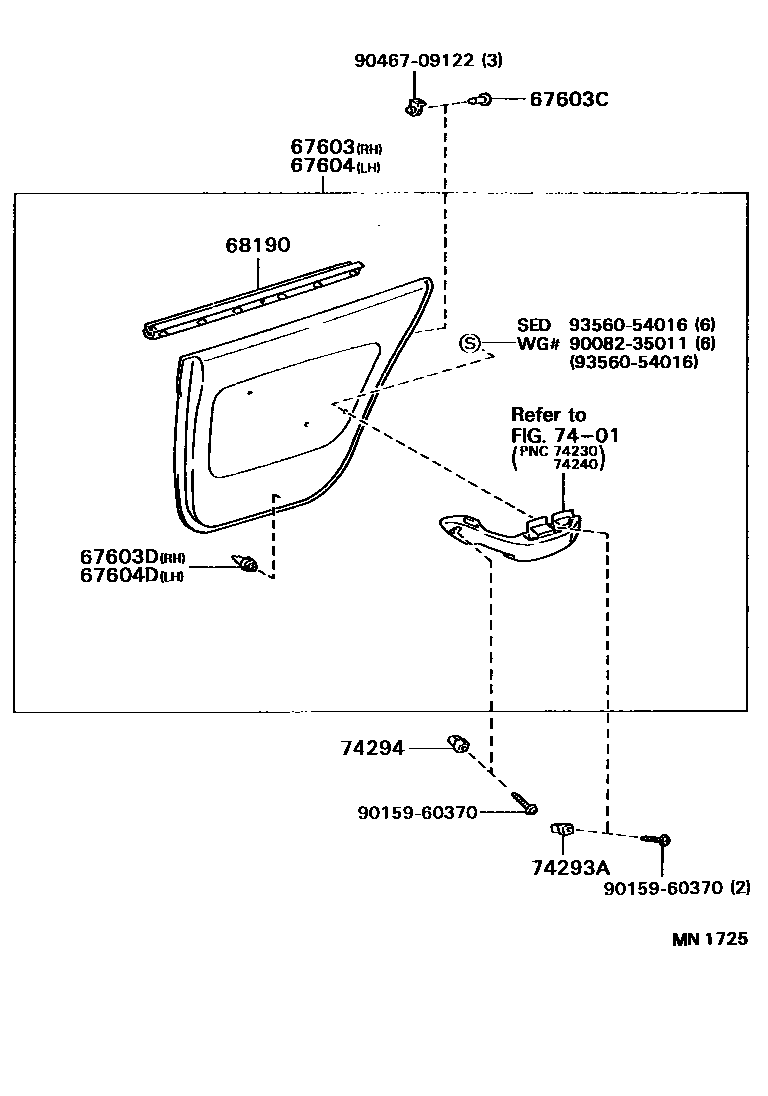

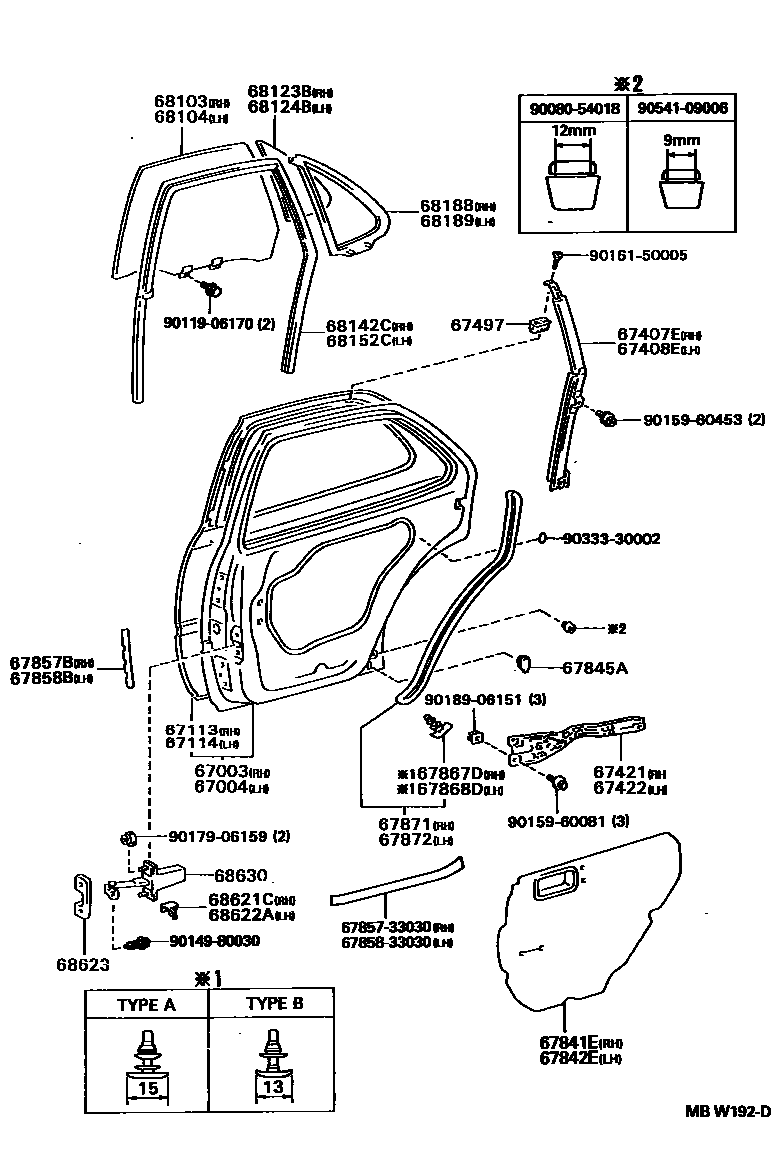

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-33010 · 67003-33011 |
| 67004 | Left rear door panel sub-assembly | 67004-33010 · 67004-33011 |
| 67113 | Right rear door outer panel | 67113-32090 · 67113-32091 |
| 67114 | Left rear door outer panel | 67114-32090 · 67114-32091 |
| 67407E | Right rear door window divider sub-assembly | 67407-32060 |
| 67408E | Left rear door window divider sub-assembly | 67408-32060 |
| 67421 | Right rear door window front upper frame | 67421-32050 |
| 67422 | Left rear door window front upper frame | 67422-32050 |
| 67497 | Rear door frame bracket | 67497-32010 · 67497-33020 |
| 67603D | Right rear door trim panel fixing | 67771-32140 |
| 67604D | Left rear door trim panel fixing | 67771-32140 |
| 67841E | Right rear door access hole cover | 67841-32081 · 67841-32100 |
| 67842E | Left rear door access hole cover | 67842-32051 · 67842-32070 |
| 67845A | Rear door access hole auxiliary hole cover | 67845-32010 |
| 67857B | Right rear door panel protector | 67857-33010 |
| 67858B | Left rear door panel protector | 67858-33010 |
| 67867D | Right rear door seal strip fixing | 67867-12150 · 67868-22020 · 67868-30050 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67868-22020 · 67868-30050 |
| 67871 | Right rear door sealing strip | 67871-32090 |
| 67872 | Left rear door sealing strip | 67872-32090 |
| 68103 | Right rear door glass sub-assembly | 68103-32110 |
| 68104 | Left rear door glass sub-assembly | 68104-32110 |
| 68123B | Right rear door corner window glass | 68123-32010 |
| 68124B | Left rear door corner window glass | 68124-32010 |
| 68142C | Right rear door glass lift slot | 68142-32060 |
| 68152C | Left rear door glass lift slot | 68152-32020 |
| 68188 | Right rear door corner window seal | 68188-32010 |
| 68189 | Left rear door corner window seal | 68189-32010 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-33020 · 68240-33020 |
| 68621C | Right rear door opening limiter cover | 68621-32010 |
| 68622A | Left rear door opening limiter cover | 68622-32010 |
| 68623 | Right door opening limiter cover | 68623-32010 |
| 68630 | Rear door opening limiter assembly | 68630-32050 · 68630-33011 · 68640-32040 · 68640-33011 |
| 74293A | No. 1 rear door armrest panel | 74293-32010 |
| 74294 | No. 2 rear door armrest panel | 74294-32010 |
