Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 34 PNC and OE references.

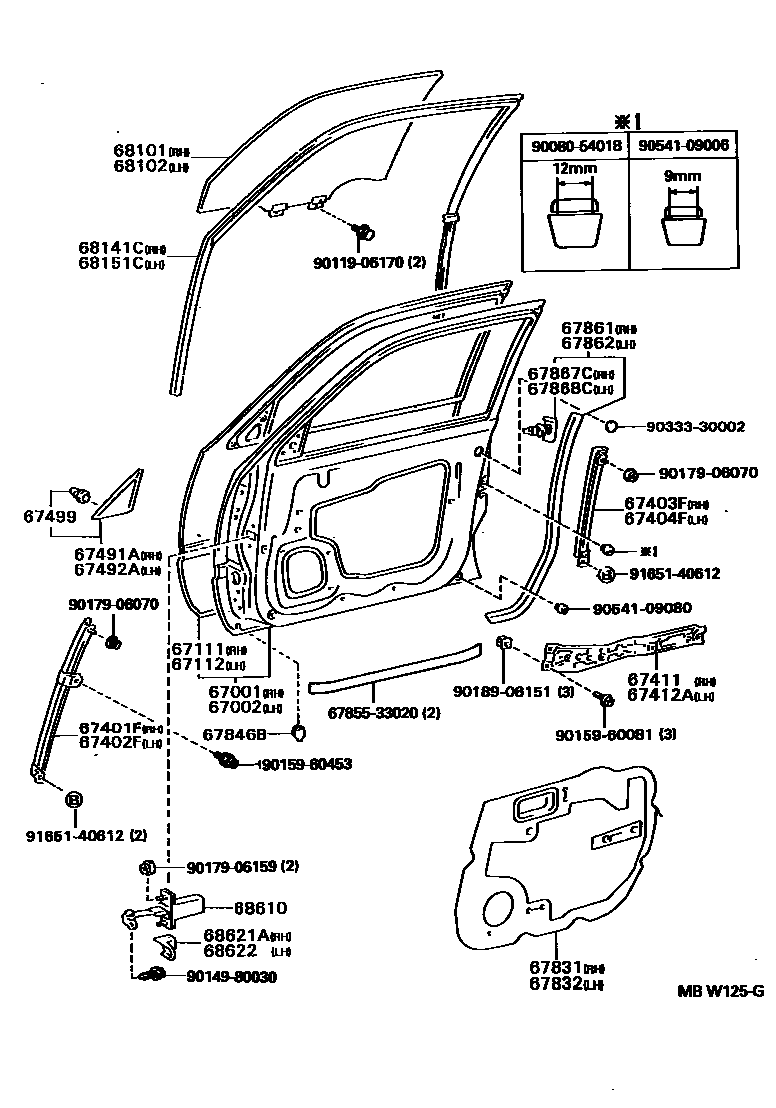

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBW125G
前门板和前门玻璃 — MBW125G (199106 – 999999)

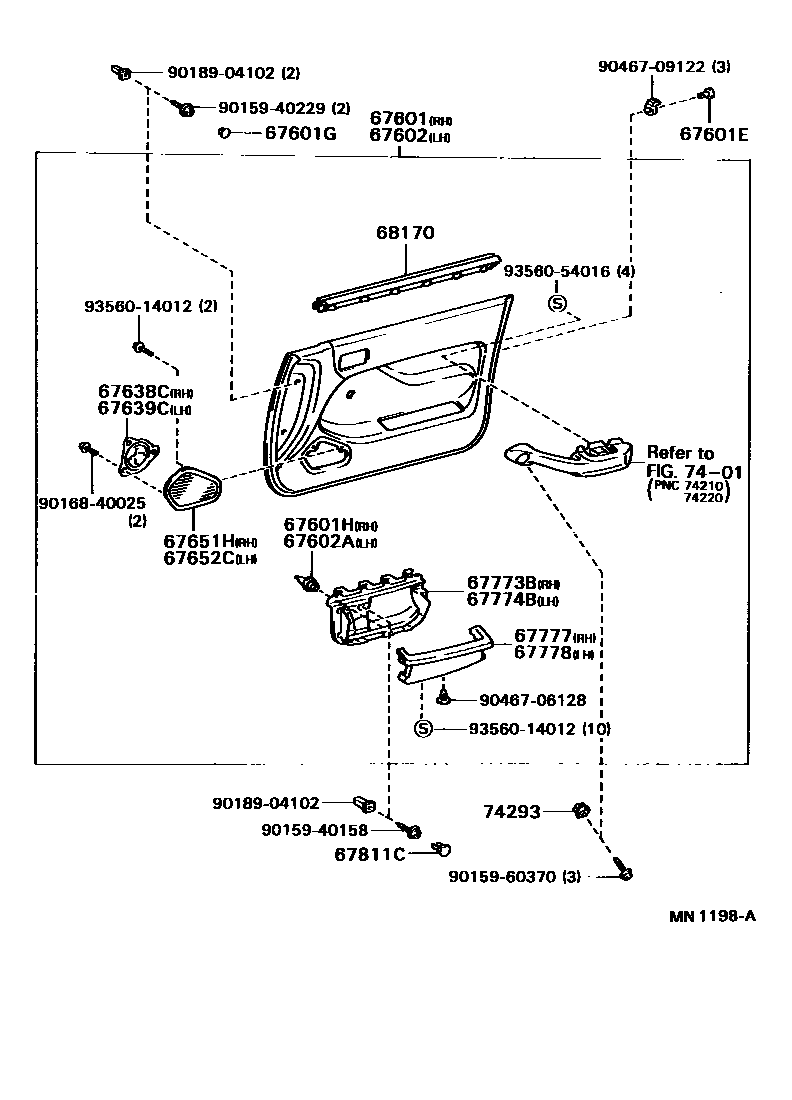

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MN1198A
前门板和前门玻璃 — MN1198A (199106 – 999999)

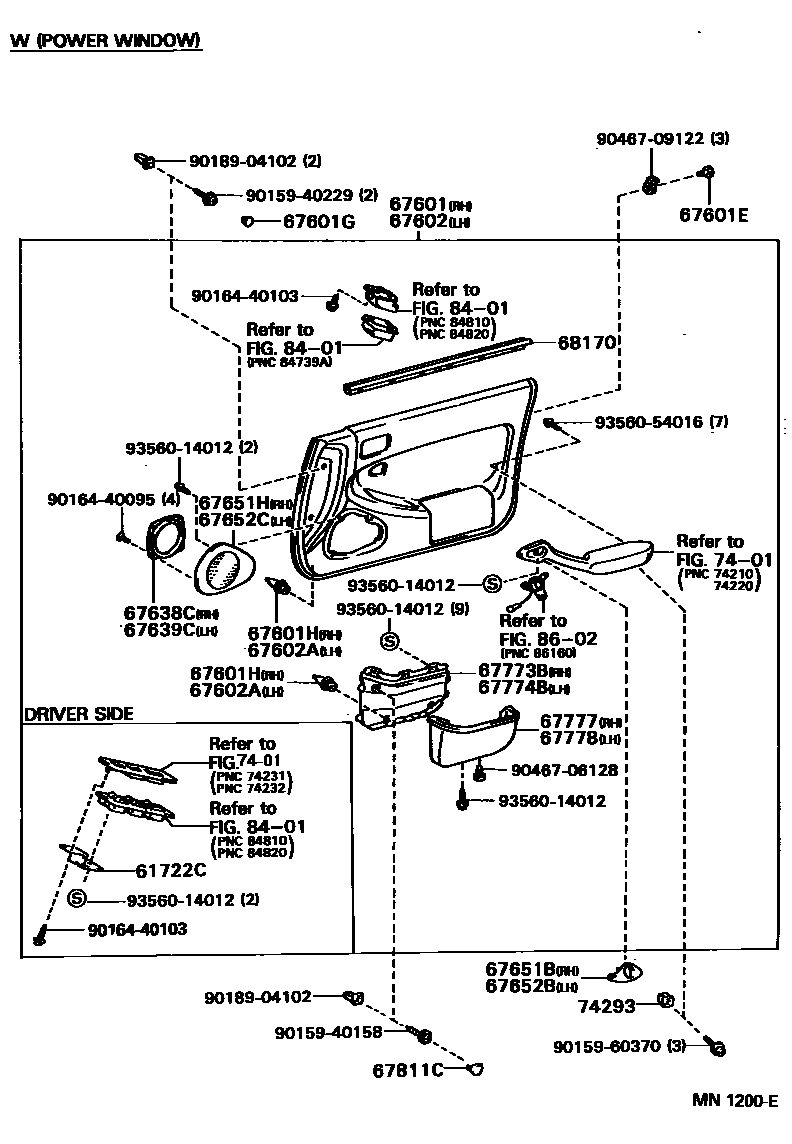

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MN1200E
前门板和前门玻璃 — MN1200E (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
61722Cswitch board bracket61722-32010
67001Right front door panel sub-assembly67001-33011 · 67001-33012
67002Left front door panel sub-assembly67002-33011 · 67002-33012
67111Outer right front door panel67111-32090 · 67111-32091
67112Outer left front door panel67112-32090 · 67112-32091
67401FRight front door front lower door frame sub-assembly67401-32110
67402FLeft front door front lower door frame sub-assembly67402-32110
67403FRight front door rear lower door frame sub-assembly67403-32060
67404FLeft front door rear lower door frame sub-assembly67404-32060
67411Right front door window upper frame67411-32040
67412ALeft front door upper window frame67412-32040
67491ARight front door lower door frame bracket decorative strip67491-32100 · 67491-33010
67492ALeft front door lower door frame bracket decorative strip67492-32100 · 67492-33010
67499Front door lower door frame bracket trim strip fixing67499-30020
67601HRight door trim panel fixing67771-32140
67602ALeft door trim panel fixing67771-32140
67638CRight front door decorative panel No. 264397-33010 · 64397-33020
67639CDecorative panel No. 2, left front door64397-33020 · 64398-33010
67831Right front door access hole cover67831-32080 · 67831-32100 · 67831-32130 · 67831-33020
67832Left front door access hole cover67832-32060 · 67832-32080 · 67832-32110 · 67832-33020
67846BRear door access hole auxiliary hole cover67845-32010
67861Right front door seal67861-32130
67862Left front door seal67862-32130
67867CRight front door seal strip fixing67867-12150 · 67868-22020
67868CLeft front door seal strip fixing67867-12150 · 67868-22020
68101Right front door glass sub-assembly68101-32080
68102Left front door glass sub-assembly68102-32080
68141CRight front door glass lift channel68141-32090
68151CLeft front door glass lift channel68151-32030
68170Front door glass inner sealing strip assembly68170-33020 · 68220-33020
68610Front door opening limiter assembly68610-32060 · 68610-33011 · 68620-32040 · 68620-33011
68621ARight front door opening limiter cover68621-32010
68622Left front door opening limiter cover68622-32010
74293No. 1 front door armrest panel74293-32010
