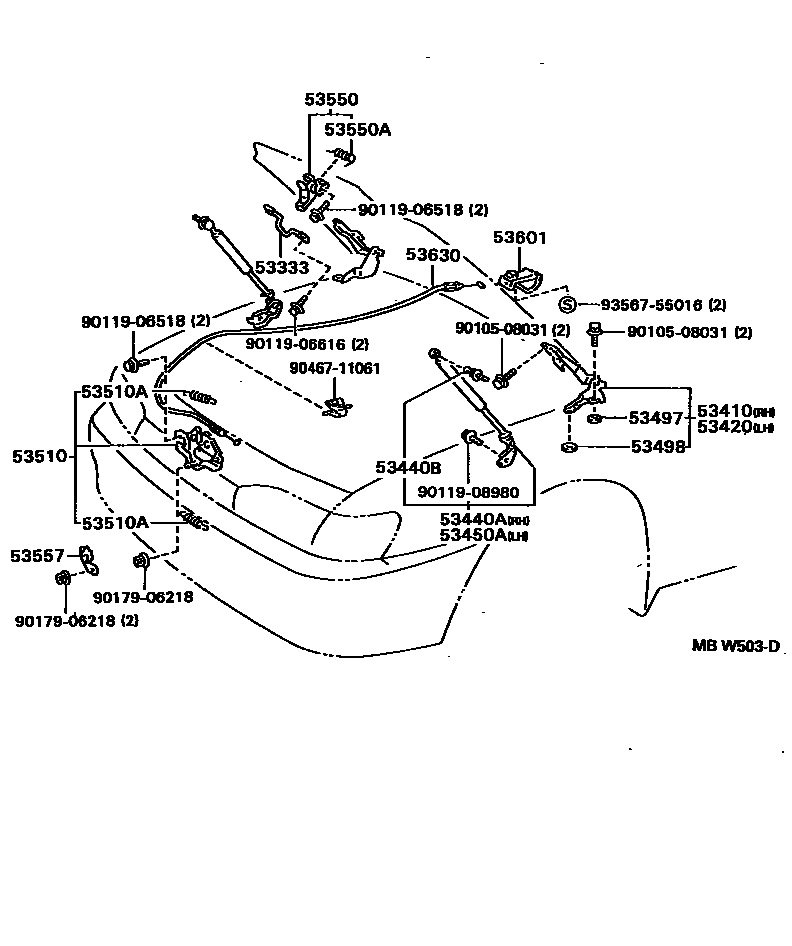

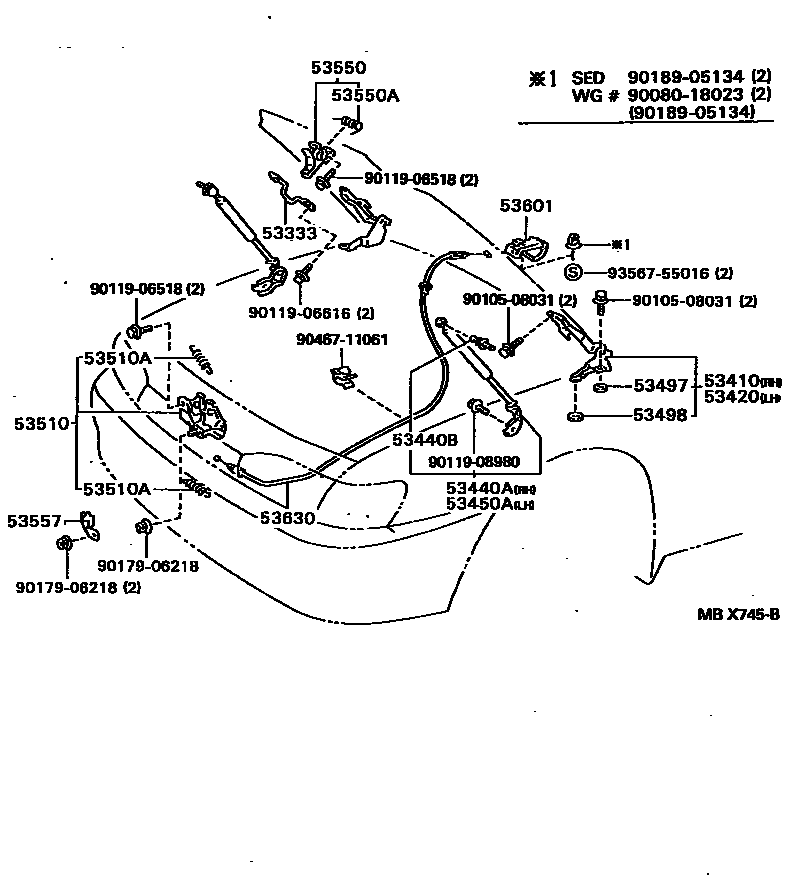

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53333 | engine cover latch | 53333-33010 |
| 53410 | Engine cover right hinge assembly | 53410-33010 |
| 53420 | Engine cover left hinge assembly | 53420-33010 |
| 53440A | Engine cover right support rod assembly | 53440-09010 · 53440-09011 · 53440-39055 |
| 53440B | No. 1 engine cover support rod bolt | 68961-23010 |
| 53450A | Engine cover left support rod assembly | 53450-09010 · 53450-09011 · 53450-39055 |
| 53497 | No. 1 engine cover hinge gasket | 53497-17030 · 53497-50010 |
| 53498 | No. 2 engine cover hinge gasket | 53498-17010 · 53498-50010 |
| 53510 | Engine cover lock assembly | 53510-33050 · 53510-50020 · 53510-50040 |
| 53510A | Tension spring (for hood lock) | 90506-09050 · 90506-18068 |
| 53550 | Engine cover auxiliary buckle assembly | 53550-33010 · 53550-33011 |
| 53550A | Torsion spring (for hood latch) | 90508-18096 |
| 53557 | Engine cover auxiliary buckle | 53557-33010 |
| 53630 | Engine hood lock control cable assembly | 53630-33010 · 53630-33020 |
