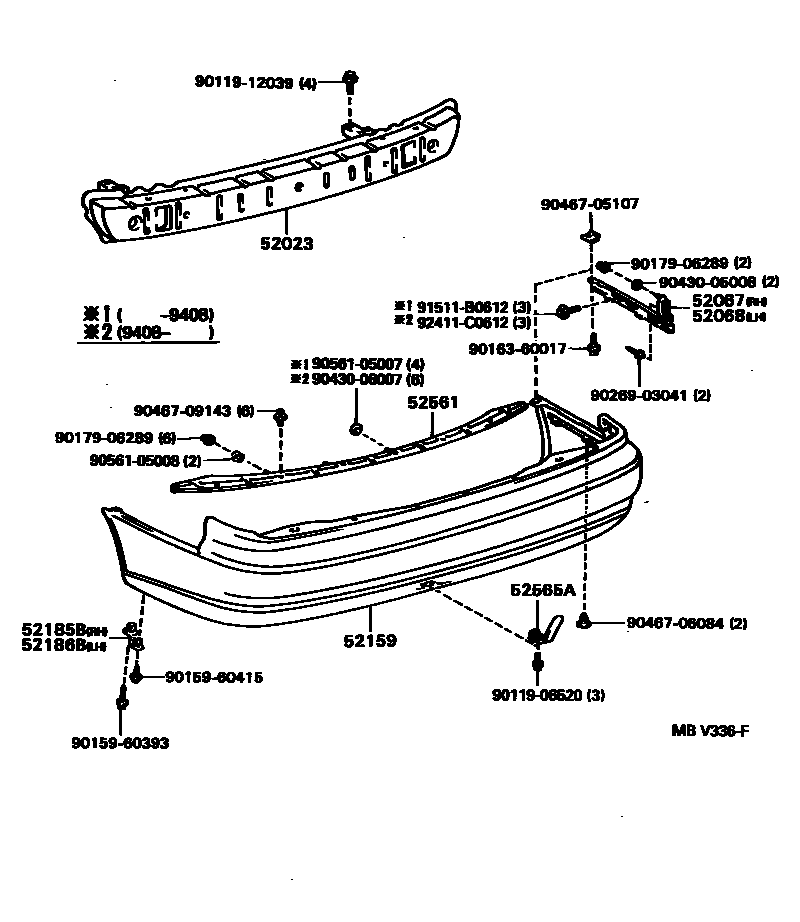

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-33020 |
| 52067 | Rear bumper right side bracket sub-assembly | 52067-33030 |
| 52068 | Rear bumper left bracket sub-assembly | 52068-33030 |
| 52159 | rear bumper cover | 52159-33902 |
| 52185B | Installation support on the right side of the rear bumper | 52185-33010 |
| 52186B | Rear bumper left side mounting support | 52186-33010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-33020 |
| 52565A | Rear bumper lower fixing bracket | 52565-32050 |
