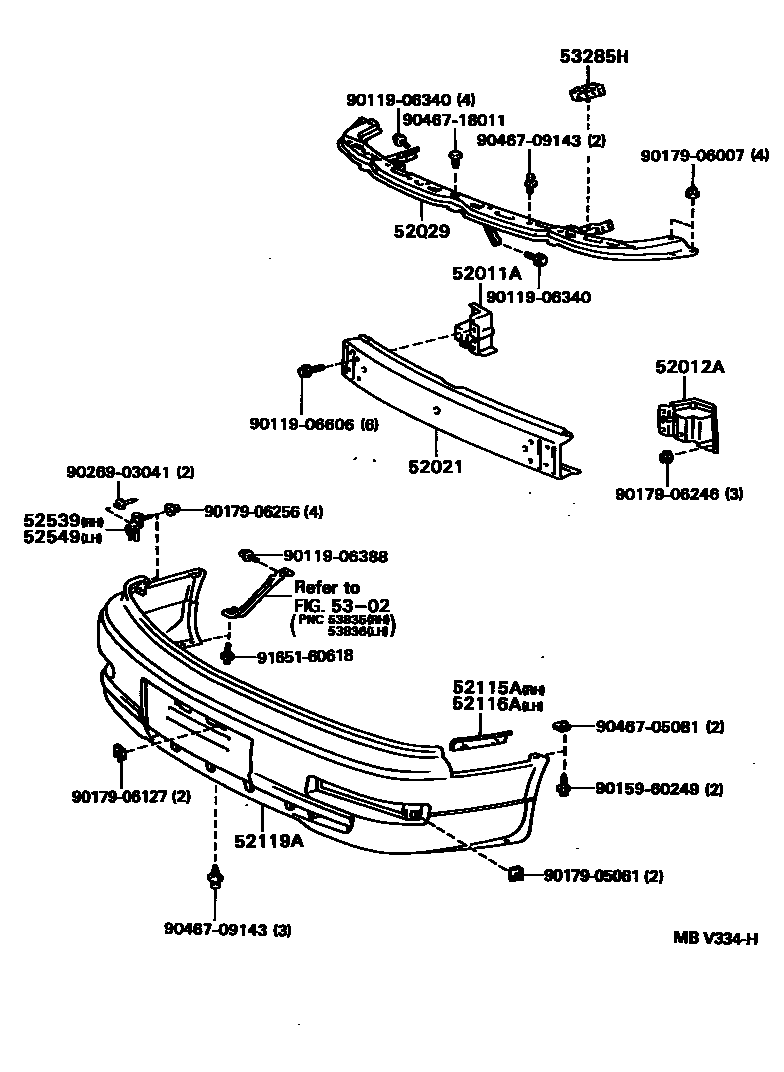

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-33010 |
| 52012A | Front bumper left arm sub-assembly | 52012-33010 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-33010 · 52021-33011 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-33030 |
| 52115A | Front bumper right side bracket | 52115-33010 |
| 52116A | Front bumper left bracket | 52116-33010 |
| 52119A | front bumper cover | 52119-33901 · 52119-33902 |
| 52539 | Front bumper No. 3 right side fixing bracket | 52539-33020 |
| 52549 | Front bumper No. 3 left side fixing bracket | 52549-33020 |
| 53285H | Radiator side 1 air seal | 53285-33010 |
