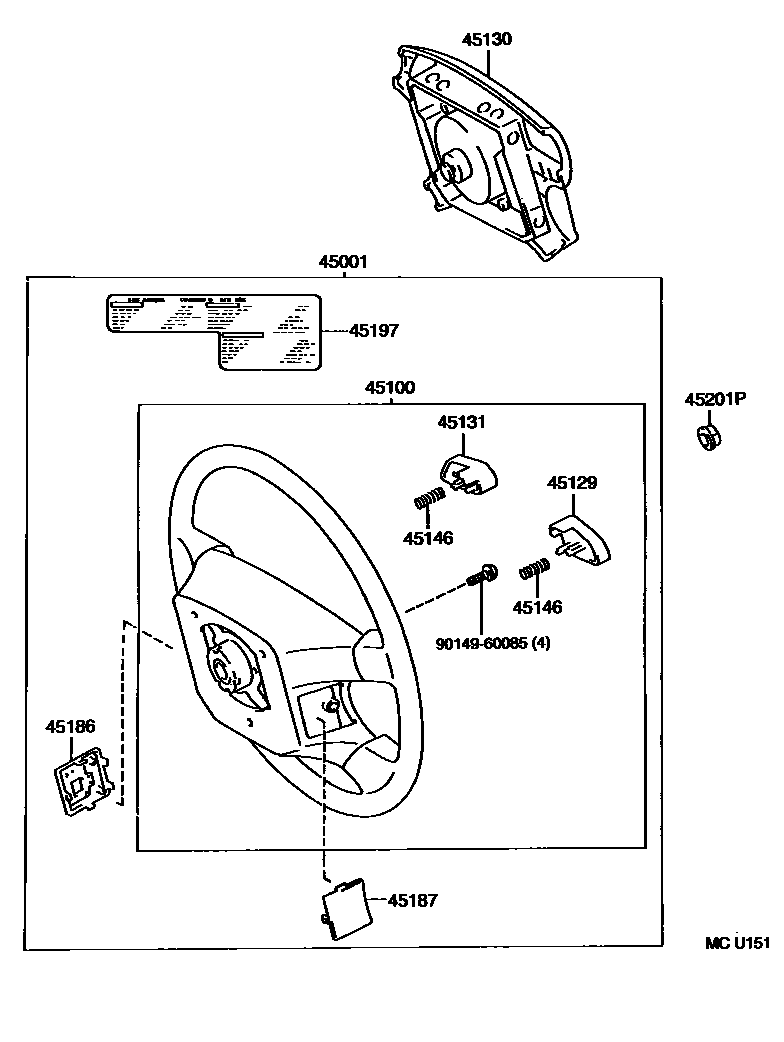

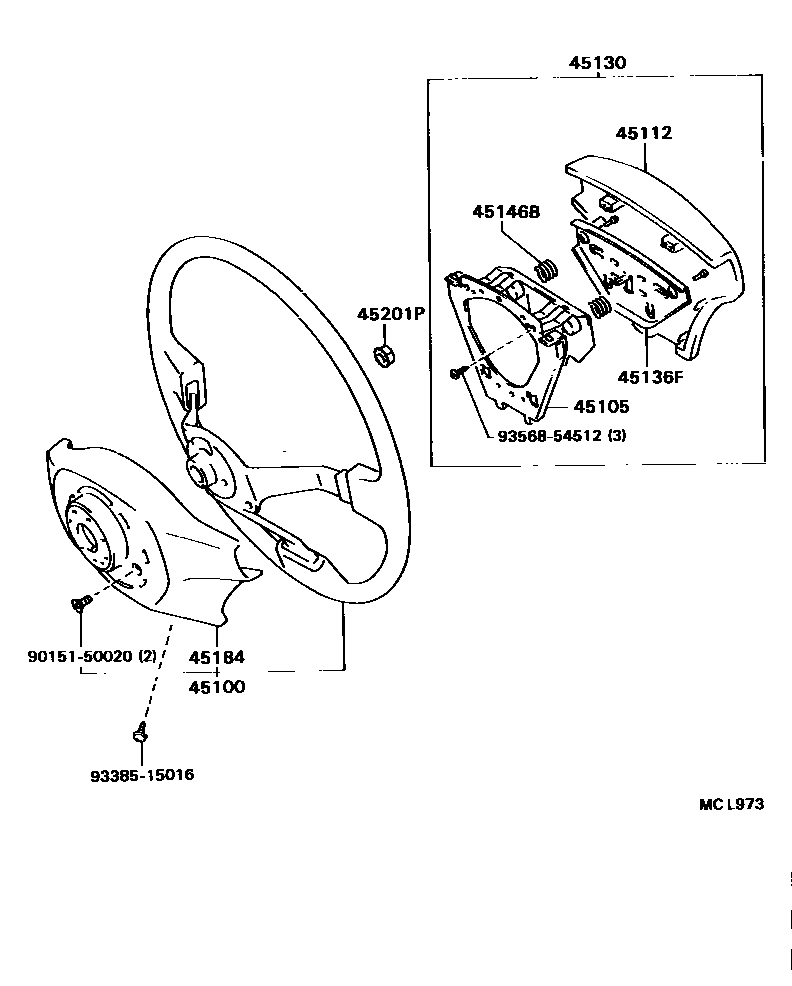

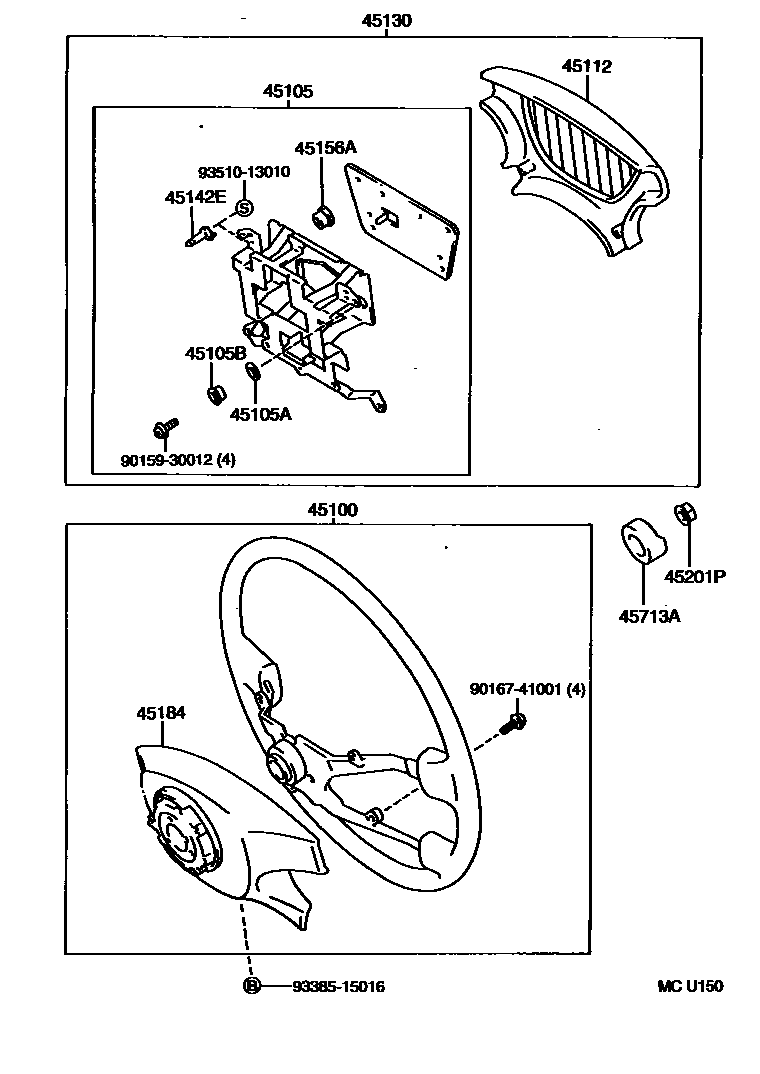

Toyota CAMRY Steering Wheel — Figure 4504
Toyota CAMRY EPC diagram 4504, Steering Wheel, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45001 | Steering wheel air bag assembly | 45001-33010 |
| 45100 | Steering wheel assembly | 45100-33210 · 45100-33220 |
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-32060 · 45105-33020 |
| 45105A | Cushion pad (for horn button contact piece) | 90540-08014 |
| 45105B | Spacer (for horn button contact piece) | 90561-03001 |
| 45130 | Speaker button assembly | 45130-33220 |
| 45136F | No. 1 horn button contact piece | 45136-32110 |
| 45142E | Speaker contacts | 45142-20060 |
| 45146 | Horn button contact spring | 45146-20230 |
| 45146B | No. 1 horn button contact spring | 45146-20140 |
| 45156A | Speaker contact spring holder | 45156-16010 |
| 45187 | No. 3 steering wheel lower cover | 45187-20030 |
| 45197 | air bag warning label | 45197-12070 |
| 45201P | Steering wheel fixing nut | 90179-12071 · 90179-12086 |
| 45713A | steering damper | 45713-33010 |
