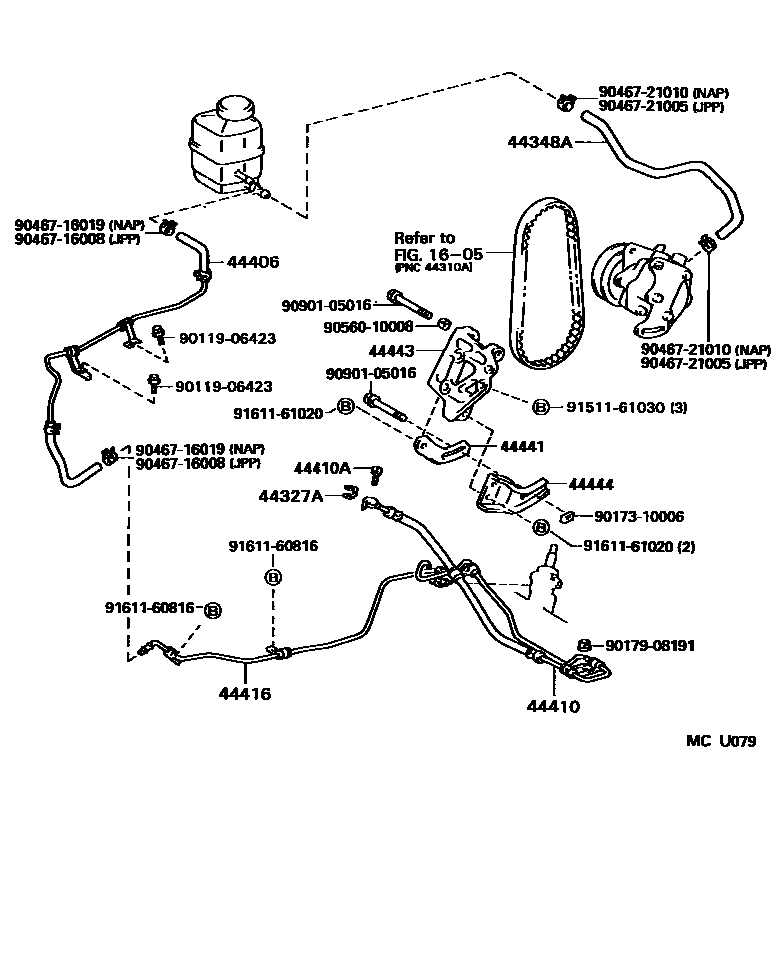

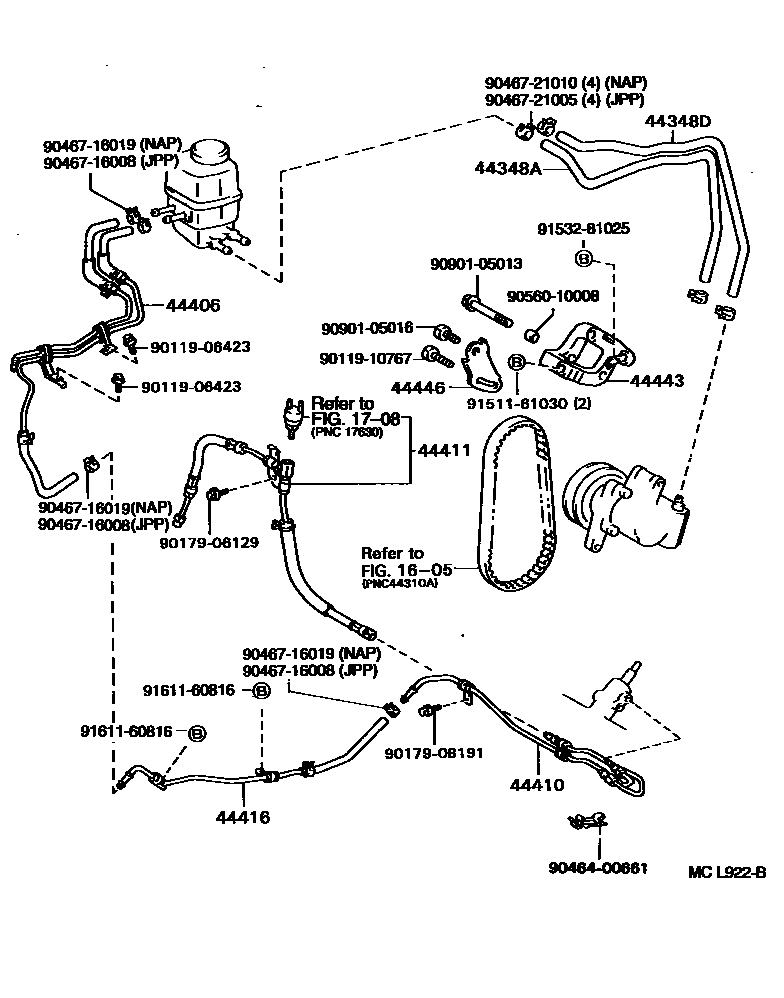

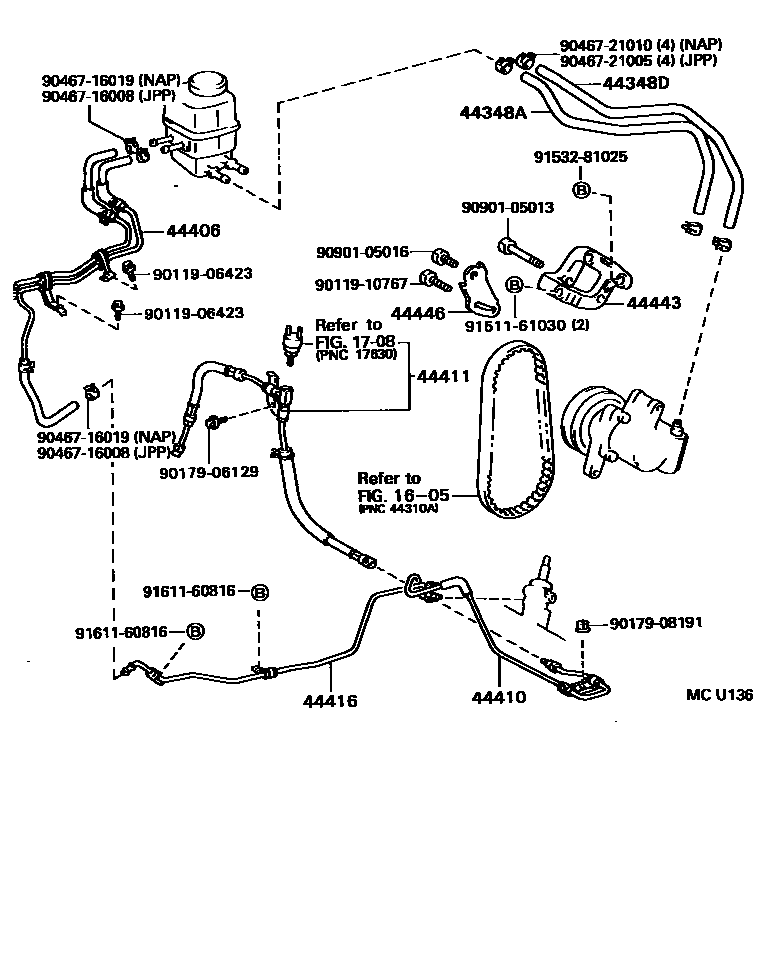

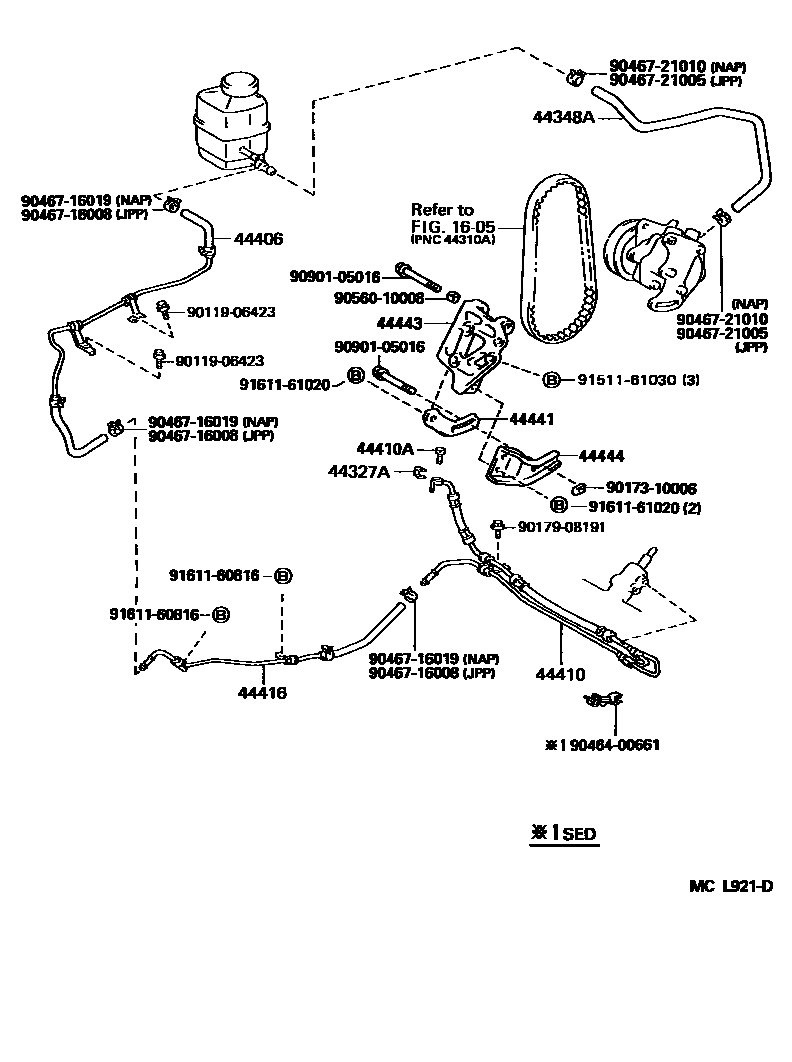

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-33010 · 44348-33030 · 44348-33051 · 44348-33061 · 44348-33070 · 44348-33080 |
| 44348D | No. 2 hose (tank to pump) | 44348-33020 · 44348-33040 |
| 44406 | Oil return pipe sub-assembly | 44406-33010 · 44406-33011 · 44406-33012 · 44406-33030 |
| 44410 | Pressure supply pipe assembly | 44410-33010 · 44410-33030 · 44410-33041 · 44410-33051 · 44410-33090 · 44410-33100 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 · 96341-41603 |
| 44411 | pressure supply hose | 44411-33010 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-33010 · 44416-33020 · 44416-33021 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-20050 · 44443-33010 · 44443-33020 |
| 44444 | Pump back stay | 44444-20030 |
| 44446 | Adjust the stand | 44446-32020 |
