Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

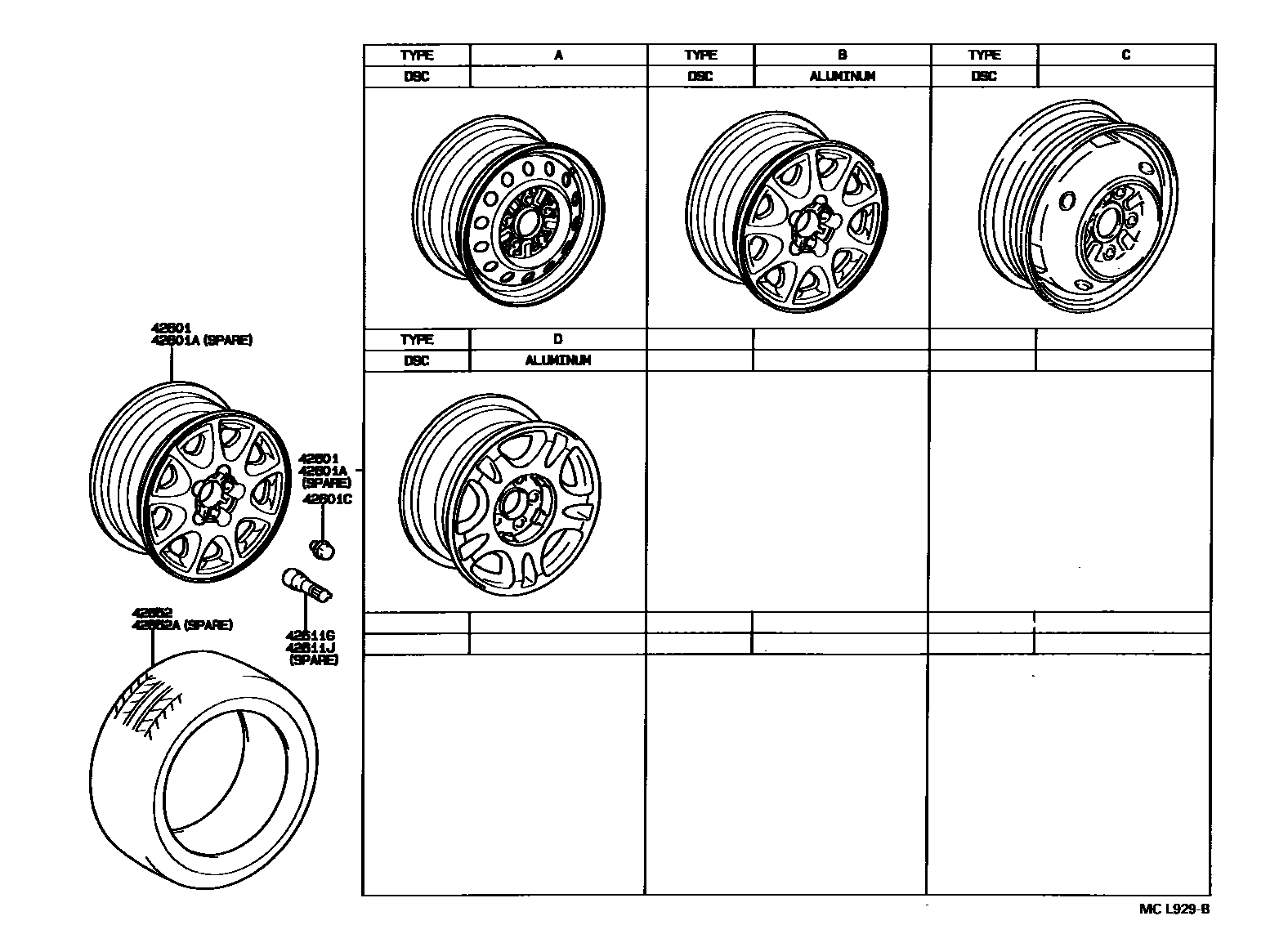

| 42601 | spoke wheel | 42611-32290 · 42611-33020 · 42611-33050 |
| 42601A | Spoke wheel (for spare tire) | 42611-32290 · 42611-33020 · 42611-33050 · 42611-33060 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01058 · 90942-01062 |

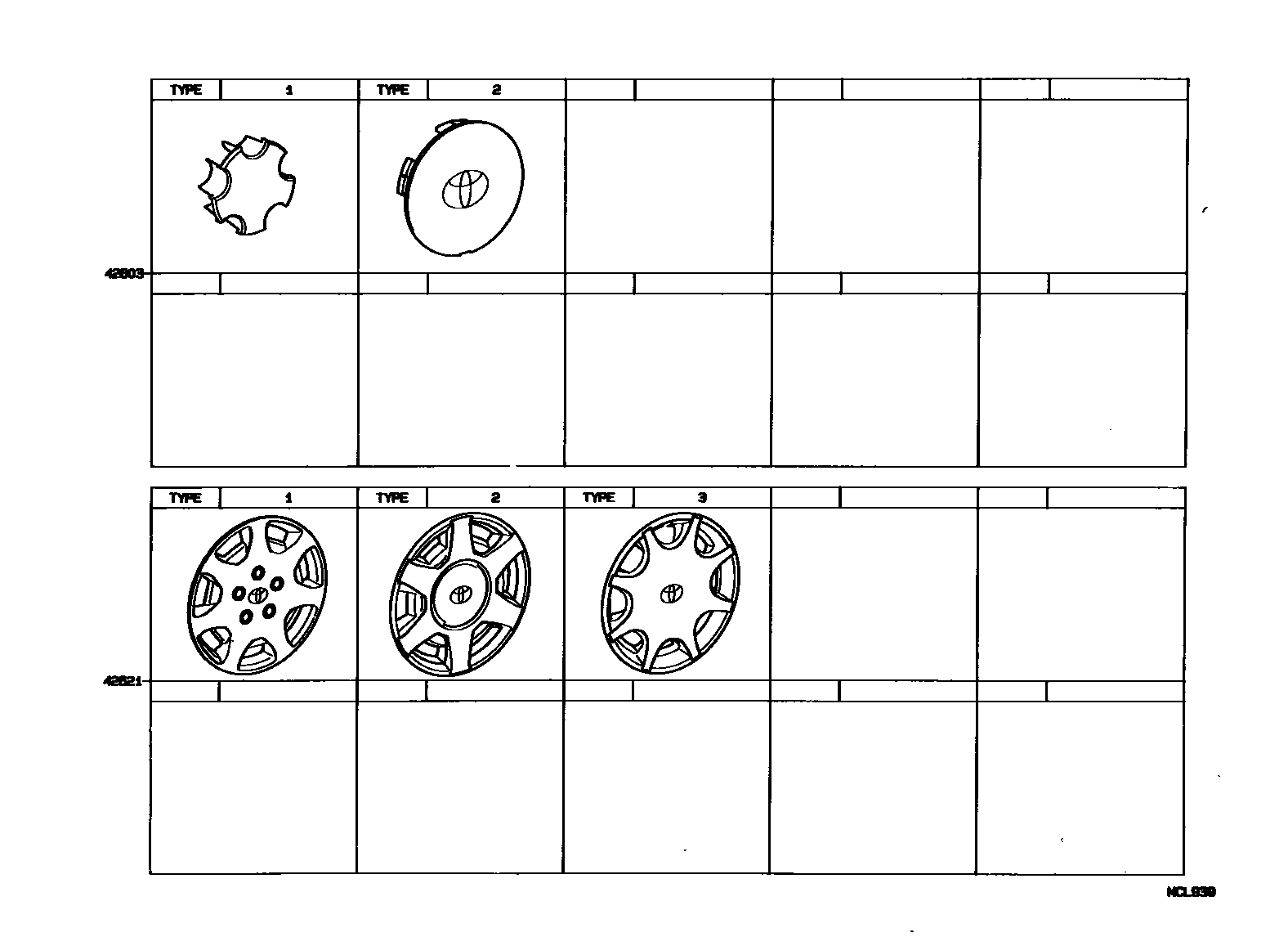

| 42603 | Wheel hub decorative parts sub-assembly | 42603-32150 · 42603-32160 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42621-06010 · 42621-32101 · 42621-32110 · 42621-32150 · 42621-33010 · 42621-33011 |
| 42652 | tires | 42652-06090 · 42652-06100 · 42652-33010 · 42652-33040 · 42652-33080 |
| 42652A | Tire (for Spare Wheel) | 42652-06090 · 42652-06100 · 42652-33010 · 42652-33040 · 42652-33080 |
