Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

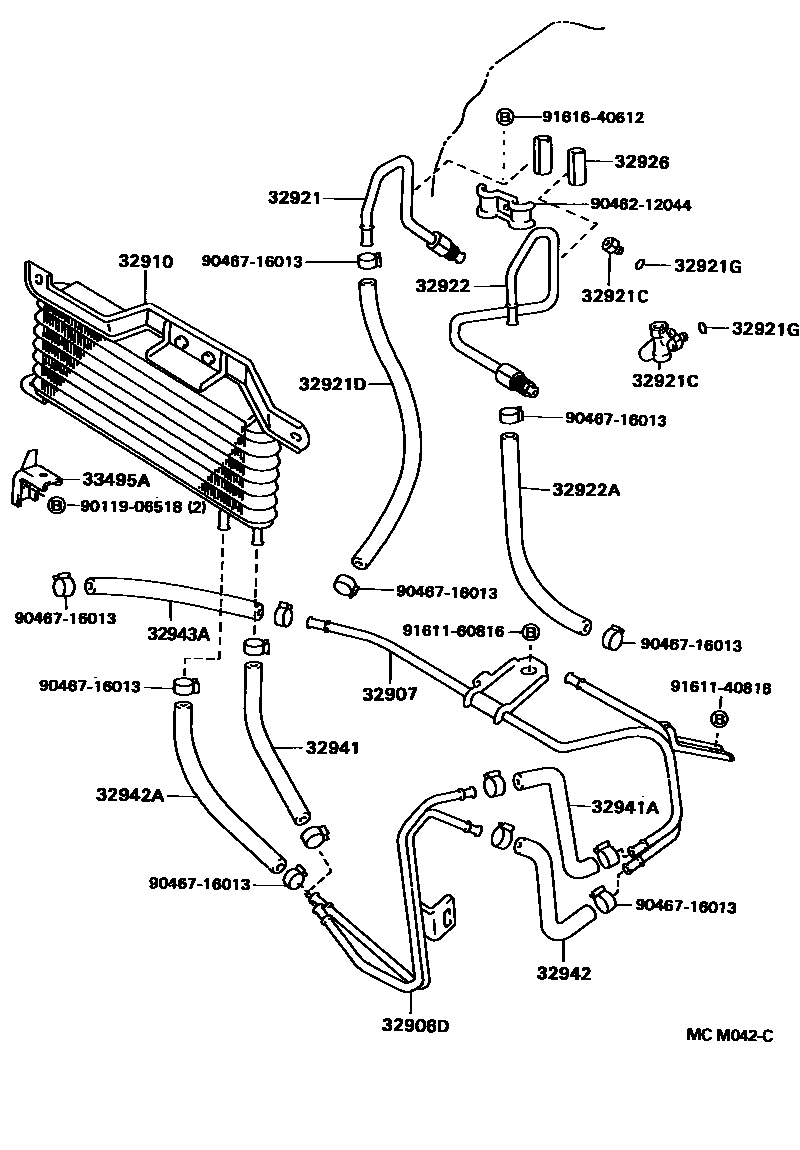

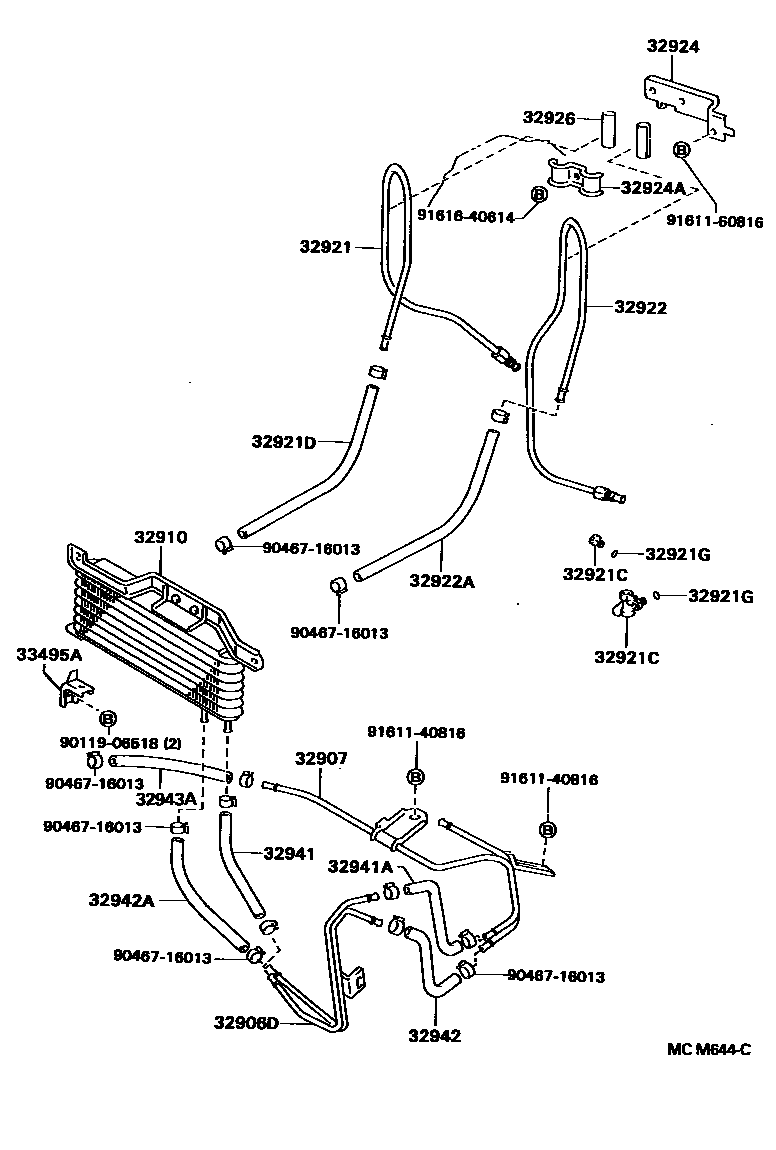

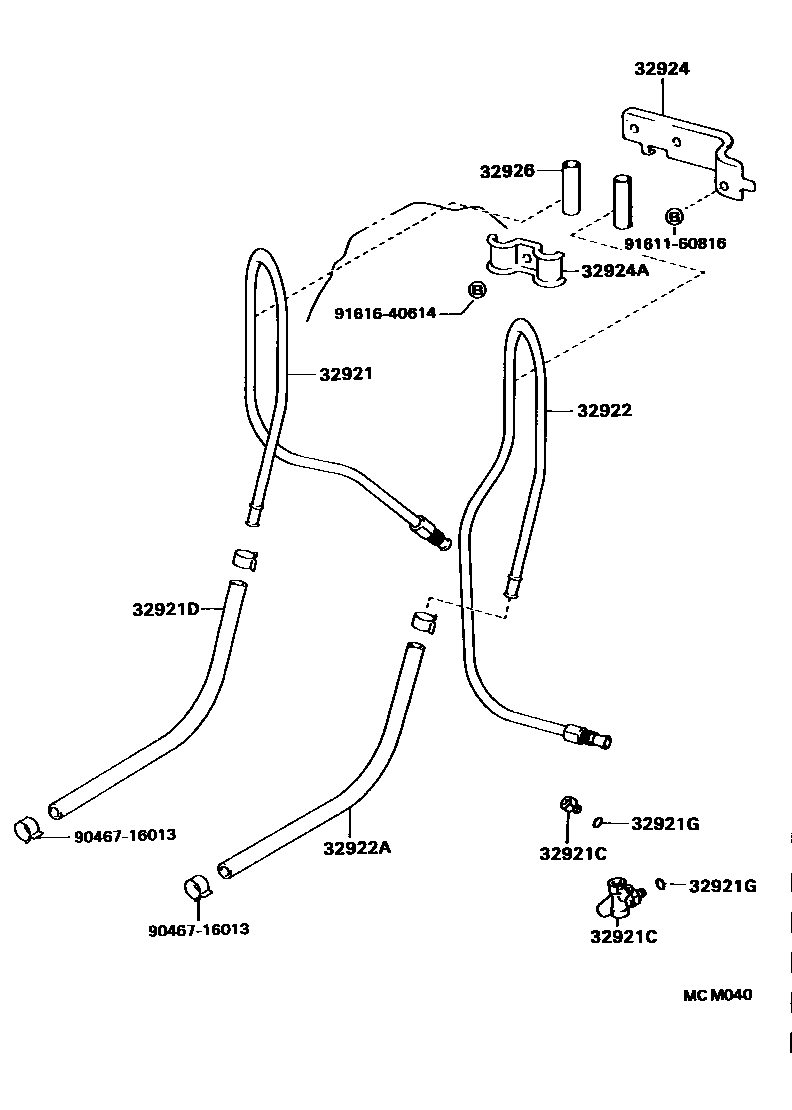

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32906D | No. 2 transmission oil cooler pipe assembly | 32907-33010 · 32907-33011 |
| 32907 | No. 2 transmission oil cooler oil outlet pipe sub-assembly | 32907-33020 · 32907-33060 |
| 32910 | Oil cooler assembly | 32910-33010 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-33010 · 32921-33030 |
| 32921C | Fitting (for transmission oil cooler tube) | 32901-32060 · 90404-16021 · 90404-16031 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-17106 · 90445-17112 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-33010 · 32922-33030 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17096 · 90445-17104 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32923-20111 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-12044 · 90462-12074 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 90445-17069 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32943-33030 · 32943-33031 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-33040 · 32943-33041 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90445-17110 |
| 32943A | No. 2 transmission oil cooler hose | 90445-17100 |
| 33495A | Automatic transmission oil cooler pipe clamp | 33495-33020 |
