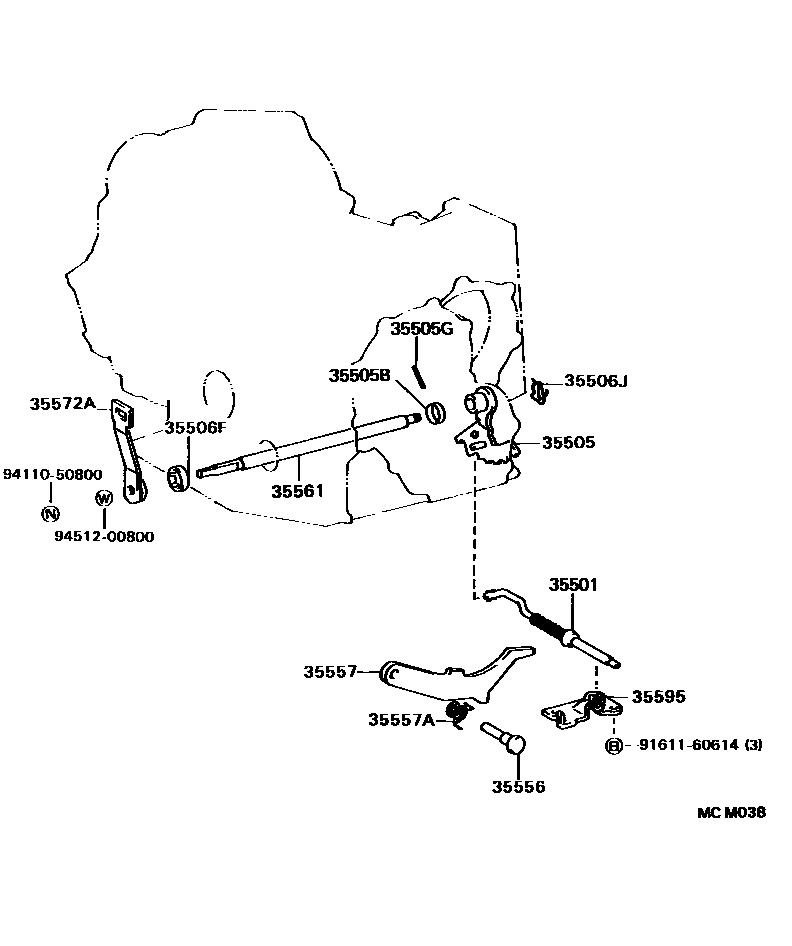

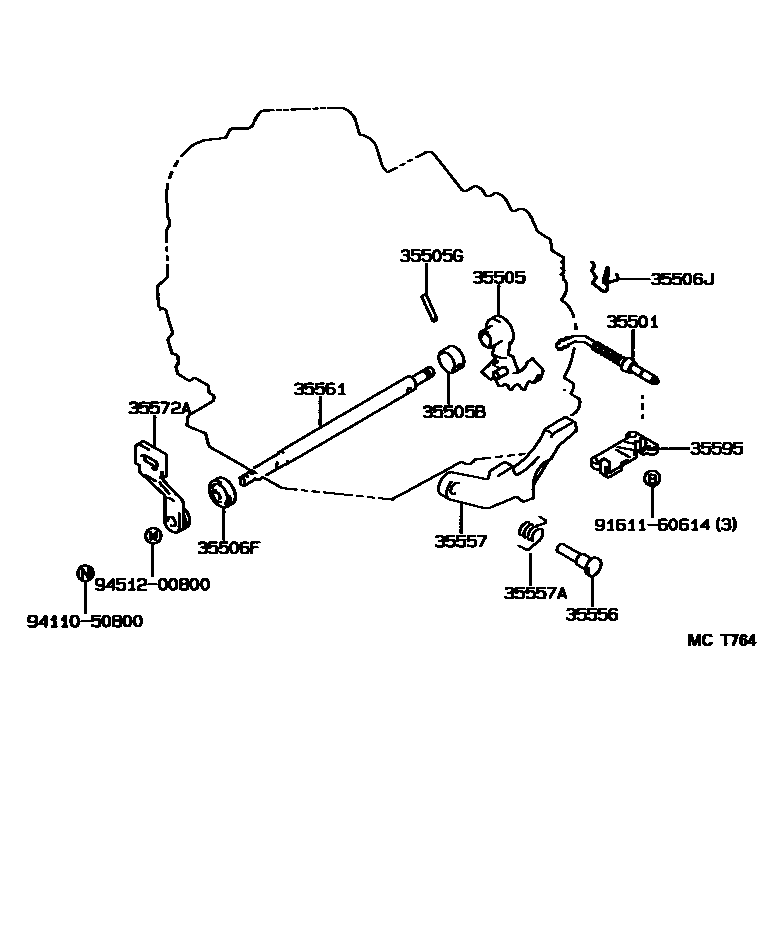

Toyota CAMRY 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota CAMRY EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-32030 · 35501-32040 |
| 35505 | Manual valve stem sub-assembly | 35505-32040 |
| 35505B | Spacer (for manual valve stem) | 90560-20006 |
| 35505G | Slotted spring pin (for manual valve stem) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35506J | Stop spring (for manual valve stem shaft) | 90524-09001 |

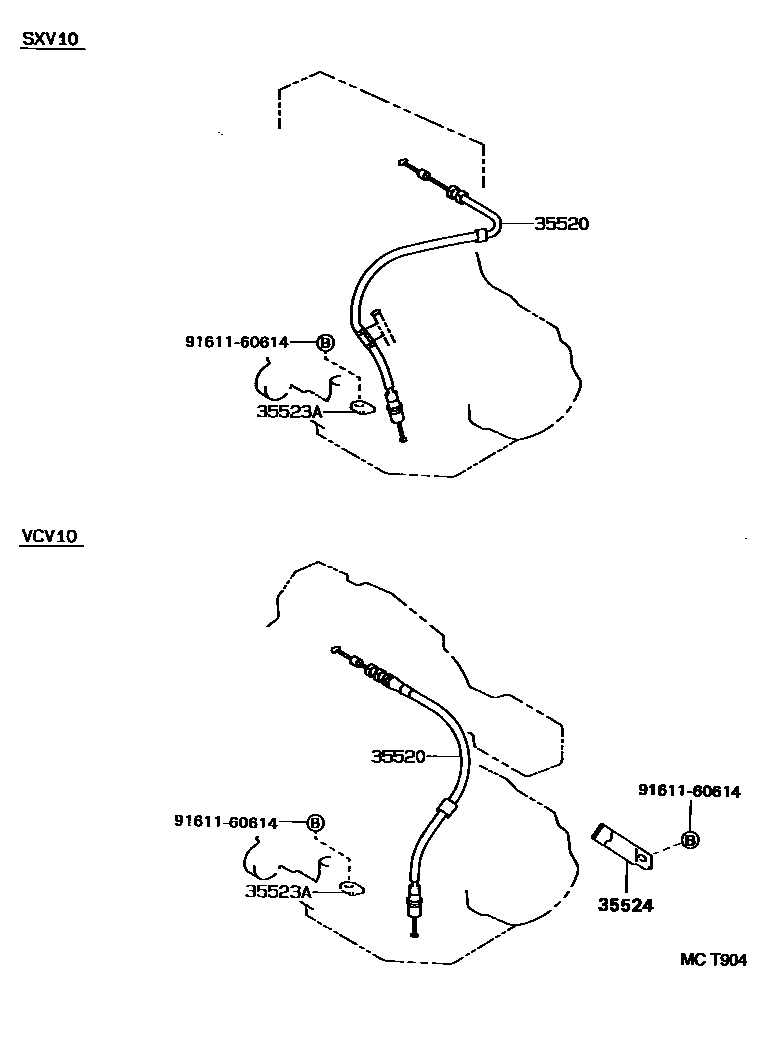

| 35520 | Throttle valve cable assembly | 35520-33010 · 35520-33030 |
| 35523A | No. 1 throttle valve cable clamp | 35523-32010 |
| 35524 | No. 2 throttle valve cable clamp | 35523-33020 · 35523-33021 |
| 35556 | Parking lock pawl shaft | 35556-32010 · 35556-32020 |
| 35557 | Parking pawl | 35557-32020 · 35557-32030 · 35557-32031 |
| 35557A | Torsion spring (for parking pawl) | 90508-26047 · 90508-33001 · 90949-03003 · 90949-03043 |
| 35561 | Manual valve stem shaft | 35561-32010 |
| 35572A | transmission control lever | 35572-33010 |
| 35595 | Parking lock pawl bracket | 35595-32010 · 35595-32020 |
