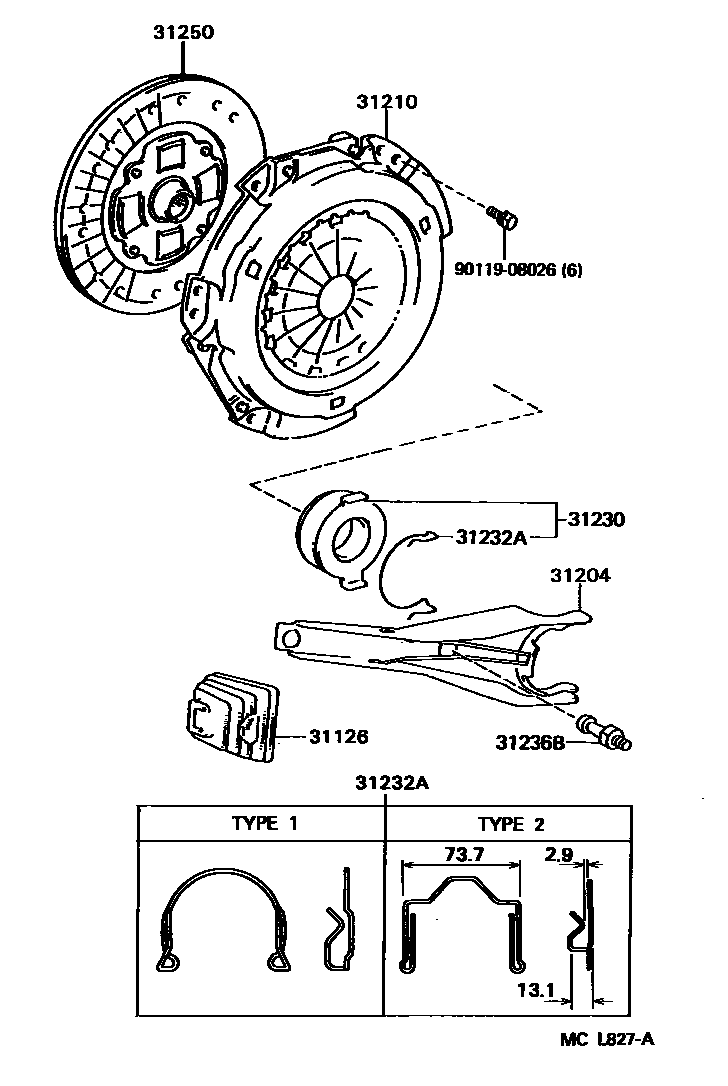

Toyota CAMRY 离合器和分离叉 — Figure 3101
Toyota CAMRY EPC diagram 3101, 离合器和分离叉, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20080 · 31126-32010 |
| 31204 | Clutch release fork assembly | 31204-20100 · 31204-20110 · 31204-20111 |
| 31210 | Clutch cover assembly | 31210-32130 · 31210-33010 · 31210-33020 · 31210-33021 |
| 31230 | Clutch release bearing assembly | 31230-20190 · 31230-32060 |
| 31232A | Release bearing hub clip | 31232-20020 · 31232-20030 · 31232-20031 · 31232-32050 |
| 31236B | Split fork bracket | 31236-20070 · 31236-32010 |
| 31250 | Clutch disc assembly | 31250-17040 · 31250-20141 · 31250-20171 · 31250-20172 · 31250-20173 · 31250-20250 · 31250-33010 · 31250-33011 |
