Toyota CAMRY V-Belt — Figure 1605

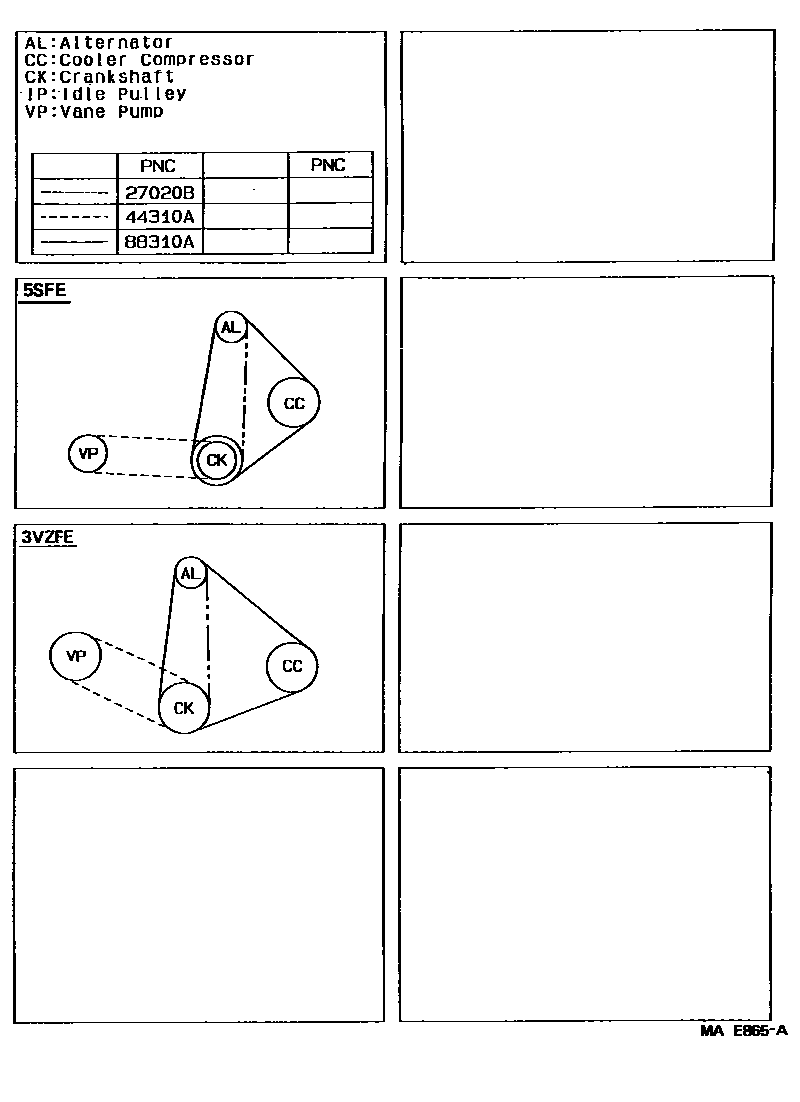

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020B | V-belt (for generator) | 90916-02295 · 90916-02355 · 90916-02356 · 99366-50940 · 99366-80940 |
| 44310A | V-belt (for vane pump) | 90916-02205 · 90916-02318 · 90916-02352 · 99363-80760 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02373 · 90916-02374 · 99365-71110 · 99365-81110 · 99366-21050 |
