Toyota CAMRY Timing Gear Cover & Rear End Plate — Figure 1106

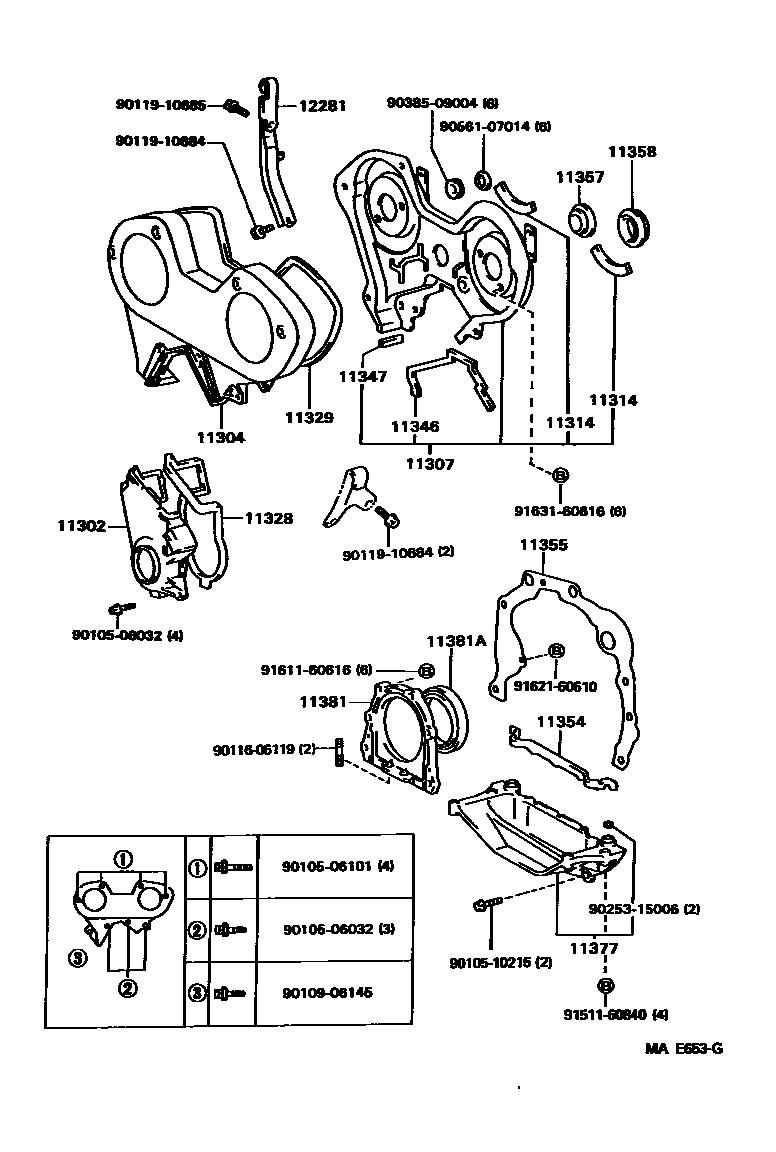

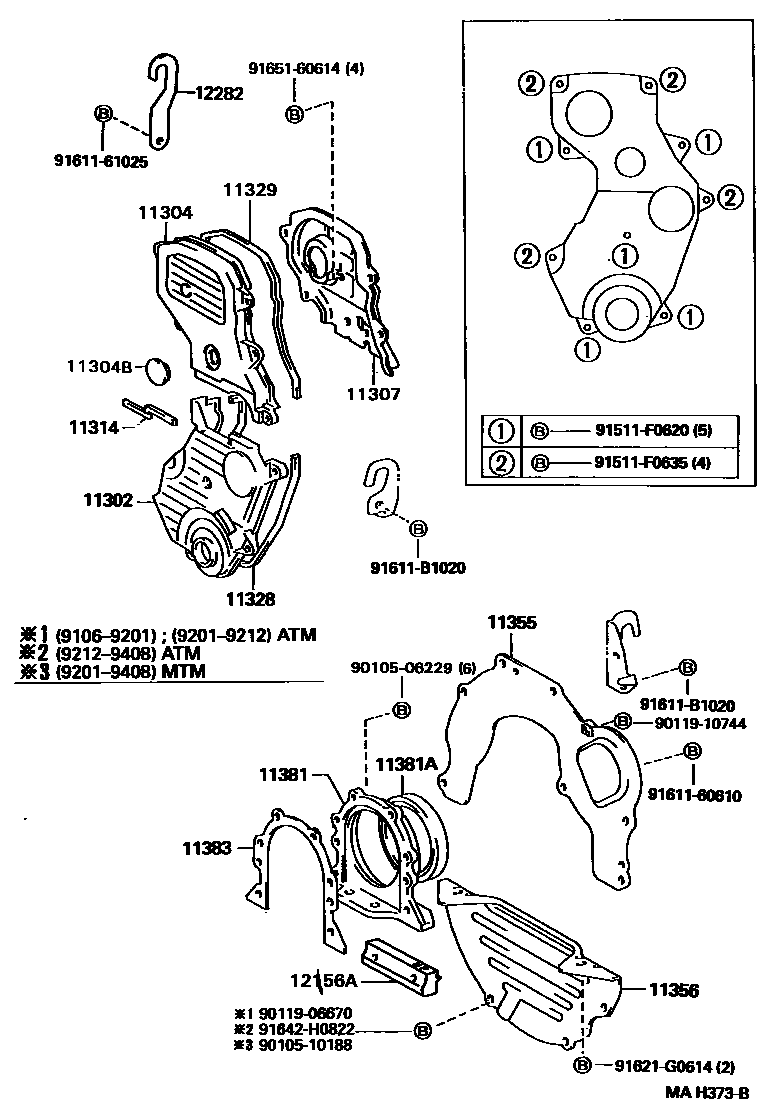

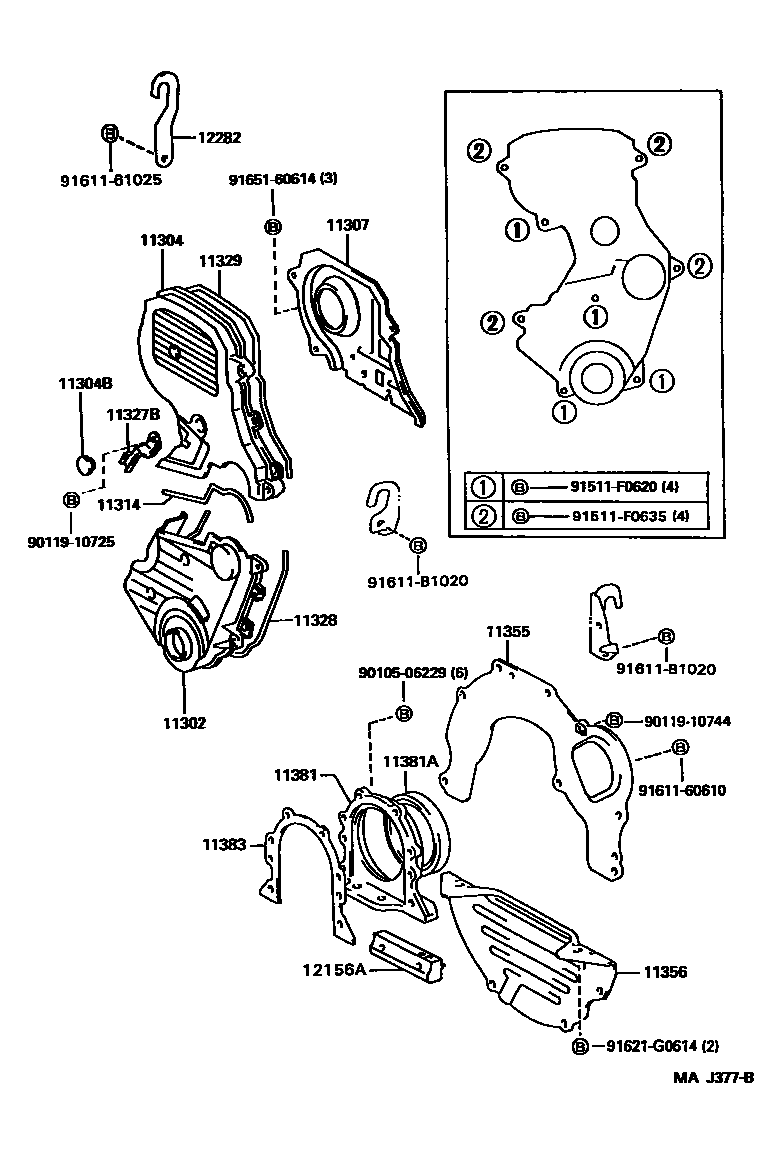

Toyota CAMRY EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-62020 · 11302-74011 · 11302-74040 |
| 11304 | No. 2 timing chain or timing belt cover | 11303-62030 · 11303-74030 · 11303-74050 |
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01489 |
| 11307 | No. 3 timing belt cover sub-assembly | 11304-62030 · 11304-74030 · 11304-74040 |
| 11314 | No. 2 timing chain cover gasket | 11319-03020 · 11319-62020 · 11319-63010 · 11319-74030 |
| 11327B | Timing belt cover bracket | 11327-74010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-03020 · 11328-62020 · 11328-74010 · 11328-74060 |
| 11329 | Timing gear rear cover gasket | 11329-03020 · 11329-62020 · 11329-74050 · 11329-74080 |
| 11346 | No. 4 timing belt cover gasket | 11346-62020 |
| 11347 | No. 5 timing belt cover gasket | 11347-62010 |
| 11354 | Flywheel housing dust seal | 11354-62030 |
| 11355 | rear end plate | 11355-62010 · 11355-74010 |
| 11356 | No. 2 rear end plate | 11356-63031 · 11356-74030 · 11356-74040 |
| 11357 | No. 6 timing belt cover gasket | 11357-62010 |
| 11358 | No. 7 timing belt cover gasket | 11358-62010 |
| 11377 | Rear end plate reinforcement | 11377-62010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-62010 · 11381-63012 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85006 · 90311-85007 · 90311-92005 |
| 11383 | Engine rear oil seal seat gasket | 11383-63011 · 11383-74020 · 11383-74021 |
| 12156A | Oil pan vibration isolation pad | 12156-74010 · 12156-74011 |
| 12281 | Engine No. 1 hanger | 12281-62030 |
| 12282 | ENGINE HANGER, NO.2 | 12282-74030 |
