Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

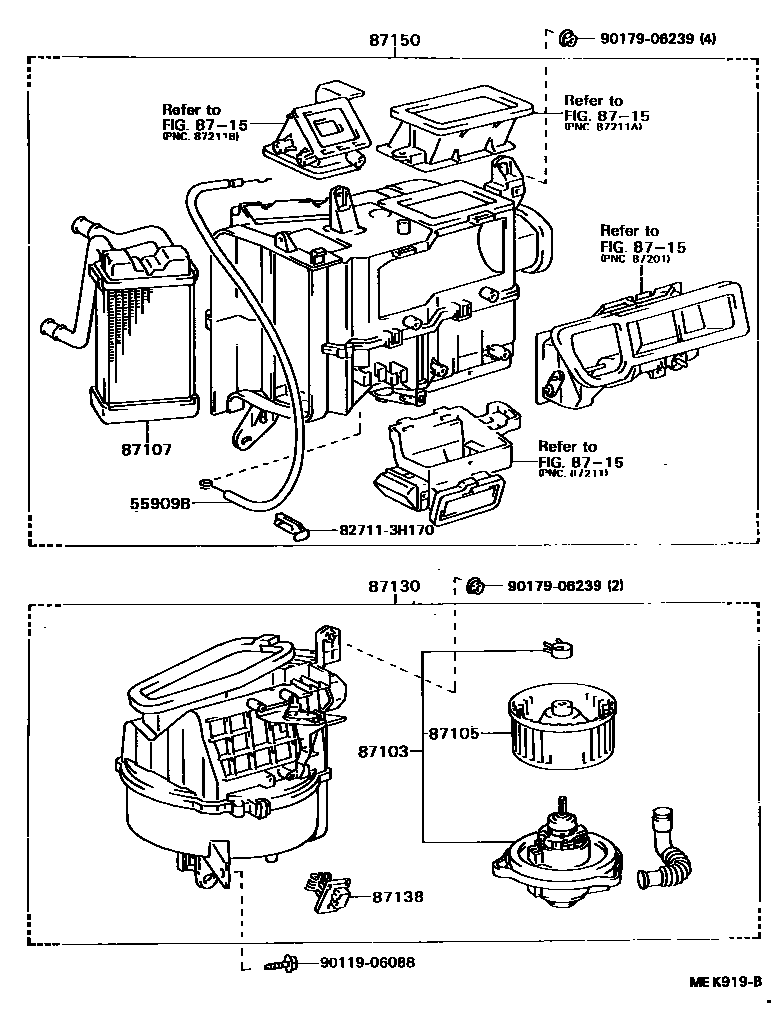

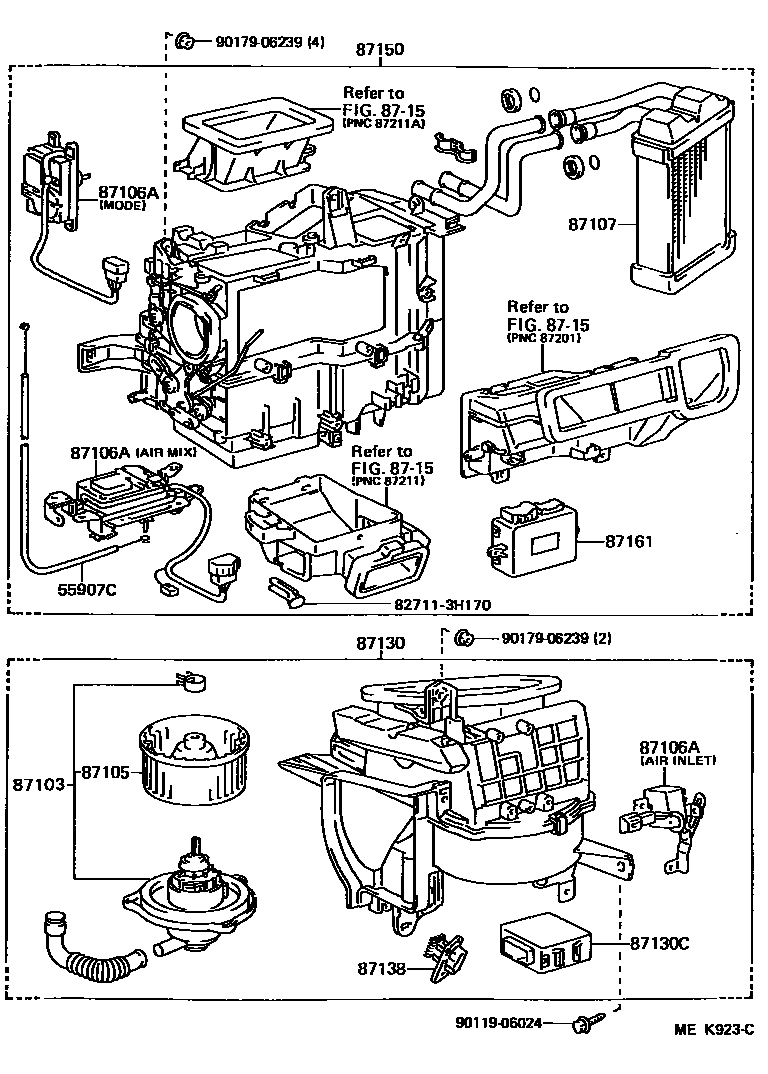

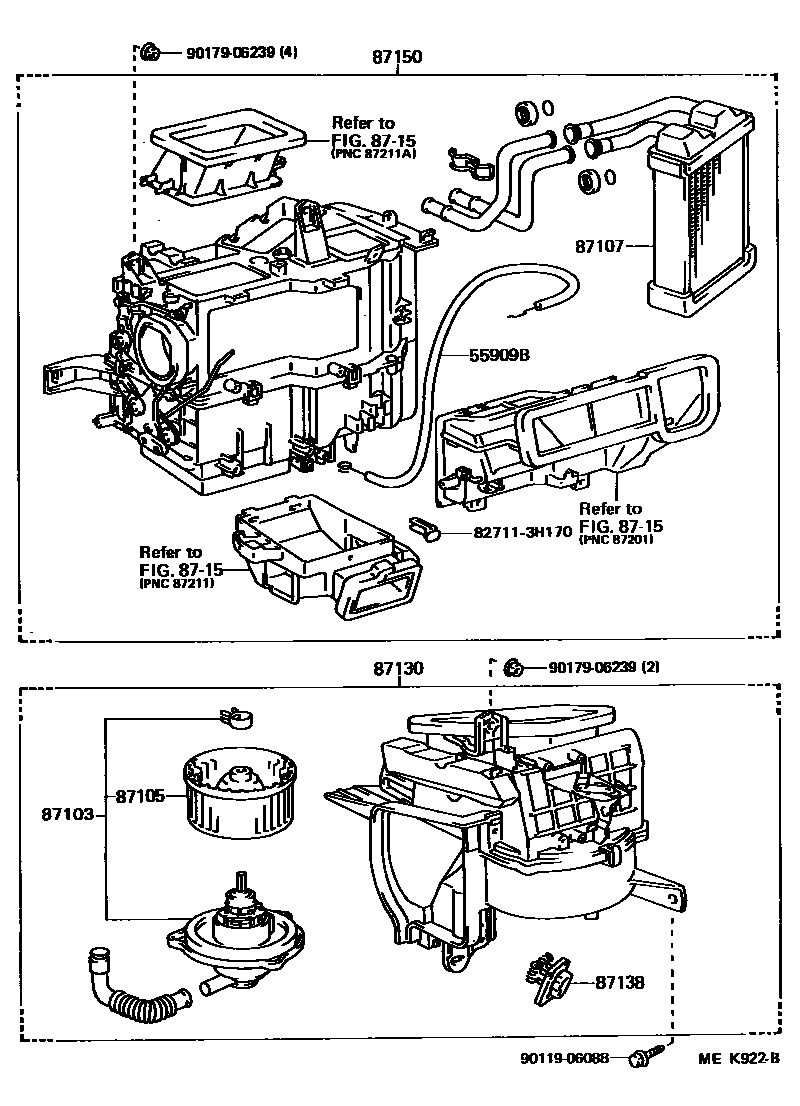

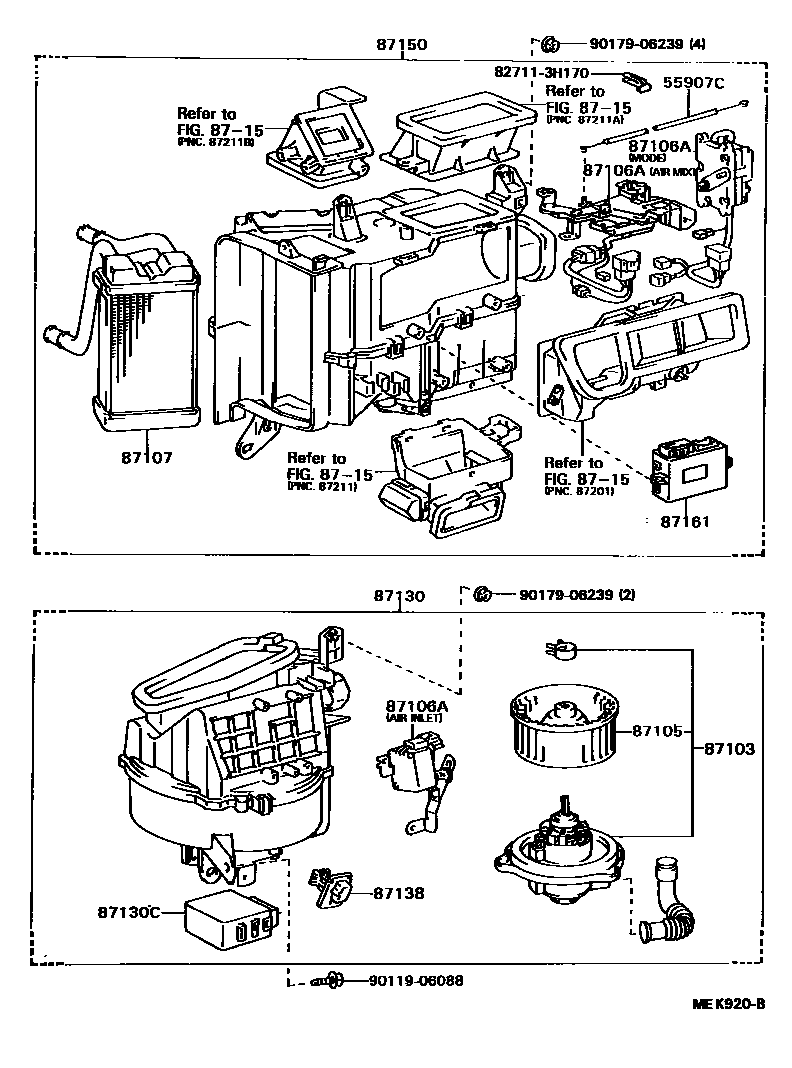

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-32010 · 87286-32040 |
| 55909B | Air mix damper control cable sub-assembly | 55909-32100 · 55909-32110 · 55909-32120 · 55909-32121 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-32010 · 87103-32020 |
| 87105 | Heater blower fan sub-assembly | 87105-32010 · 87105-32020 |
| 87106A | Damper servo mechanism sub-assembly | 87106-32010 · 87106-32020 · 87106-32030 · 87106-32040 · 87106-32050 |
| 87107 | Heater radiator device sub-assembly | 87107-32060 · 87107-32071 |
| 87130 | Front heater blower assembly | 87130-32070 · 87130-32080 · 87130-32090 · 87130-32130 |
| 87130C | Heater Blower Motor Relay | 88630-20020 |
| 87138 | Heater Blower Resistor | 87138-32030 · 87138-32040 |
| 87150 | Heater radiator assembly | 87150-32080 · 87150-32081 · 87150-32101 · 87150-32102 · 87150-32110 · 87150-32111 · 87150-32120 · 87150-32121 · 87150-32131 · 87150-32132 · 87150-32161 · 87150-32162 |
| 87161 | Heater servo motor amplifier | 87161-32020 |
