Toyota CAMRY 后视镜 — Figure 8701

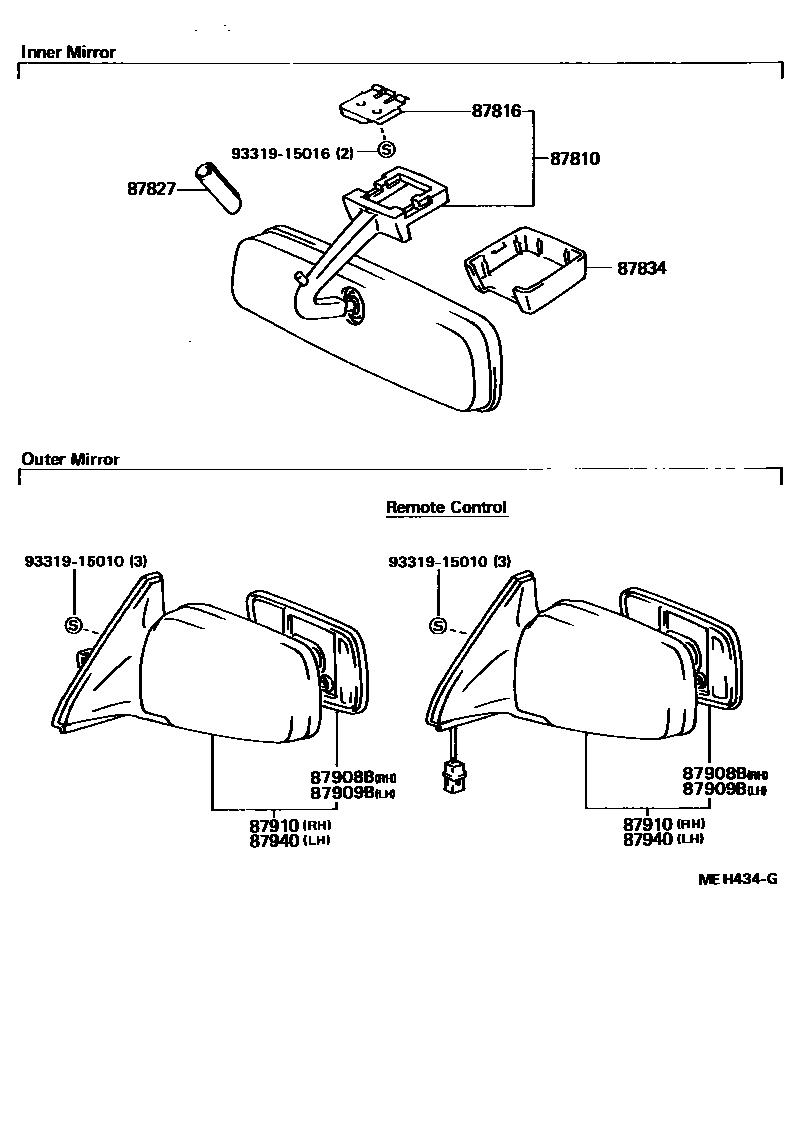

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-87003 · 87828-87005 |
| 87908B | Right rearview mirror sub-assembly | 87931-32181 · 87931-32190 · 87931-32230 · 87931-32240 · 87931-32250 · 87931-32261 · 87931-32381 · 87931-32382 |
| 87909B | Left rearview mirror sub-assembly | 87961-32240 · 87961-32250 · 87961-32260 · 87961-32271 · 87961-32380 · 87961-32421 · 87961-32422 |
| 87910 | Right exterior rearview mirror assembly | 87910-32230 · 87910-32240 · 87910-32241 · 87910-32250 · 87910-32260 · 87910-32261 |
| 87940 | Left exterior rearview mirror assembly | 87940-32240 · 87940-32250 · 87940-32251 · 87940-32260 · 87940-32270 · 87940-32271 |
