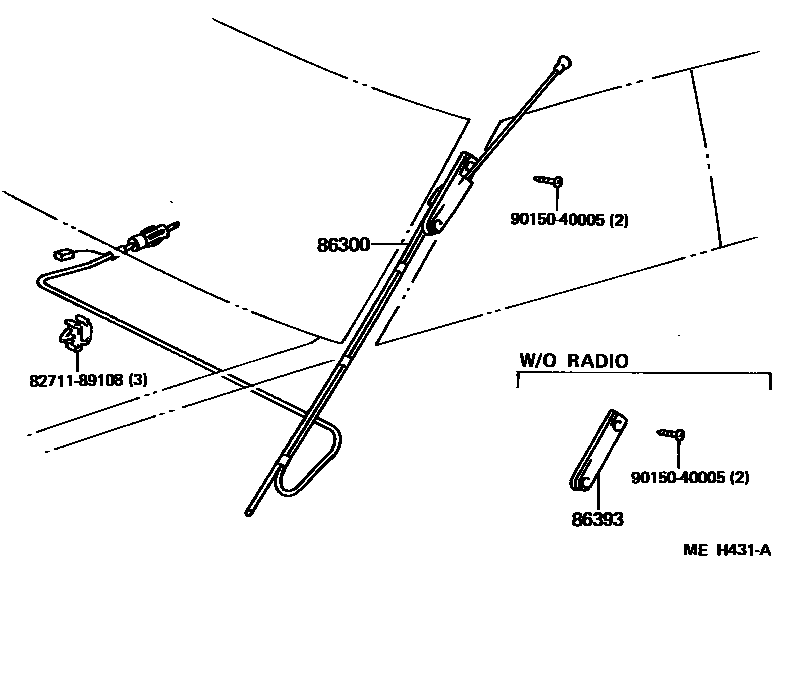

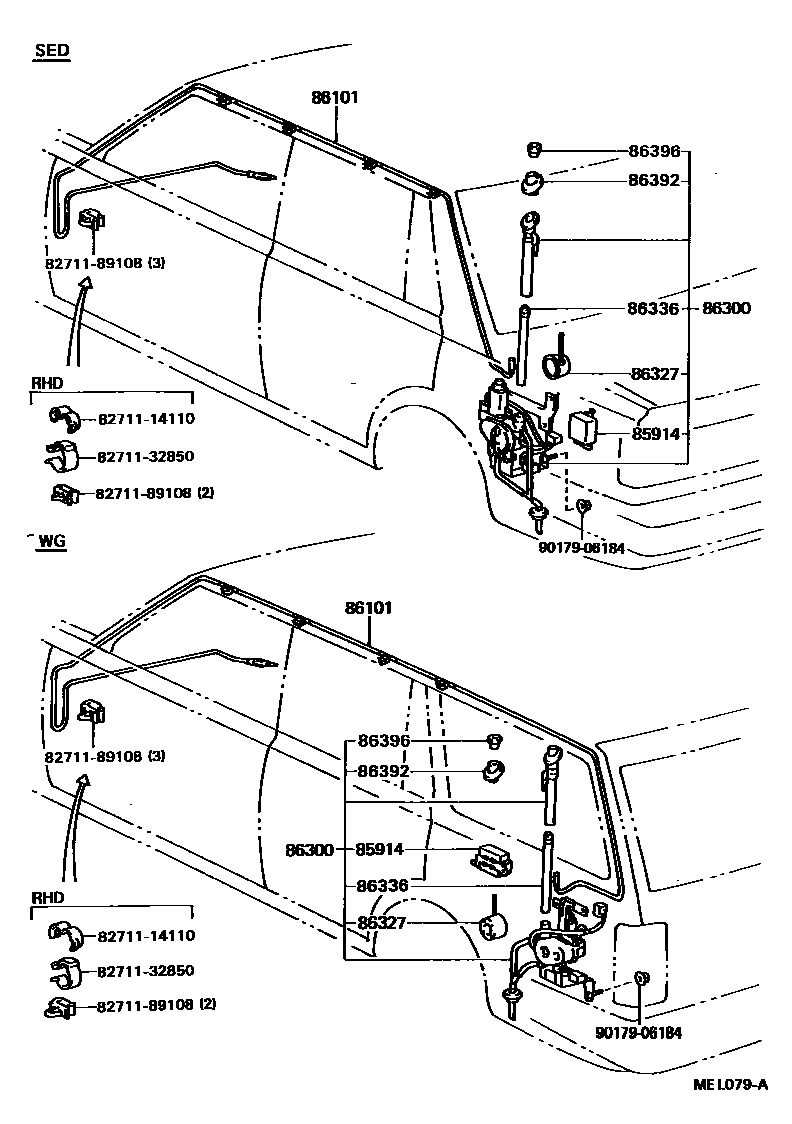

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-14020 |
| 86101 | Antenna wire sub-assembly | 86101-32020 · 86101-32030 |
| 86300 | Antenna assembly with fixing parts | 86300-32101 · 86300-32120 · 86300-32121 · 86300-32140 · 86300-32141 |
| 86327 | Cable with antenna drum | 86327-22211 |
| 86336 | Protective rods and protective tubes | 86336-14350 · 86336-32130 |
| 86392 | Antenna decorative parts | 86392-32030 · 86392-32050 |
| 86393 | Antenna decorative parts | 86392-20031 |
| 86396 | Antenna nut | 86396-14041 |
