Toyota CAMRY 前大灯清洗器 — Figure 8505

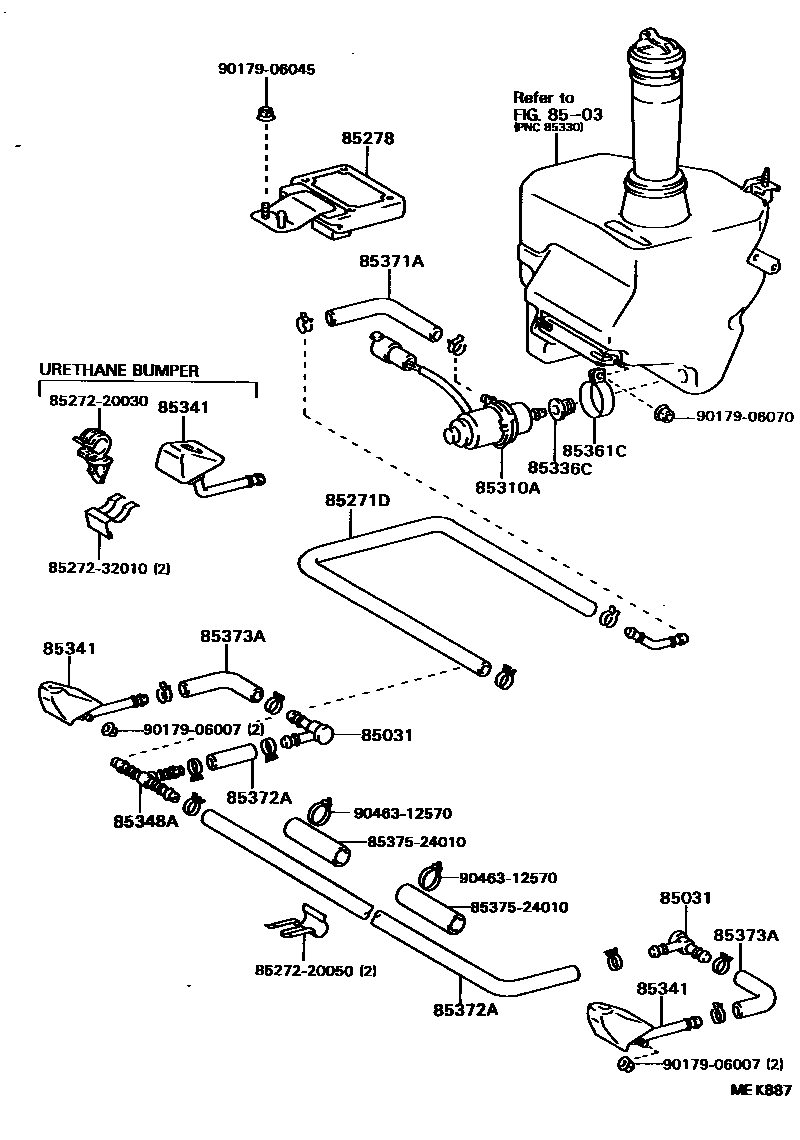

Toyota CAMRY EPC diagram 8505, 前大灯清洗器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271D | No. 5 headlight washer hose | 85375-32080 |
| 85278 | Headlight washer control relay assembly | 85276-32011 |
| 85310A | Headlight washer motor and pump assembly | 85310-12160 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-32050 · 85035-32060 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85361C | Cleaner stand | 85361-90K02 |
| 85371A | Headlight washer hose (from motor to connector) | 85375-32180 |
| 85372A | Headlight washer hose (from fitting to fitting or nozzle) | 85376-32080 · 90445-14071 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85375-32011 |
