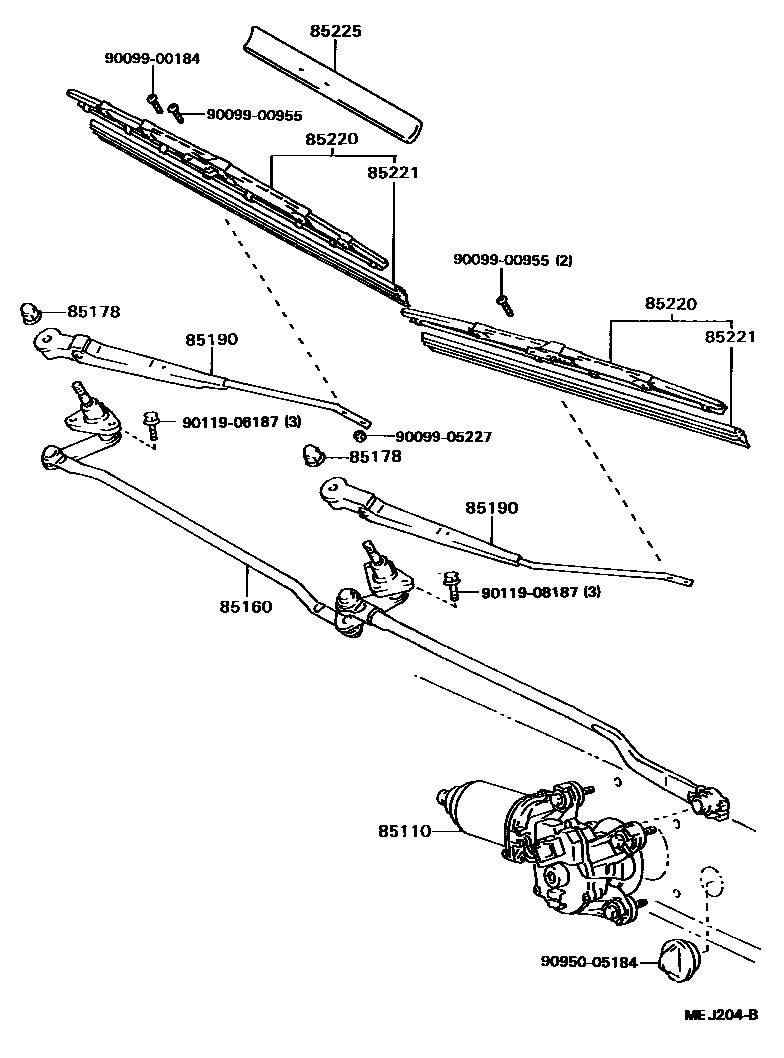

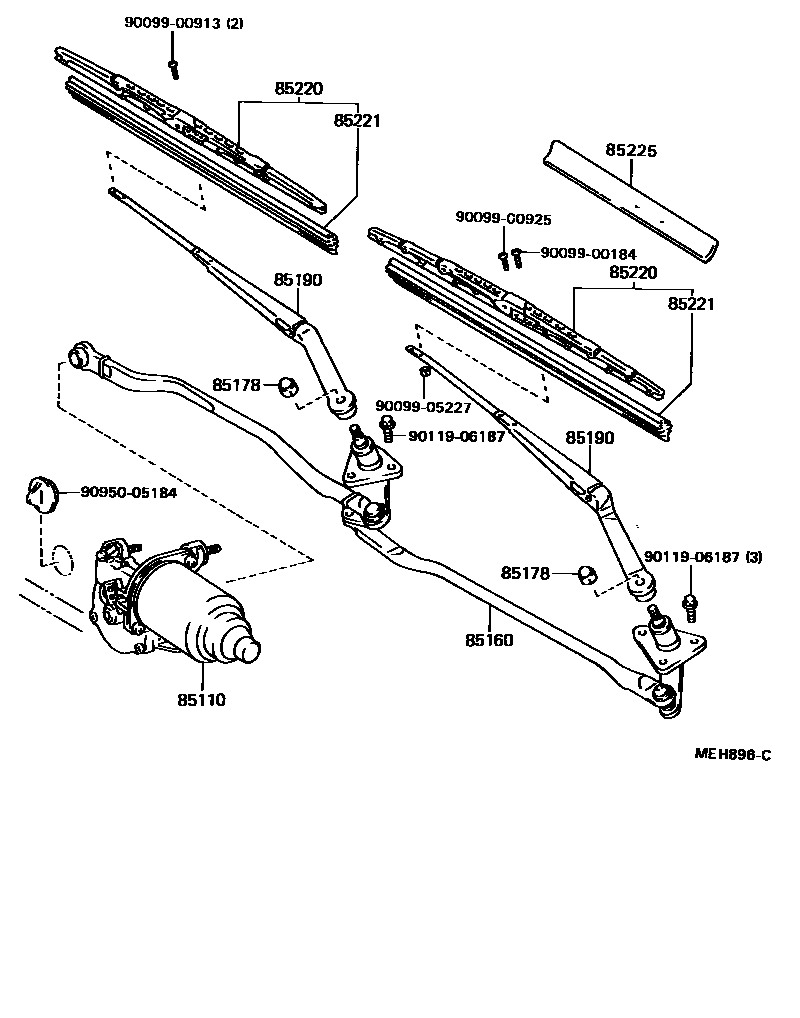

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-32202 · 85110-32242 |
| 85160 | Windshield wiper connecting rod assembly | 85160-32101 · 85160-32141 |
| 85178 | Nut (for securing front wiper arm) | 90176-08040 |
| 85190 | Windshield wiper arm assembly | 85190-32251 · 85190-32252 · 85190-32292 · 85210-32190 · 85210-32191 · 85210-32211 |
| 85220 | Windshield wiper blade assembly | 85212-32250 · 85220-16230 · 85220-16321 · 85220-16880 · 85220-32840 · 85220-32841 · 85220-32850 |
| 85221 | Windshield wiper blade | 85221-14290 · 85221-30100 |
| 85225 | wiper blade wing | 85225-32250 · 85225-32290 |
