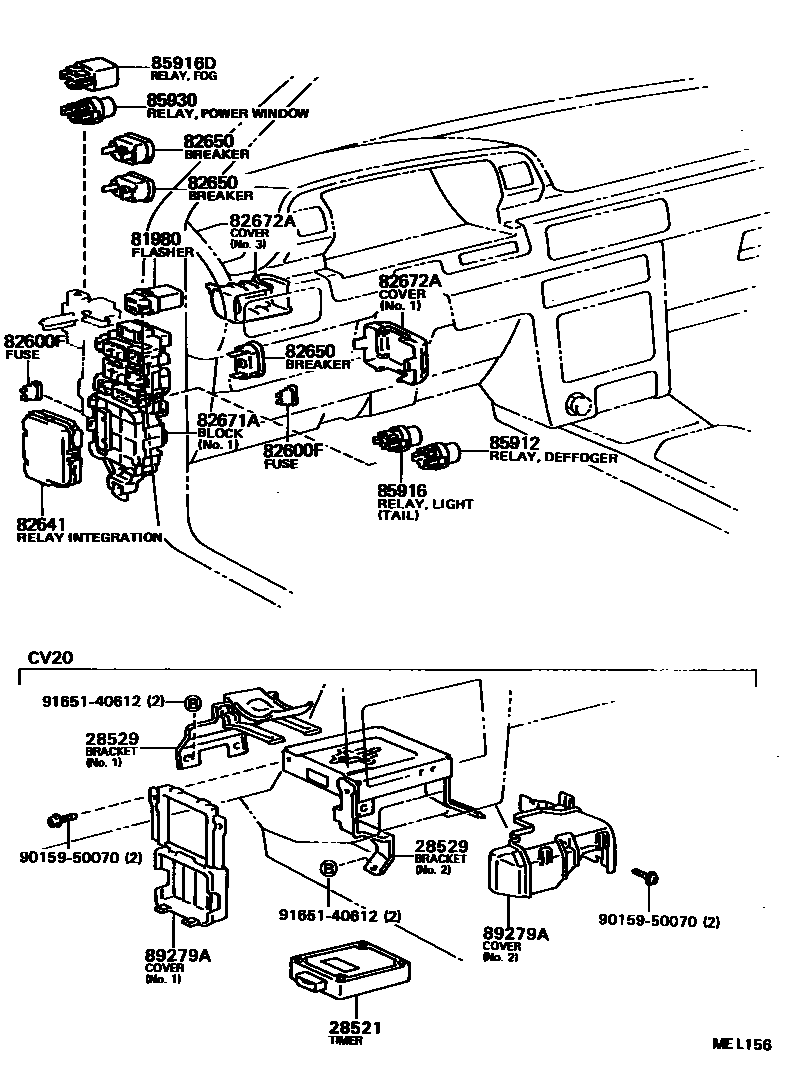

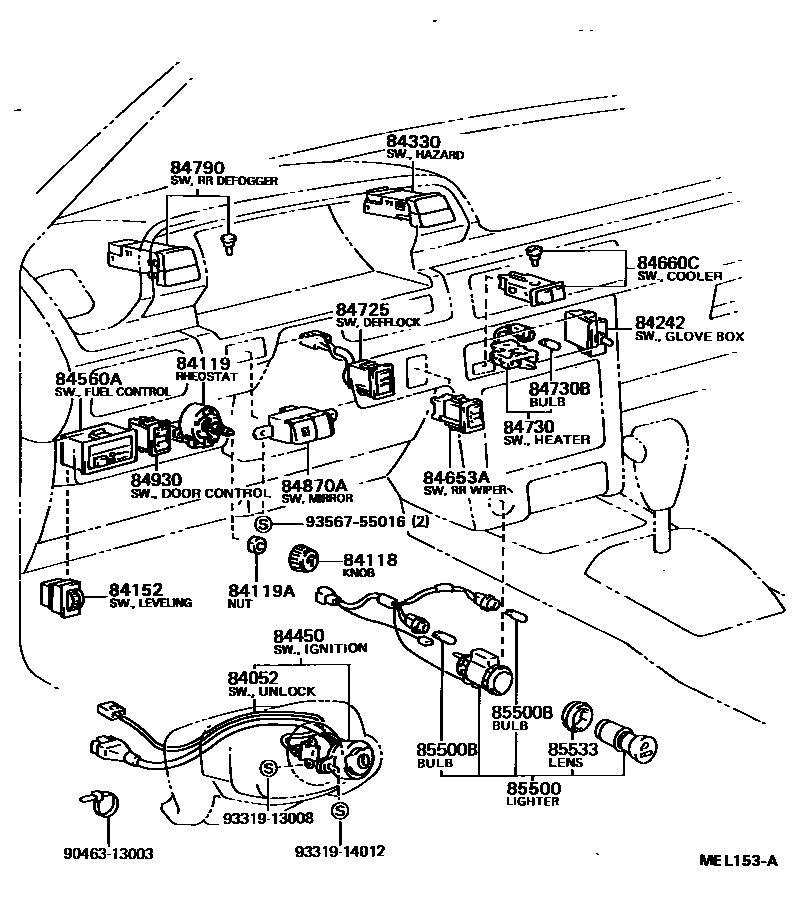

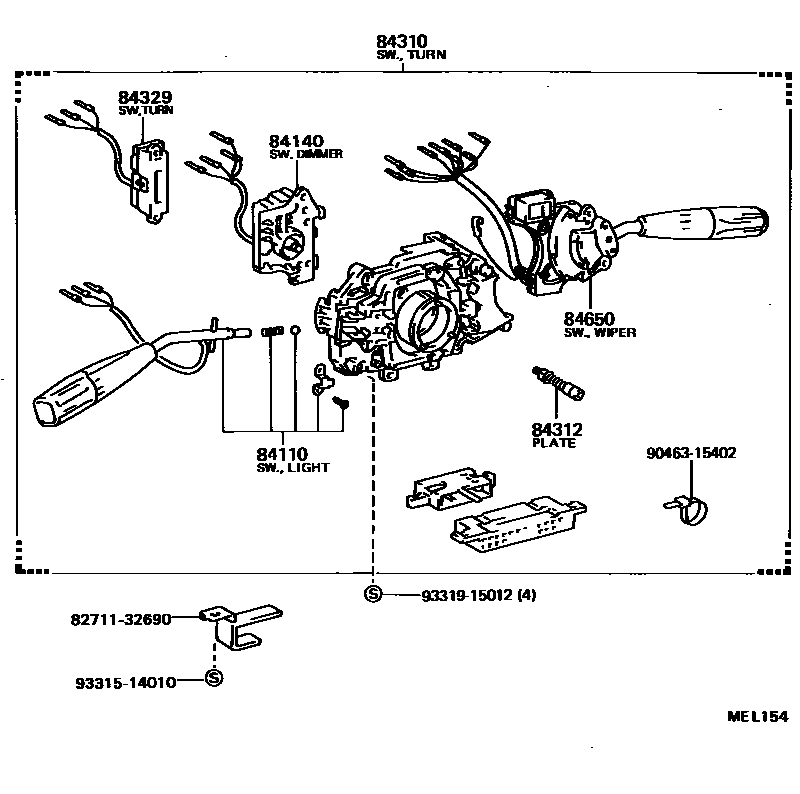

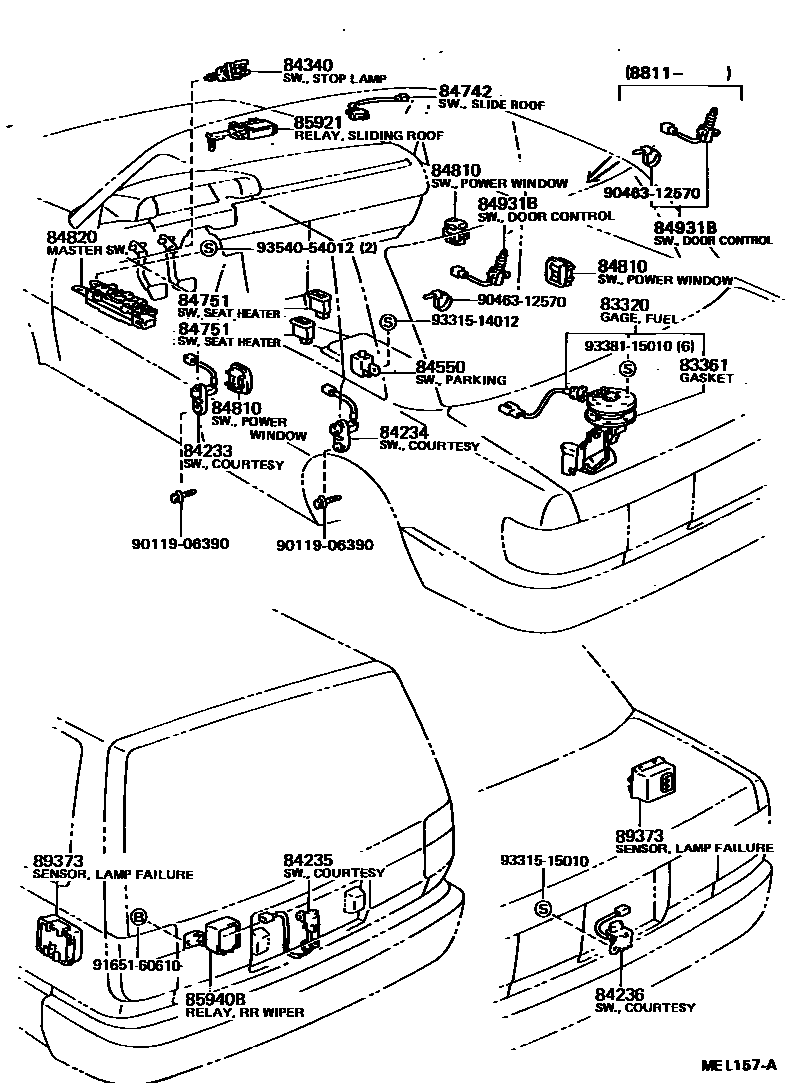

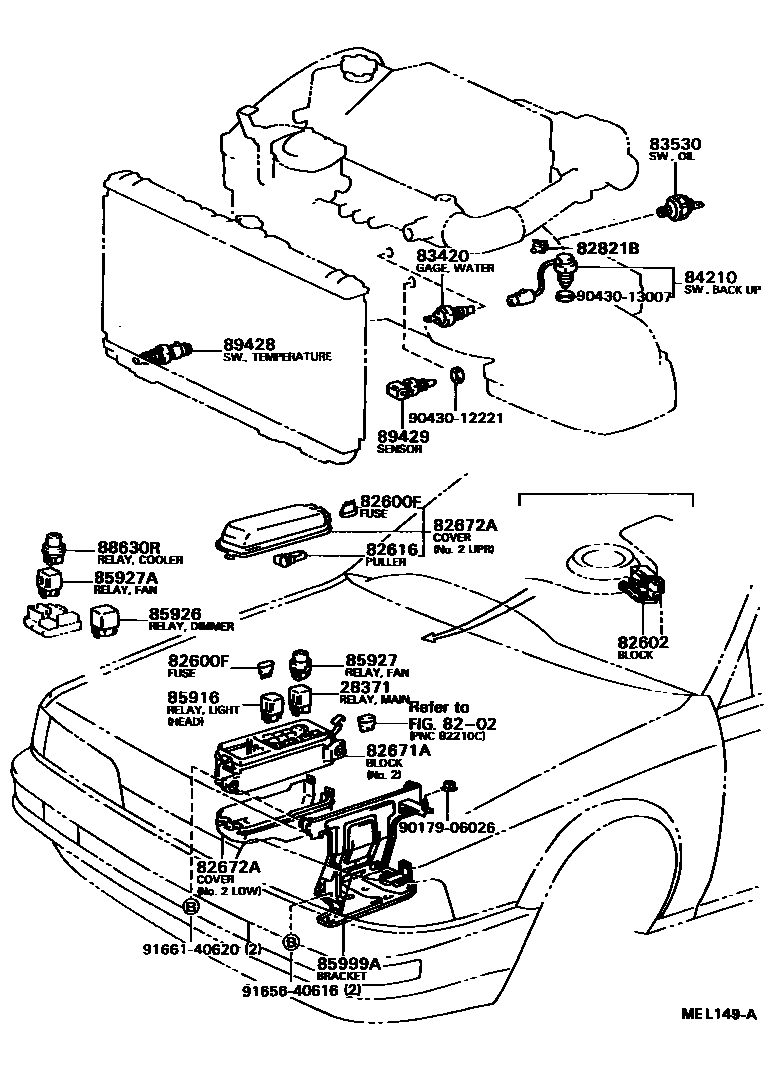

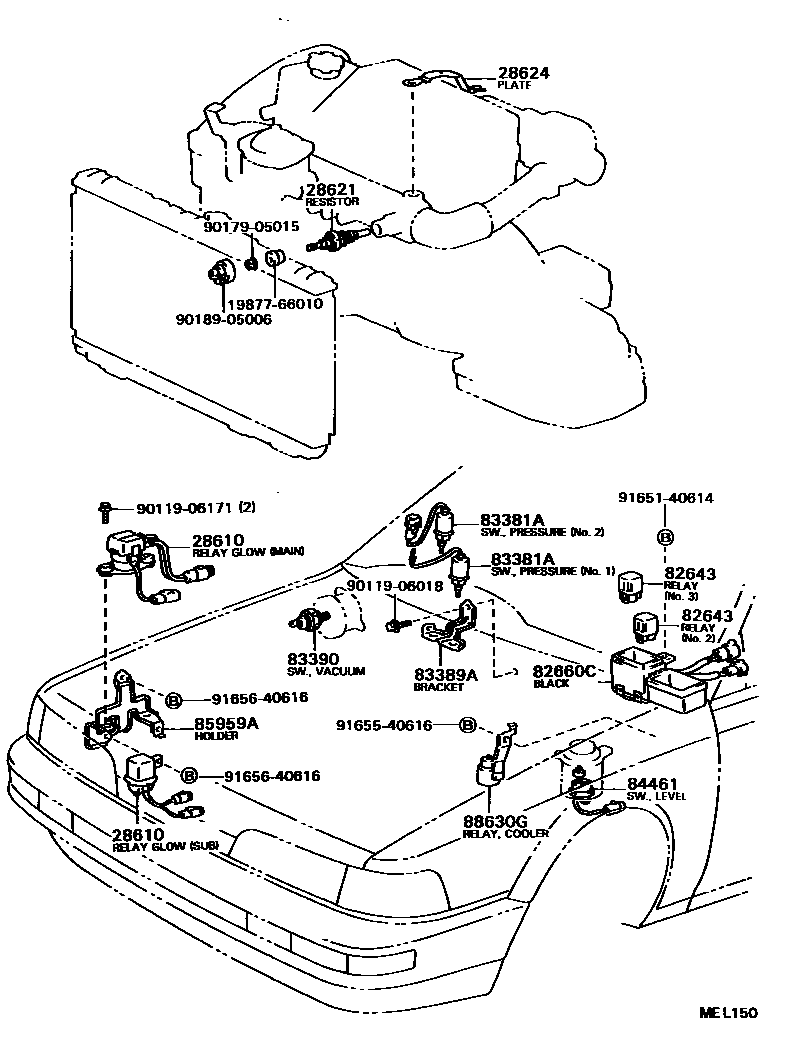

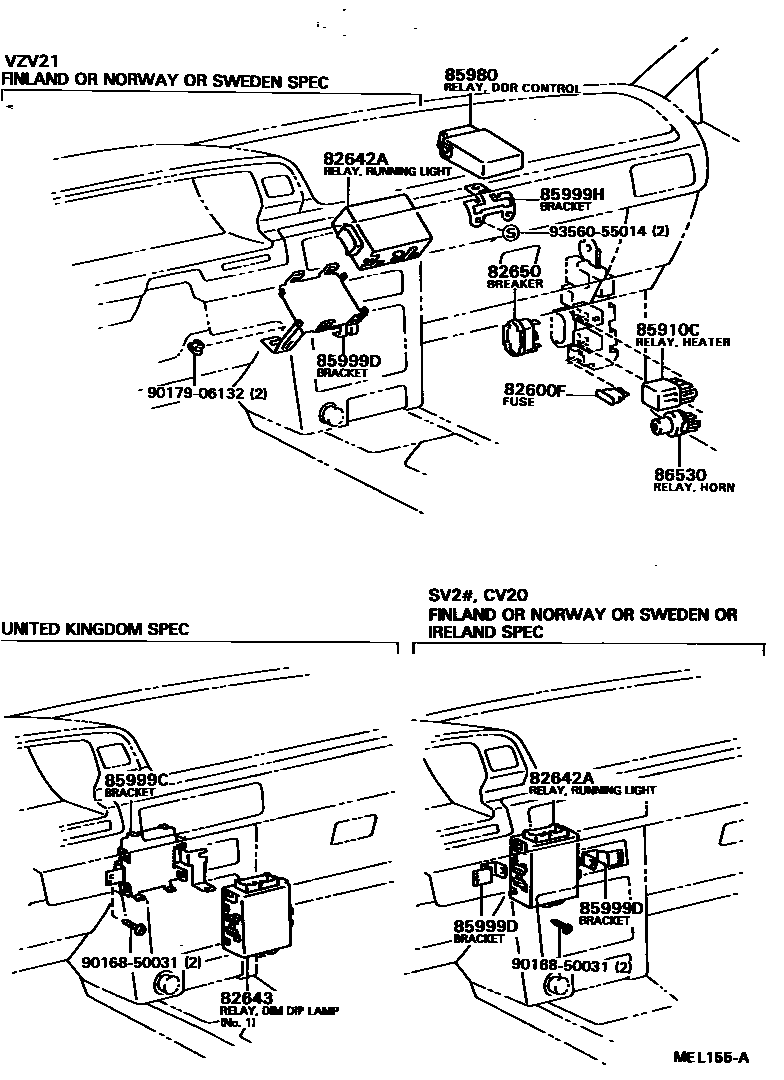

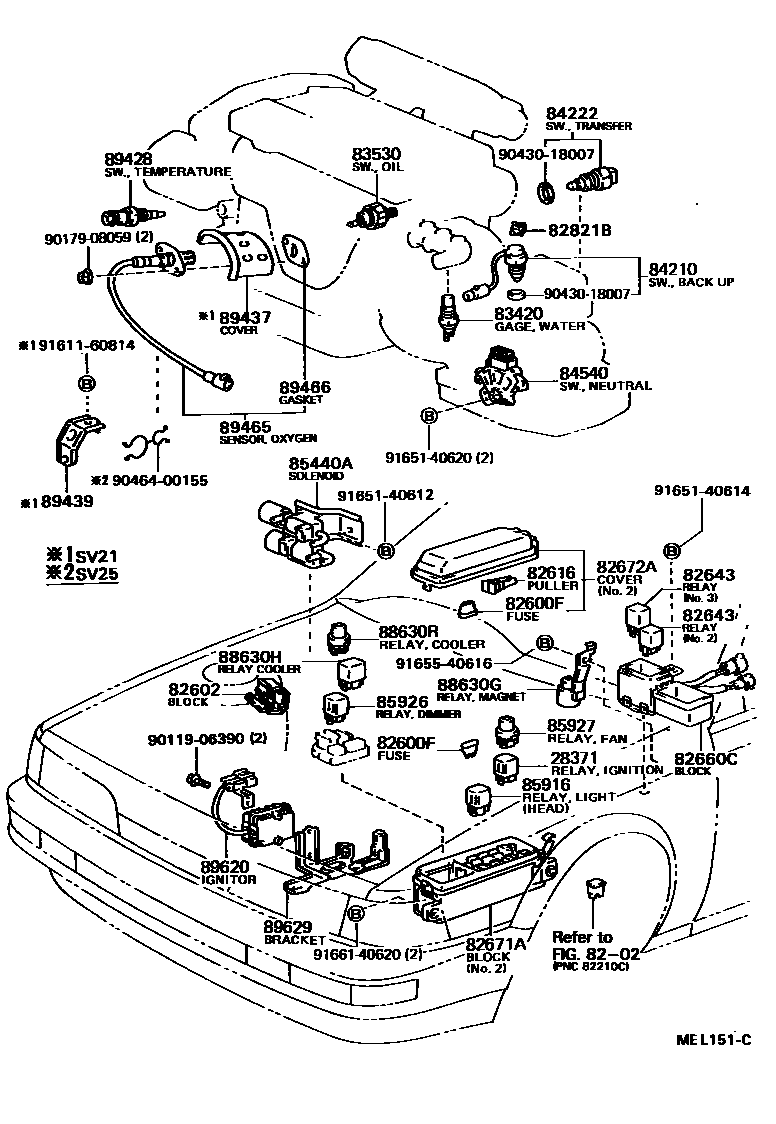

Toyota CAMRY 开关和继电器和ECU — Figure 8401

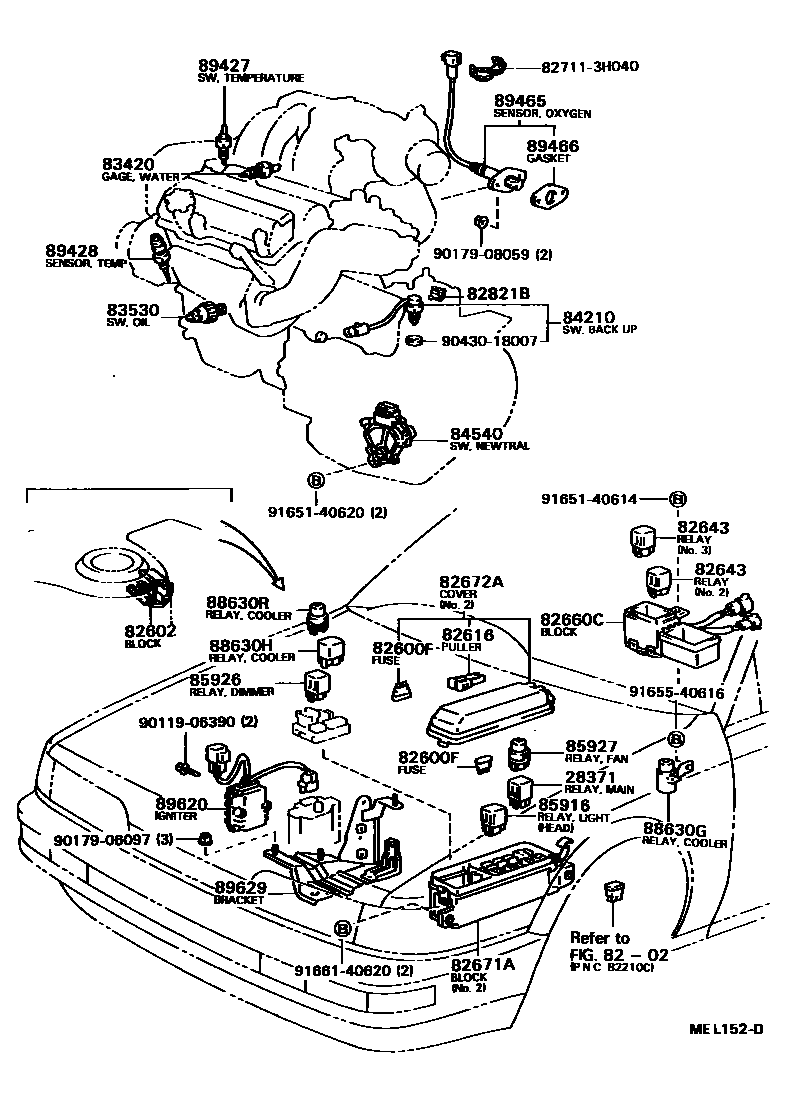

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 9 images and 97 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371 | No. 1 ignition relay | 90987-04002 |
| 28521 | Preheat timer | 28521-64291 · 28521-64360 · 28521-64390 |
| 28529 | Preheat timer bracket No. 1 | 28529-64120 · 28529-64130 · 89667-32020 |
| 28610 | Glow plug relay assembly | 28610-54290 · 28610-64080 |
| 28621 | glow plug resistor | 28621-64011 |
| 28624 | Current sensor chip | 28624-64040 · 28624-64050 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82600F | Spare fuse | 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82602 | Relay box sub-assembly | 82602-32080 |
| 82616 | fuse puller | 82616-12010 |
| 82641 | Integrated relay No. 1 | 82641-20110 |
| 82642A | driving light relay | 82642-32030 |
| 82643 | low beam relay | 82643-12010 · 90987-02006 · 90987-04002 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 · 82650-20020 |
| 82660C | Relay assembly | 82660-32130 |
| 82671A | junction box | 82671-20030 · 82671-32030 |
| 82672A | Junction box cover | 82672-32040 · 82672-32050 · 82672-32100 · 82672-32180 · 82672-32190 · 82672-32210 · 82672-32220 · 82672-32240 · 82672-32250 |
| 82821B | Connector cover | 82821-35010 |
| 83320 | Fuel gauge sensor assembly | 83320-39775 · 83320-39785 · 83320-39795 · 83320-80095 |
| 83361 | fuel gauge sensor gasket | 77169-14020 · 83361-32020 |
| 83381A | pressure switch | 83381-32040 · 83381-32050 |
| 83389A | Pressure switch bracket | 83389-32030 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14030 · 83530-30080 |
| 84052 | Unlock warning switch assembly | 84052-32010 |
| 84110 | No. 1 light control switch assembly | 84112-39585 · 84112-39605 · 84112-80005 · 84112-80007 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-20082 · 84119-32080 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09167 |
| 84140 | Headlight dimmer switch assembly | 84140-12210 · 84140-12220 · 84140-32130 · 84140-32140 |
| 84152 | Headlight beam height adjustment switch | 84152-32010 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-32020 · 84231-32070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12070 · 84231-24010 |
| 84235 | Door control light switch assembly (for back door) | 84230-16020 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20110 |
| 84242 | Glove box light switch | 84242-20030 |
| 84310 | Turn signal switch assembly | 84310-32540 · 84310-32640 · 84310-32710 · 84310-32730 · 84310-32790 · 84310-32810 · 84310-32840 · 84310-32860 |
| 84312 | Speaker contact piece | 84312-12040 · 84312-12050 |
| 84329 | turn signal switch | 84329-12010 · 84329-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-32060 · 84332-32140 · 84332-32170 · 84332-32190 |
| 84340 | brake light switch assembly | 84340-22100 · 84340-30030 · 84340-30050 · 84340-32030 |
| 84450 | Ignition or starter switch assembly | 84450-32020 · 84450-32050 |
| 84461 | Liquid level warning switch | 84461-12050 |
| 84540 | Neutral start switch assembly | 84540-32070 · 84540-32090 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84560A | Fuel control switch assembly | 84560-32010 · 84560-32020 |
| 84650 | Windshield wiper switch assembly | 84652-32550 · 84652-32560 · 84652-32590 · 84652-32600 · 84652-32630 · 84652-32640 · 84652-32650 · 84652-32660 · 84652-32690 · 84652-32700 · 84652-32710 · 84652-32720 · 84652-32730 · 84652-32740 · 84652-32750 · 84652-32760 |
| 84653A | Rear wiper switch | 84653-32040 |
| 84660C | Cooler switch | 84660-32050 · 84660-32051 · 84660-32060 |
| 84725 | Center differential lock switch | 84725-32020 |
| 84730 | Heater blower switch assembly | 84732-32070 · 84732-32080 |
| 84730B | heater blower switch light bulb | 81850-32160 |
| 84742 | Sliding sunroof limit switch | 84742-32010 |
| 84751 | Seat heater switch | 84751-32010 |
| 84790 | Rear window defogger switch assembly | 84790-32110 · 84790-32130 · 84790-32140 |
| 84810 | Electric window lift switch assembly | 84810-32060 · 84810-32070 |
| 84820 | Electric window lift main switch assembly | 84820-32140 · 84820-32150 |
| 84930 | Door control switch assembly | 84930-32020 |
| 84931B | door control switch | 84931-32040 · 84931-39015 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-32010 |
| 85500 | Cigarette lighter assembly | 85500-32051 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-32010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02002 · 90987-02004 |
| 85916 | Light control relay | 90987-02002 · 90987-02004 · 90987-02006 |
| 85916D | fog light relay | 90987-02002 · 90987-02004 |
| 85921 | Sliding sunroof control relay | 85921-32010 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90987-03001 |
| 85927A | Cooling fan relay No. 2 | 88630-32010 |
| 85930 | Electric window relay assembly | 90987-02002 · 90987-02004 |
| 85940B | Rear wiper relay assembly | 85940-32100 |
| 85959A | Relay mounting parts | 85959-32040 |
| 85980 | Door control relay assembly | 85980-32060 · 85980-32070 |
| 85999A | No. 2 relay bracket | 85999-32100 |
| 85999C | No. 3 relay bracket | 85999-32010 · 85999-32160 |
| 85999D | No. 4 relay bracket | 85999-32110 · 85999-32140 |
| 85999H | Relay bracket | 85999-32030 |
| 86530 | Speaker relay assembly | 90987-02002 · 90987-02004 |
| 88630G | Cooler relay assembly | 88630-32020 |
| 88630H | Cooler relay assembly | 88630-32010 |
| 88630R | No. 3 cooler relay assembly | 90987-02004 |
| 89279A | ECU cover | 89279-32070 · 89279-32080 · 89279-32110 |
| 89373 | Malfunction indicator light sensor | 89373-32151 · 89373-32160 · 89373-32180 |
| 89427 | Temperature detection switch | 89427-32021 |
| 89428 | No. 2 temperature detection switch | 89428-15030 · 89428-20060 |
| 89429 | oil temperature sensor | 89422-20010 |
| 89437 | sensor cover | 89437-32020 |
| 89439 | Sensor holder | 89439-32010 |
| 89465 | oxygen sensor | 89465-29285 · 89465-39205 · 89465-39215 · 89465-39345 |
| 89466 | Oxygen sensor pad | 89466-20020 · 89466-30010 |
| 89620 | Ignition assembly | 89620-32110 · 89621-32010 |
| 89629 | Ignition bracket assembly | 89629-32030 · 89629-32070 · 89629-32071 |
