Toyota CAMRY 仪表 — Figure 8301

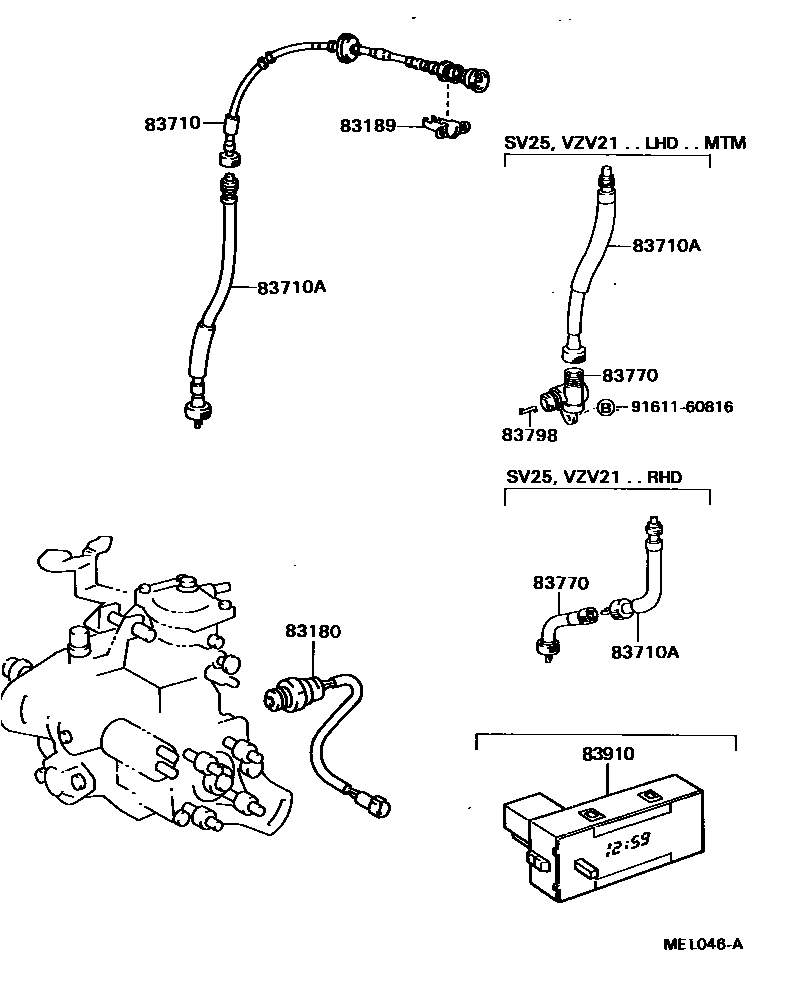

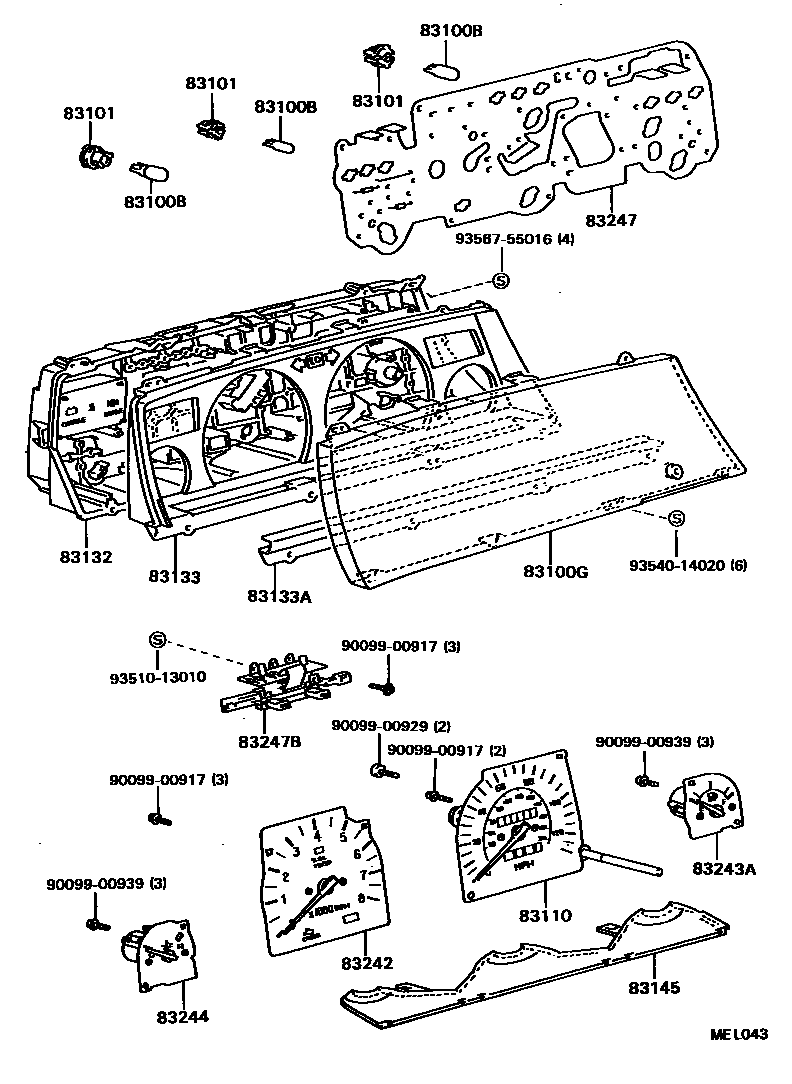

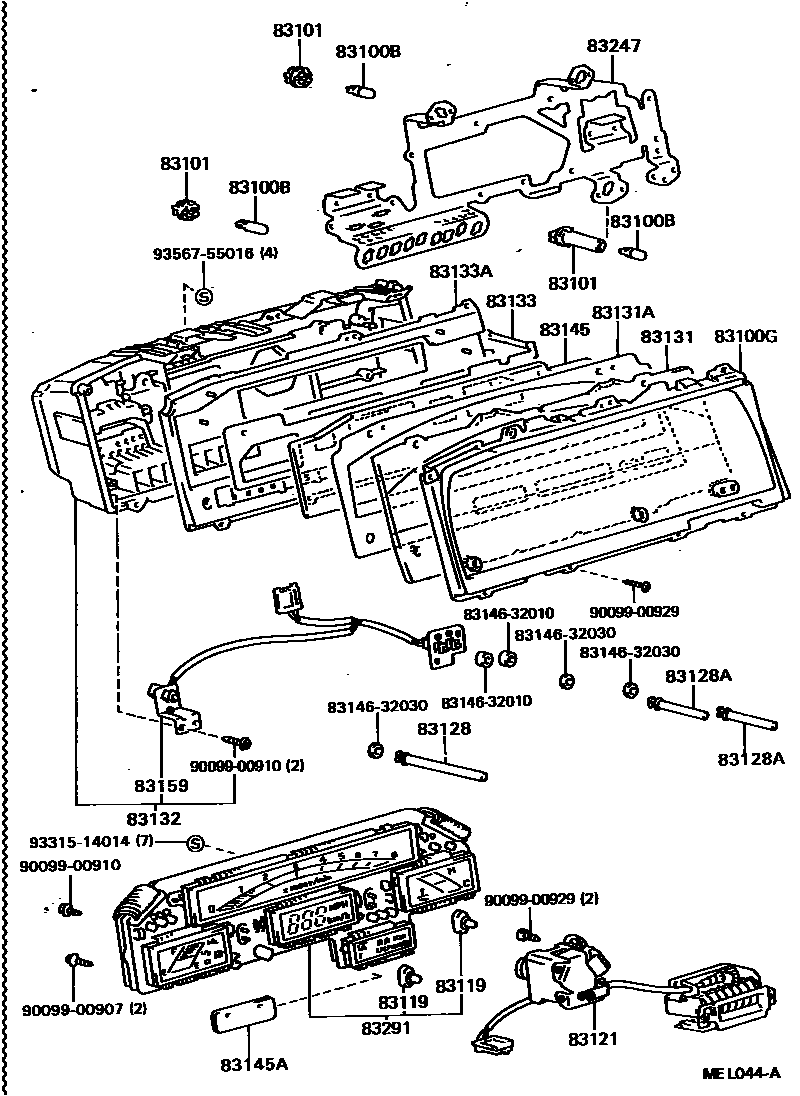

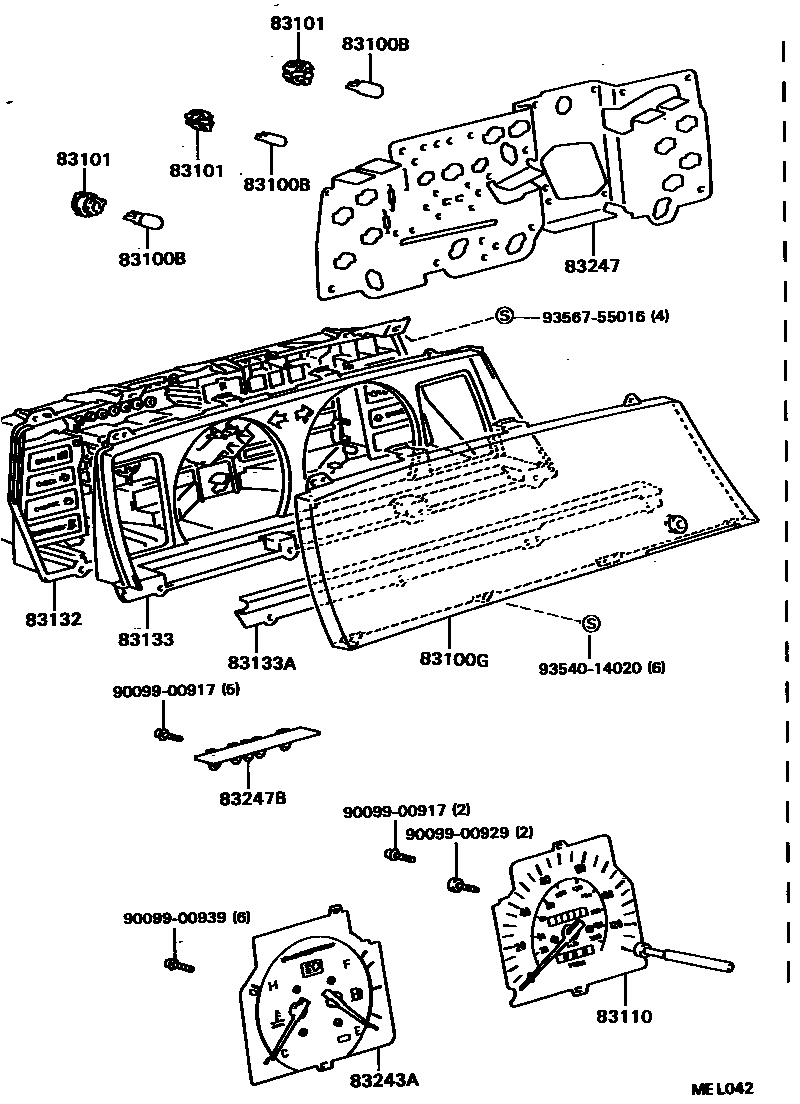

Toyota CAMRY EPC diagram 8301, 仪表, with 6 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

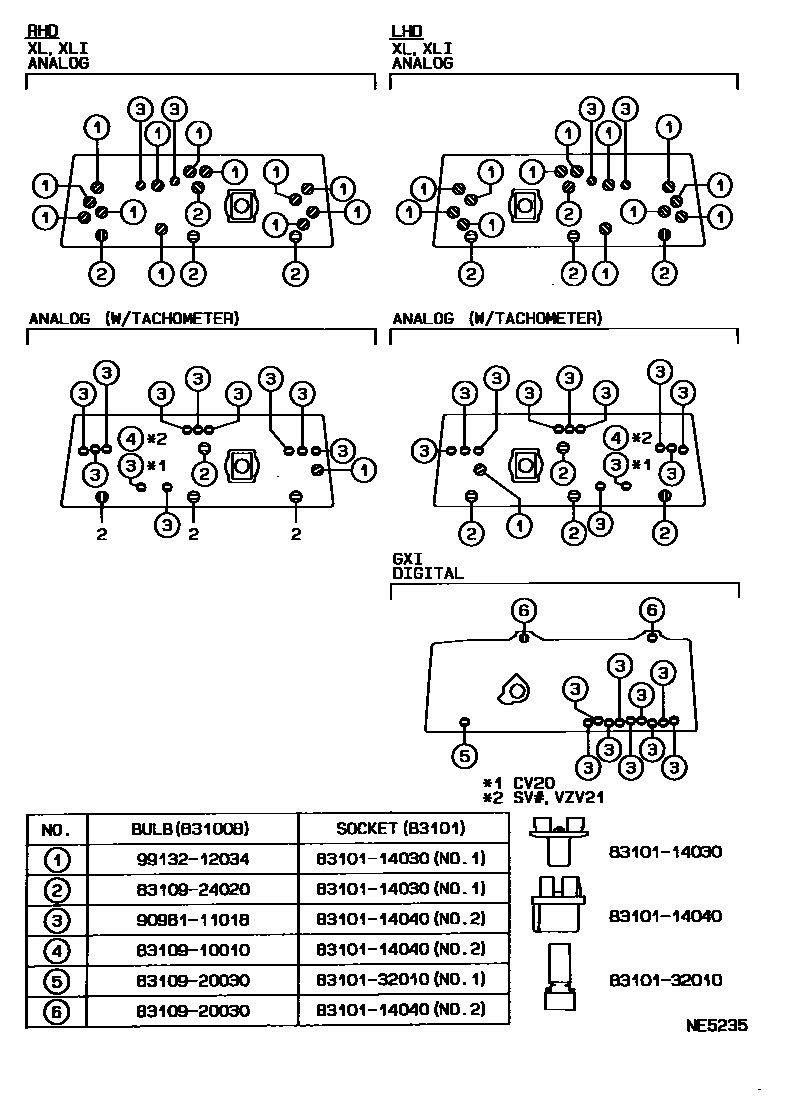

| 83100B | Combination instrument bulb No. 1 | 83109-10010 · 83109-20030 · 83109-24020 · 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83133-32410 · 83138-32030 · 83138-32050 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32010 |
| 83110 | Speedometer assembly | 83110-32461 · 83110-32471 · 83110-32481 · 83110-32491 · 83110-32501 · 83110-32541 · 83110-32620 |
| 83119 | Instrument cluster No. 3 light bulb | 83119-24030 |
| 83121 | total counter | 83121-32190 |
| 83128 | trip odometer handle | 83128-32130 |
| 83128A | instrument handle | 83128-32110 |
| 83131 | Instrument panel No. 1 | 83131-32470 |
| 83131A | Instrument panel No. 2 | 83131-32430 |
| 83132 | Instrument cluster housing | 83132-32060 · 83132-32820 · 83132-32840 · 83132-32880 · 83132-3H010 · 83132-3H030 · 83132-3H050 · 83132-3H070 |
| 83133 | Combined instrument panel No. 1 | 83133-32330 · 83133-32530 · 83133-32550 · 83133-32690 · 83133-32710 |
| 83133A | Combined instrument panel No. 2 | 83133-32470 · 83133-32590 · 83133-32610 |
| 83145 | Instrument No. 1 lampshade | 83145-32330 · 83145-32350 · 83145-32370 |
| 83145A | Instrument No. 2 lampshade | 83145-32390 |
| 83159 | No.1 instrument switch | 83159-32110 |
| 83180 | Speed detector assembly | 83180-32020 |
| 83189 | instrument bracket | 83189-20020 |
| 83242 | Engine tachometer assembly | 83242-32120 · 83242-32180 · 83242-32200 · 83242-32220 · 83242-32340 · 83242-32360 · 83242-32380 |
| 83243A | Fuel gauge sub-assembly | 83243-32830 · 83243-32850 · 83243-32870 · 83243-3H010 · 83243-3H070 · 83243-3H090 · 83243-3H110 · 83243-3H130 · 83243-3H150 · 83243-3H170 |
| 83244 | Water temperature meter sub-assembly | 83244-32610 · 83244-32630 |
| 83247 | Instrument circuit board | 83247-32300 · 83247-32320 · 83247-32520 · 83247-32860 · 83247-3H110 · 83247-3H130 · 83247-3H150 · 83247-3H190 · 83247-3H290 |
| 83247B | No. 2 instrument circuit board | 83247-32660 · 83247-32680 · 83247-32700 · 83247-32740 |
| 83291 | Instrument cluster ECU | 83291-32130 |
| 83390A | Vacuum switch assembly (for flue gas analyzer) | 83391-16020 |
| 83399B | Vacuum switch bracket | 83399-32050 |
| 83550A | ED monitor hose | 83090-32020 · 83090-32030 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-32111 · 83710-32121 · 83710-32191 · 83710-32210 · 83710-32250 · 83710-32270 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-32040 · 83710-32130 · 83710-32170 · 83710-32180 · 83710-32200 · 83710-32220 · 83710-32280 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-17010 · 83770-22100 · 83770-32010 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-17010 |
| 83910 | clock assembly | 83910-32061 |
