Toyota CAMRY 后牌照灯 — Figure 8113

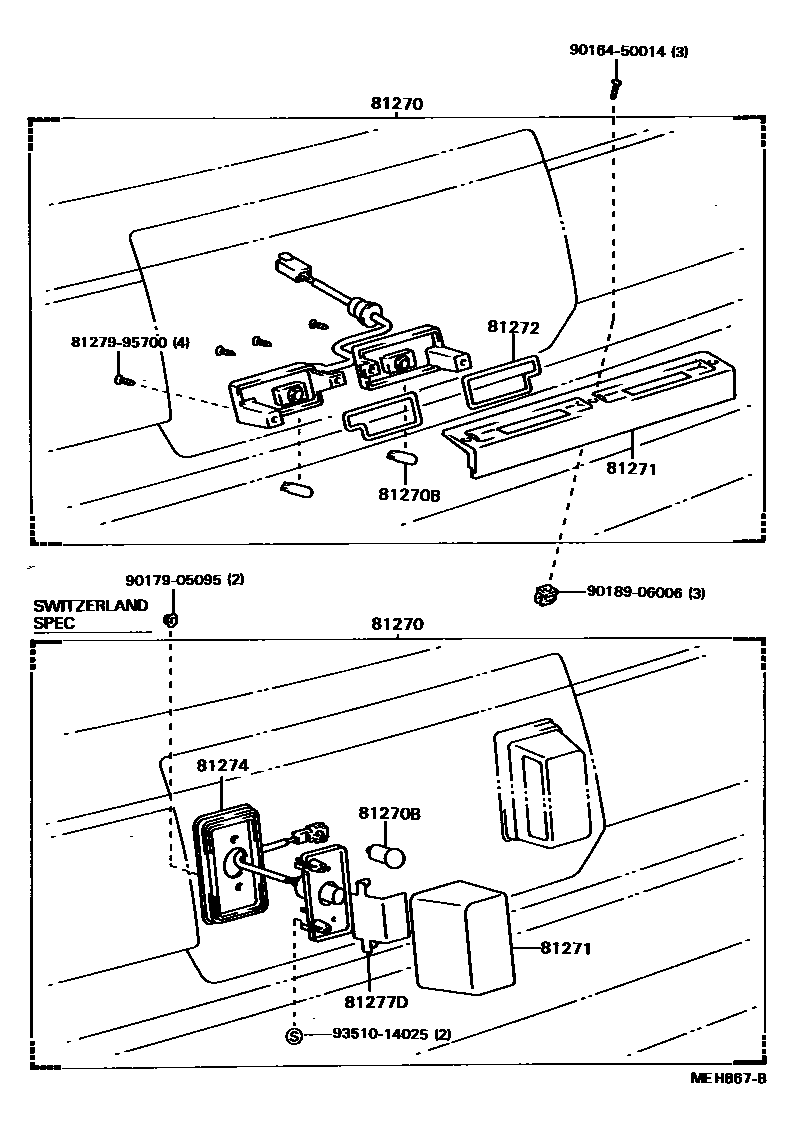

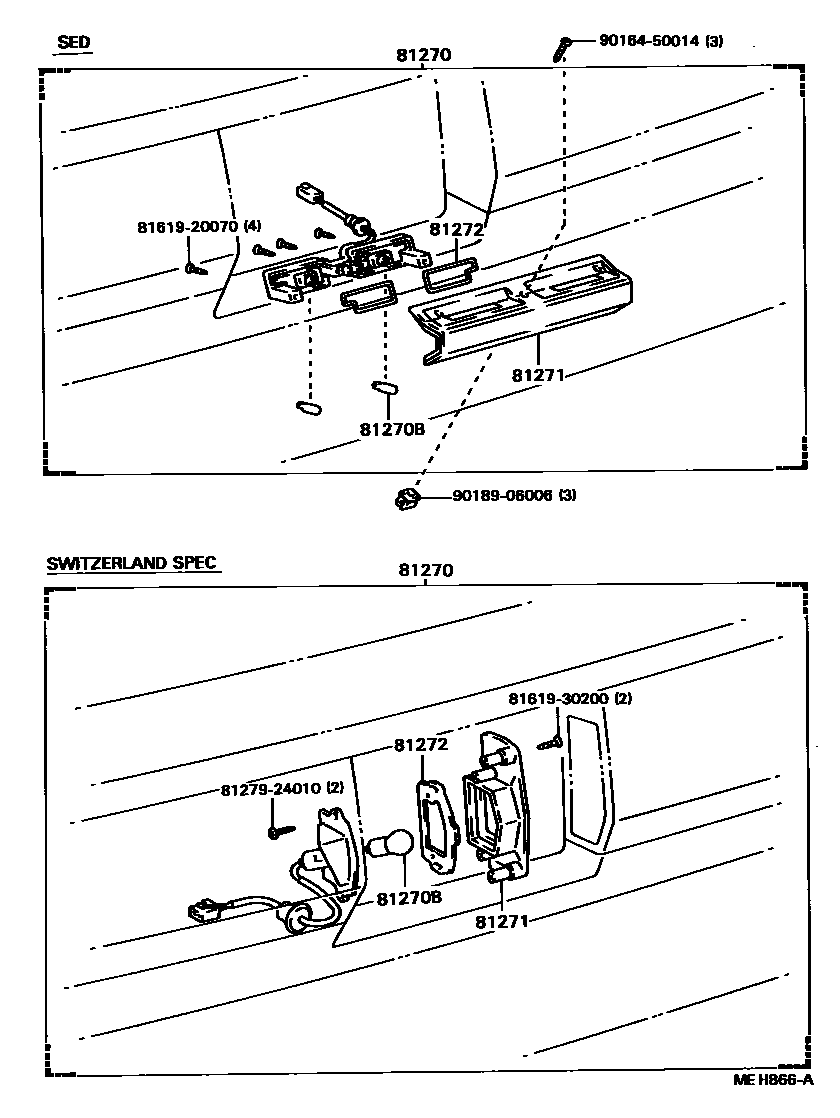

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-32100 · 81270-32120 · 81270-32130 · 81270-32140 |
| 81270B | Bulb (for license plate light) | 90981-12012 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-10141 · 81271-32100 · 81271-32120 · 81271-32140 |
| 81272 | License plate lamp shade gasket | 81272-20210 · 81272-20240 · 81272-32100 |
| 81274 | License plate light body gasket | 81274-32130 |
| 81277D | license plate light reflector | 81277-16120 |
