Toyota CAMRY accelerator pedal connecting rod — Figure 7801

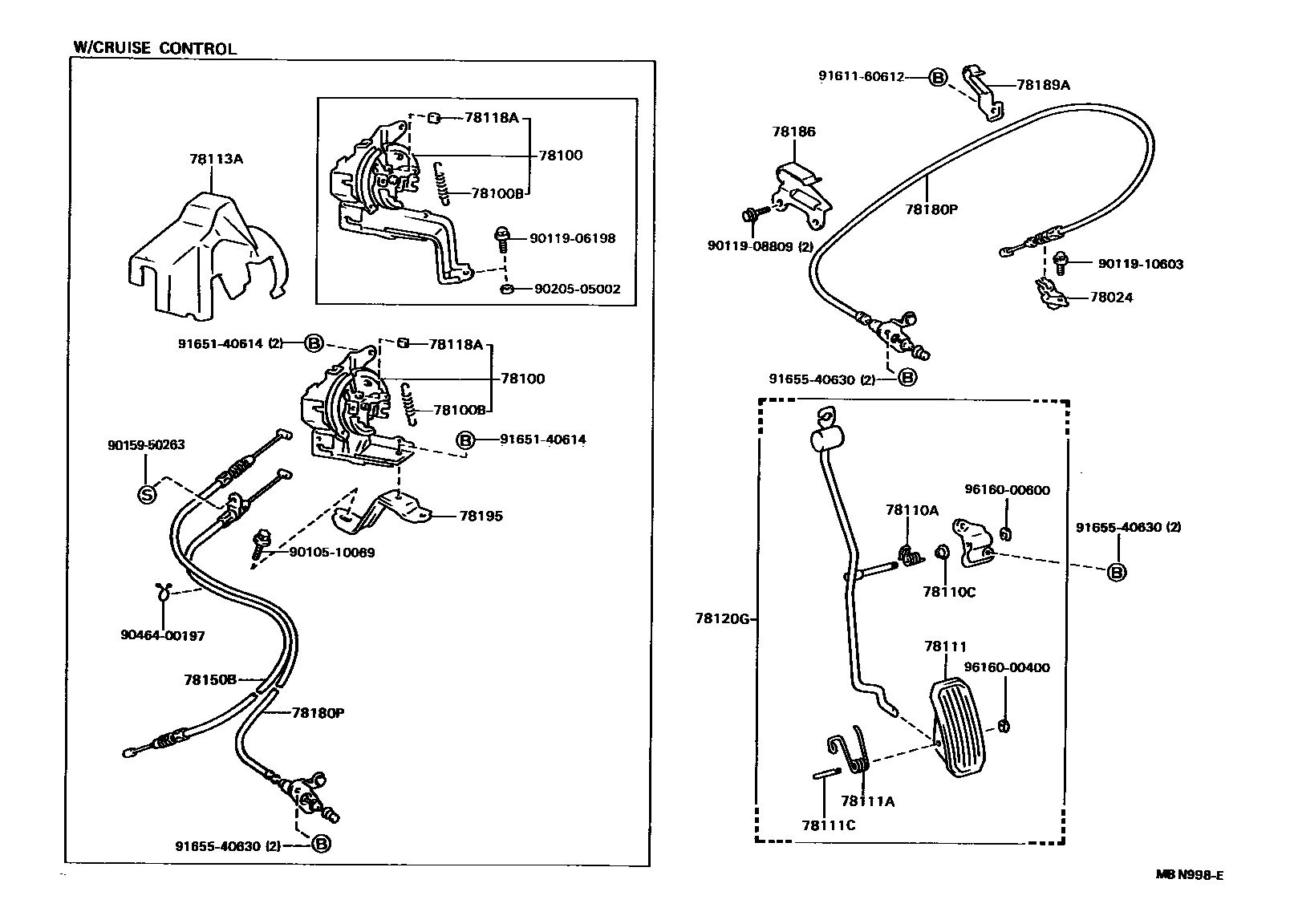

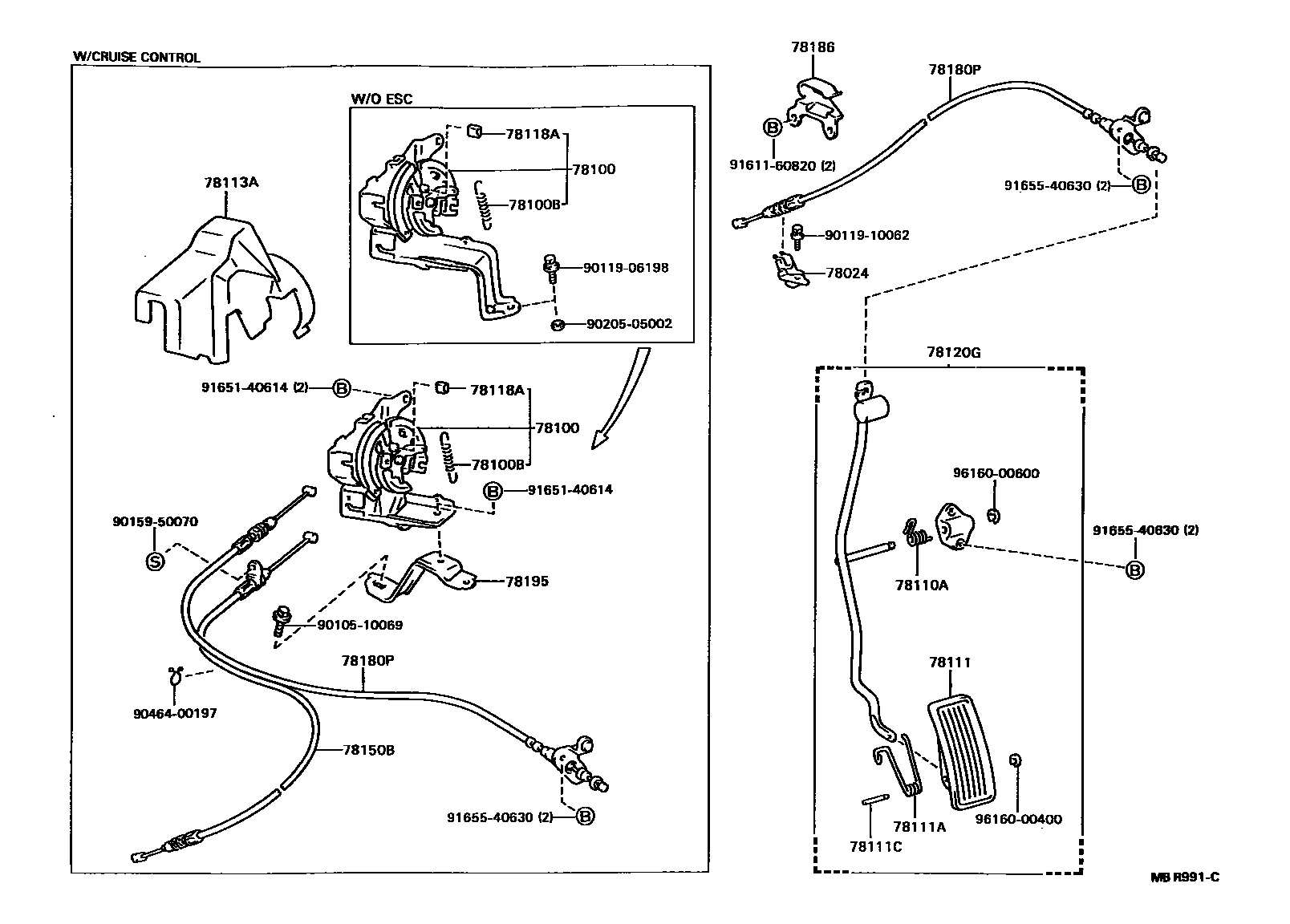

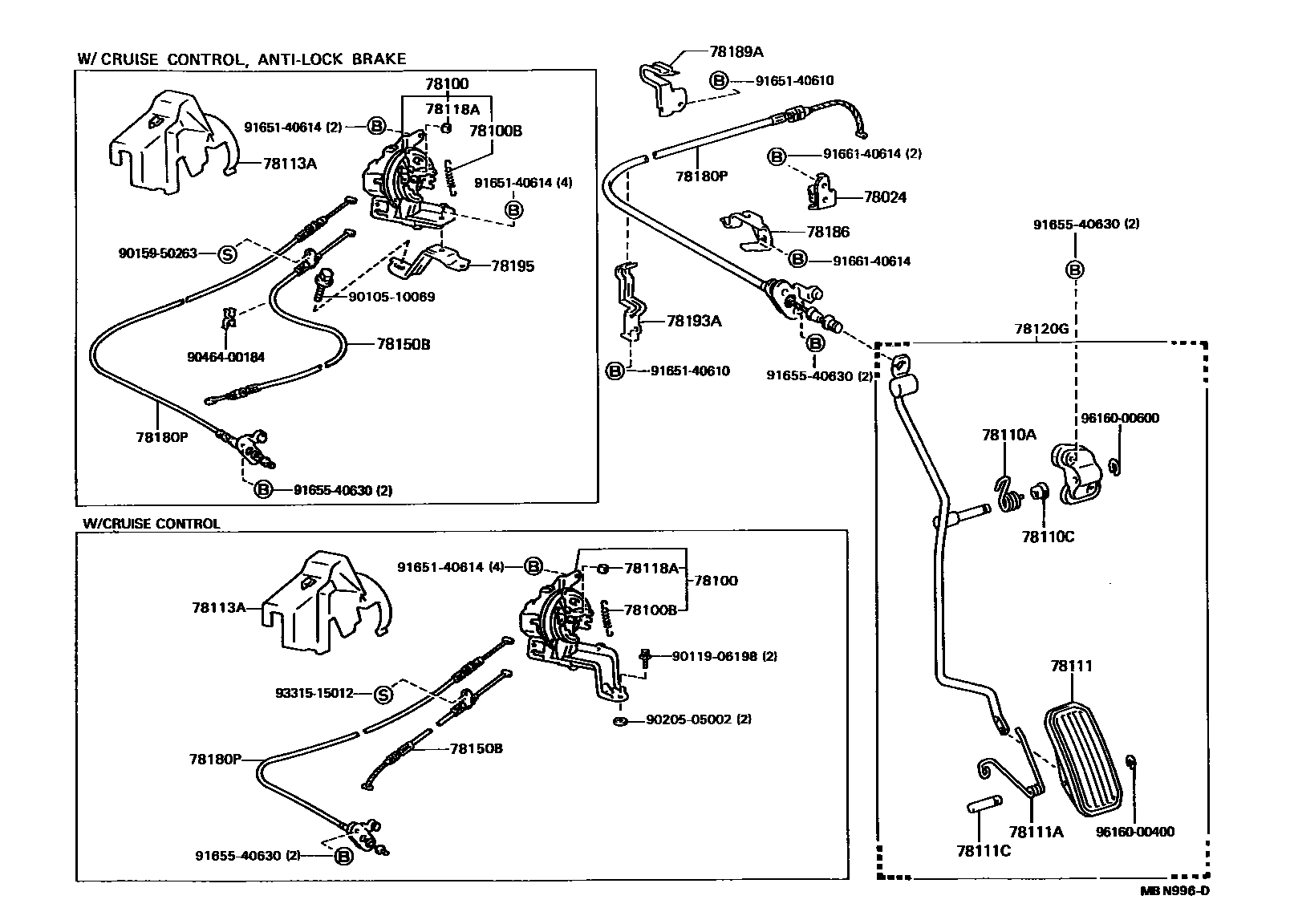

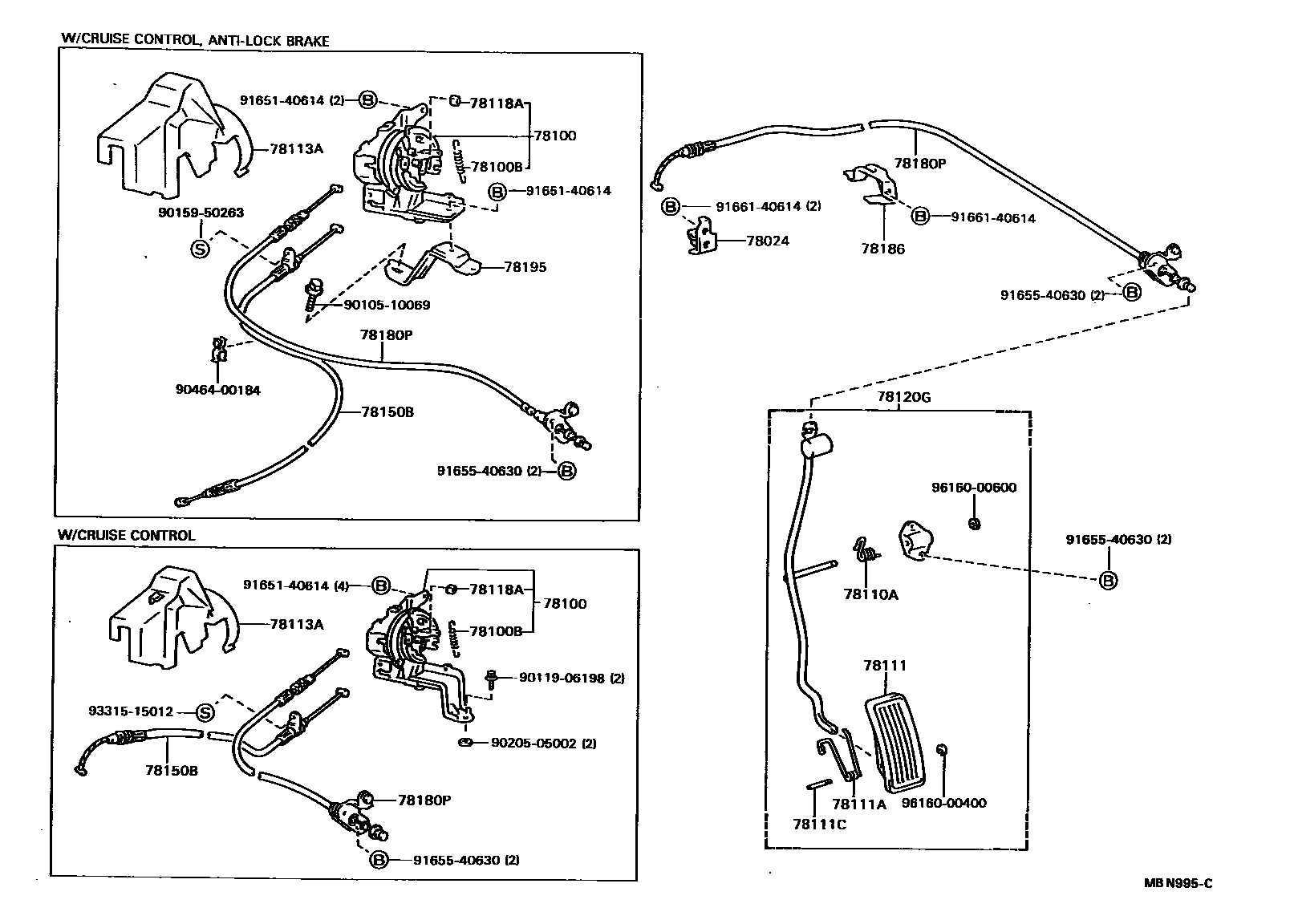

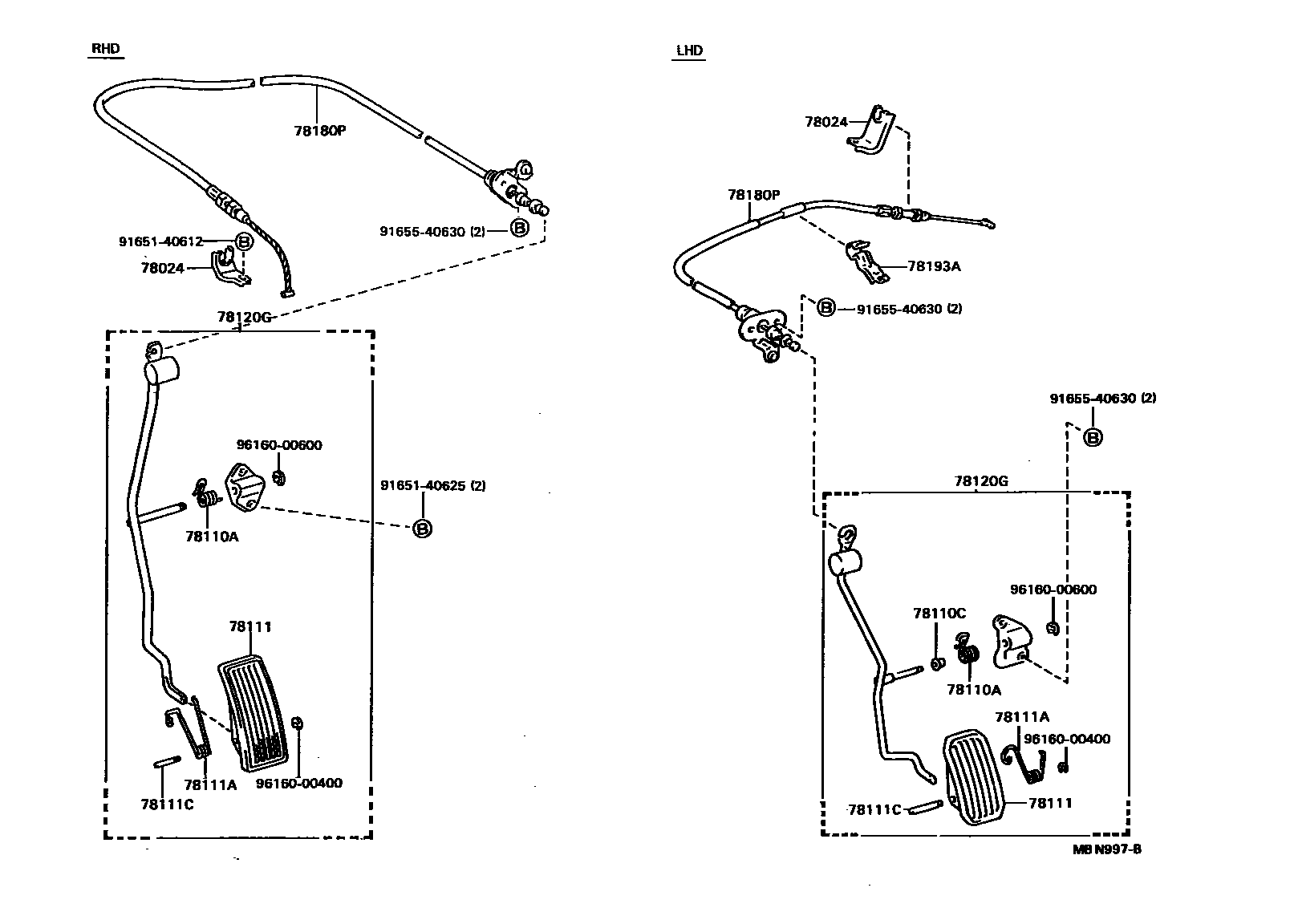

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-32040 · 78024-32050 · 78024-32070 · 78024-32080 · 78024-32110 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-32050 · 78100-32060 |
| 78100B | Spring (for accelerator pedal linkage) | 90507-08007 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-23069 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-12023 |
| 78111 | accelerator pedal | 78111-12100 · 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18046 · 90508-18075 · 90508-23003 · 90508-30006 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-20130 |
| 78118A | accelerator pedal stop | 78118-12010 |
| 78120G | Accelerator pedal lever assembly | 78120-32070 · 78120-32080 · 78120-32100 · 78120-32110 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-32071 · 78150-32090 · 78150-32151 · 78150-32180 |
| 78180P | Accelerator pedal control cable assembly | 78180-32100 · 78180-32110 · 78180-32160 · 78180-32171 · 78180-32181 · 78180-32192 · 78180-32200 · 78180-32241 · 78180-32290 · 78180-32310 · 78180-32330 · 78180-32341 · 78180-32350 · 78180-32360 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-32040 · 78186-32050 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-32040 · 78189-32050 |
| 78193A | No. 3 accelerator pedal control cable bracket | 78193-32050 · 78193-32060 |
| 78195 | Accelerator pedal connecting rod bracket | 78195-32051 |
