Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 4 images and 30 PNC and OE references.

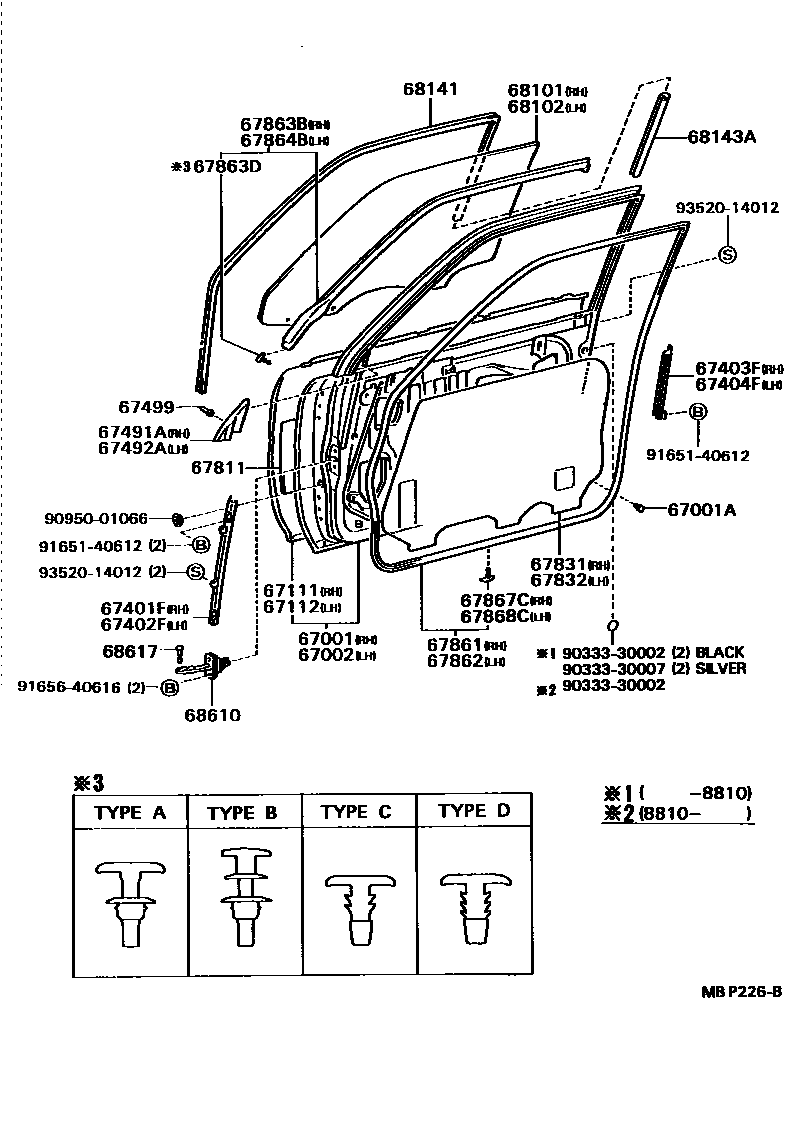

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBP226B
前门板和前门玻璃 — MBP226B (198808 – 999999)

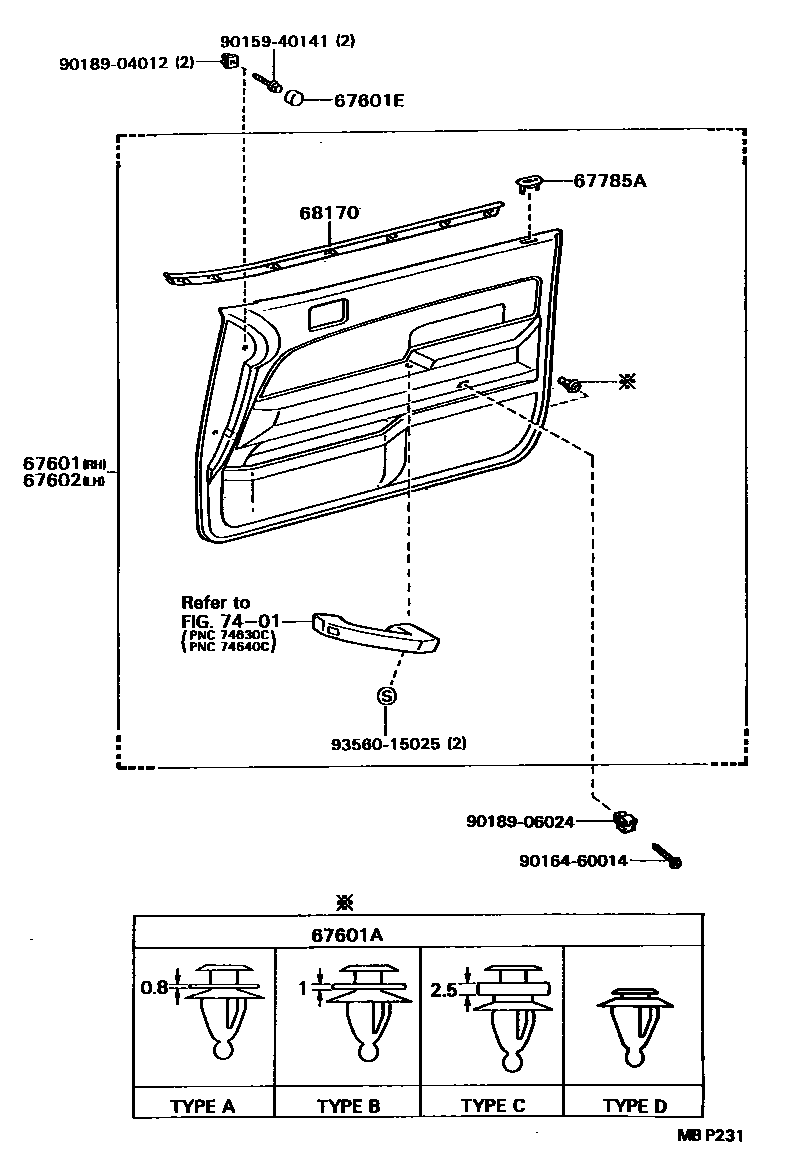

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBP231
前门板和前门玻璃 — MBP231 (198808 – 999999)

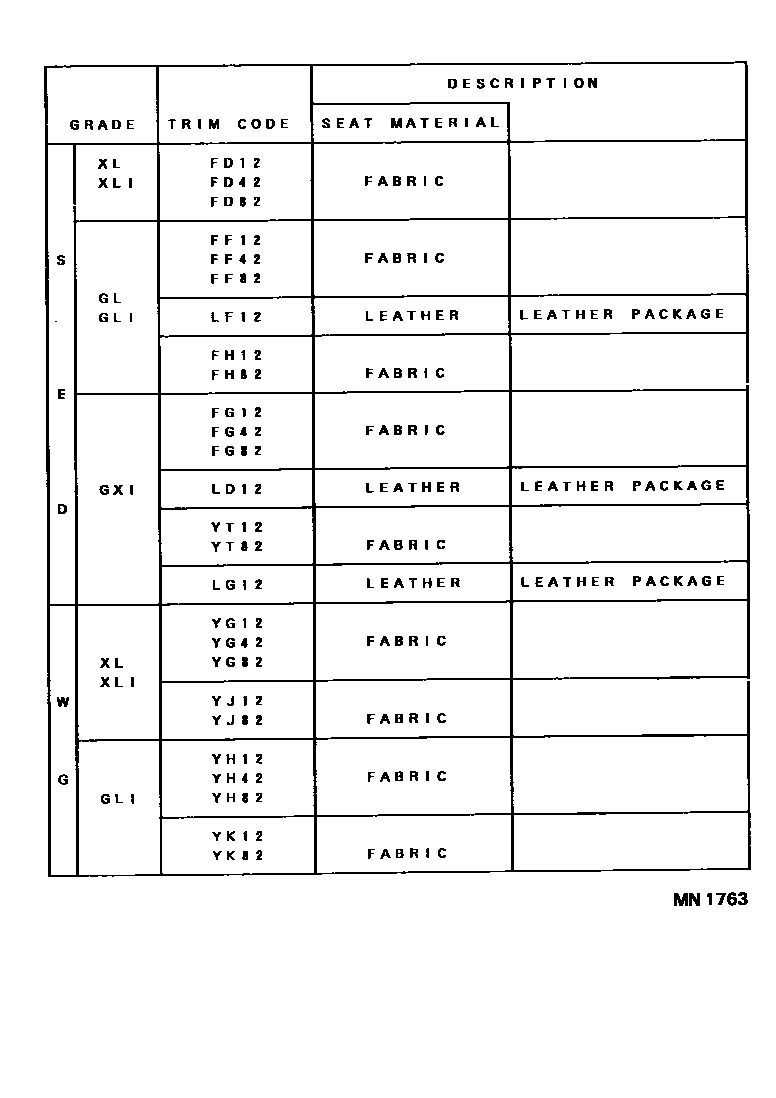

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MN1763
前门板和前门玻璃 — MN1763 (198808 – 199008)
Toyota CAMRY 前门板和前门玻璃 EPC diagram — MN1764
前门板和前门玻璃 — MN1764 (199008 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-32200
67001AFront door panel cushion90541-09006
67002Left front door panel sub-assembly67002-32190
67111Outer right front door panel67111-32040
67112Outer left front door panel67112-32040
67401FRight front door front lower door frame sub-assembly67401-32080
67402FLeft front door front lower door frame sub-assembly67402-32080
67403FRight front door rear lower door frame sub-assembly67403-32040
67404FLeft front door rear lower door frame sub-assembly67404-32040
67491ARight front door lower door frame bracket decorative strip67491-32070 · 67491-32080
67492ALeft front door lower door frame bracket decorative strip67492-32070 · 67492-32080
67499Front door lower door frame bracket trim strip fixing67499-30020 · 67499-32010
67601AFixings (for front door trim)67771-14030 · 67771-14040 · 67771-32040 · 67771-32060
67811Front door silencer pad67812-12010
67831Right front door access hole cover67831-32050
67832Left front door access hole cover67832-32050
67861Right front door seal67861-32110
67862Left front door seal67862-32110
67863BRight front door seal No. 267863-32010
67863DRight side fixing piece (for front door seal No. 2)67868-22010 · 67868-32030 · 67869-20020
67864BLeft front door seal No. 267864-32010
67867CRight front door seal strip fixing67868-30040 · 67868-32030
67868CLeft front door seal strip fixing67867-20010 · 67868-32030
68101Right front door glass sub-assembly68111-32100
68102Left front door glass sub-assembly68112-32100
68141Front door glass lift chute68141-32070 · 68141-32071 · 68151-32010 · 68151-32011
68143AFront door glass lift channel No. 268143-32040
68170Front door glass inner sealing strip assembly68170-32040
68610Front door opening limiter assembly68610-32041
68617Front door opening limiter pin68617-32010
