Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

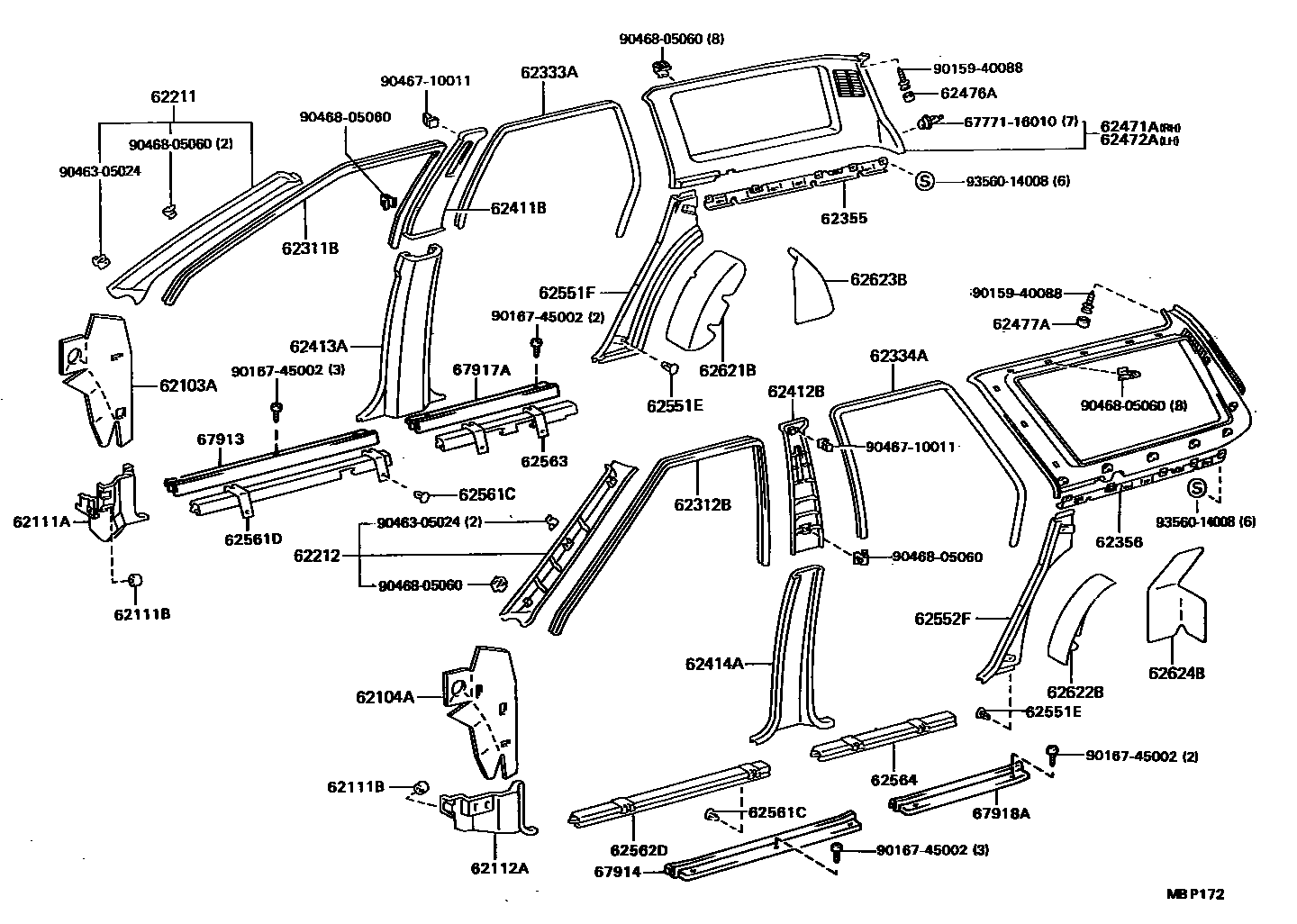

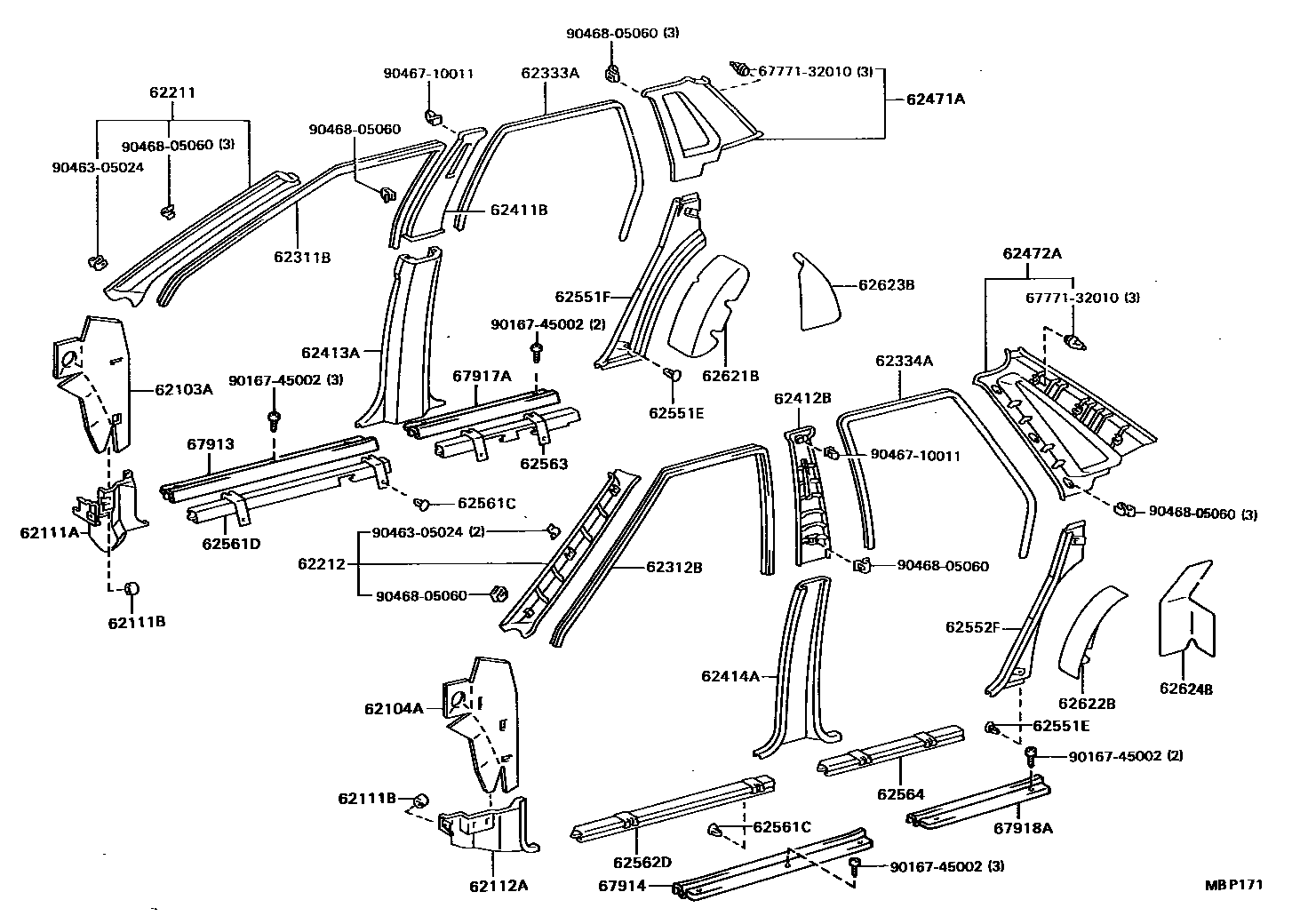

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62103A | Right front wall side heat insulation pad sub-assembly | 62105-32030 · 62105-32040 |
| 62104A | Left front wall side heat insulation pad sub-assembly | 62106-32030 · 62106-32040 |
| 62111B | Clip (for cowl side trim panel) | 90467-06074 |
| 62355 | Right corner window inner trim strip fixing | 62355-32010 |
| 62356 | Left corner window inner trim strip fixing | 62356-32010 |
| 62561D | Right front door inner sill protection strip | 62561-32020 |
| 62562D | Left front door inner sill protection strip | 62562-32020 |
| 62563 | Right rear door inner sill protection strip | 62563-03010 · 62563-32020 |
| 62564 | Left rear door inner sill protection strip | 62564-03010 · 62564-32020 |
| 62621B | Right front side wheel housing lining block | 67812-12010 |
| 62622B | Left front side wheel housing lining block | 67812-12010 |
| 62623B | Right rear side wheel housing lining block | 62623-32010 |
| 62624B | Left rear side wheel housing lining block | 62624-20030 · 62624-32010 |
