Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

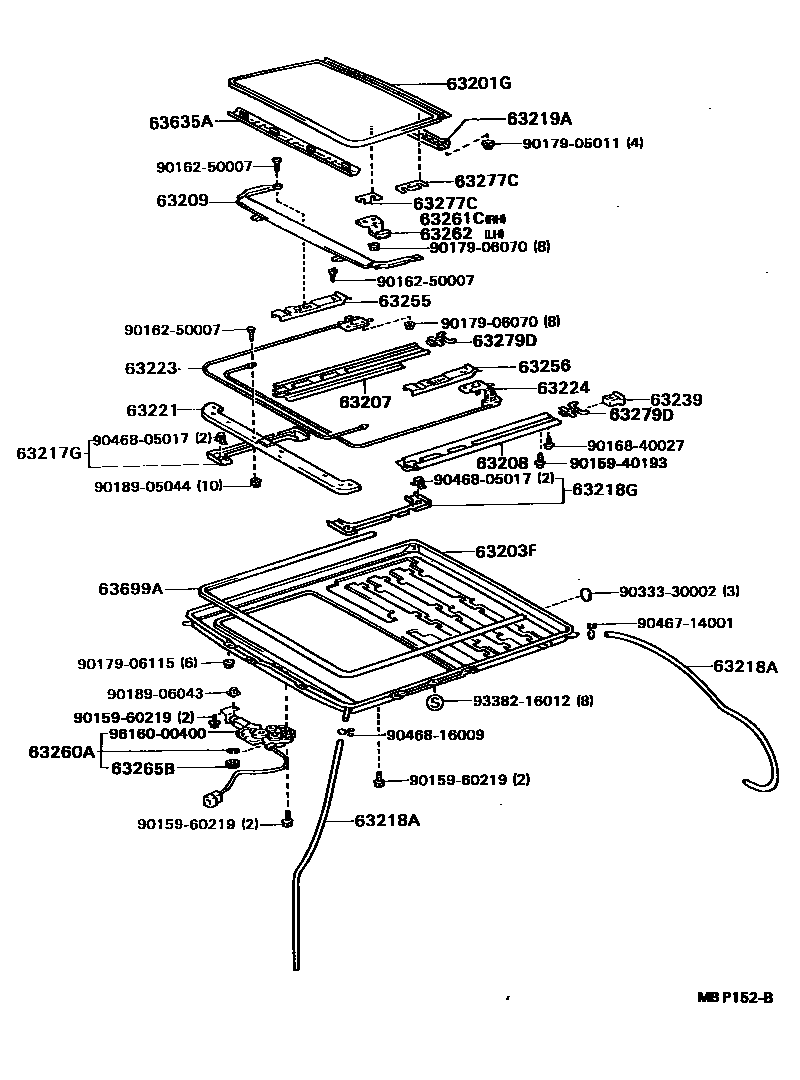

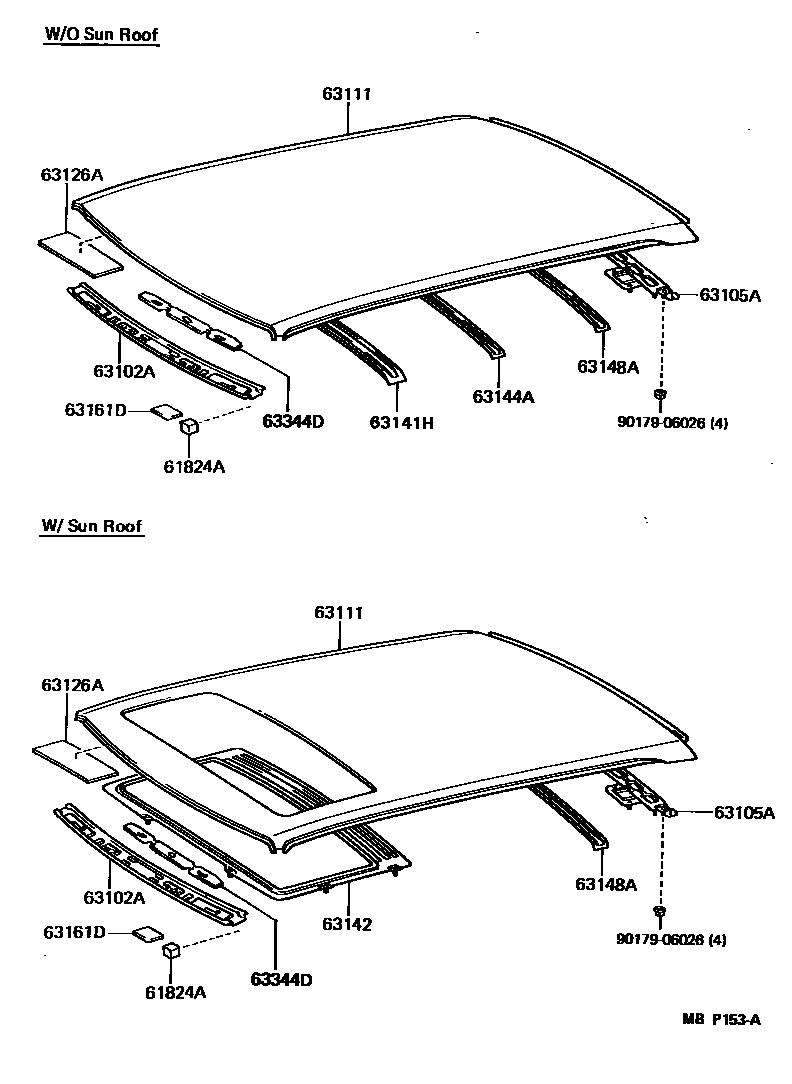

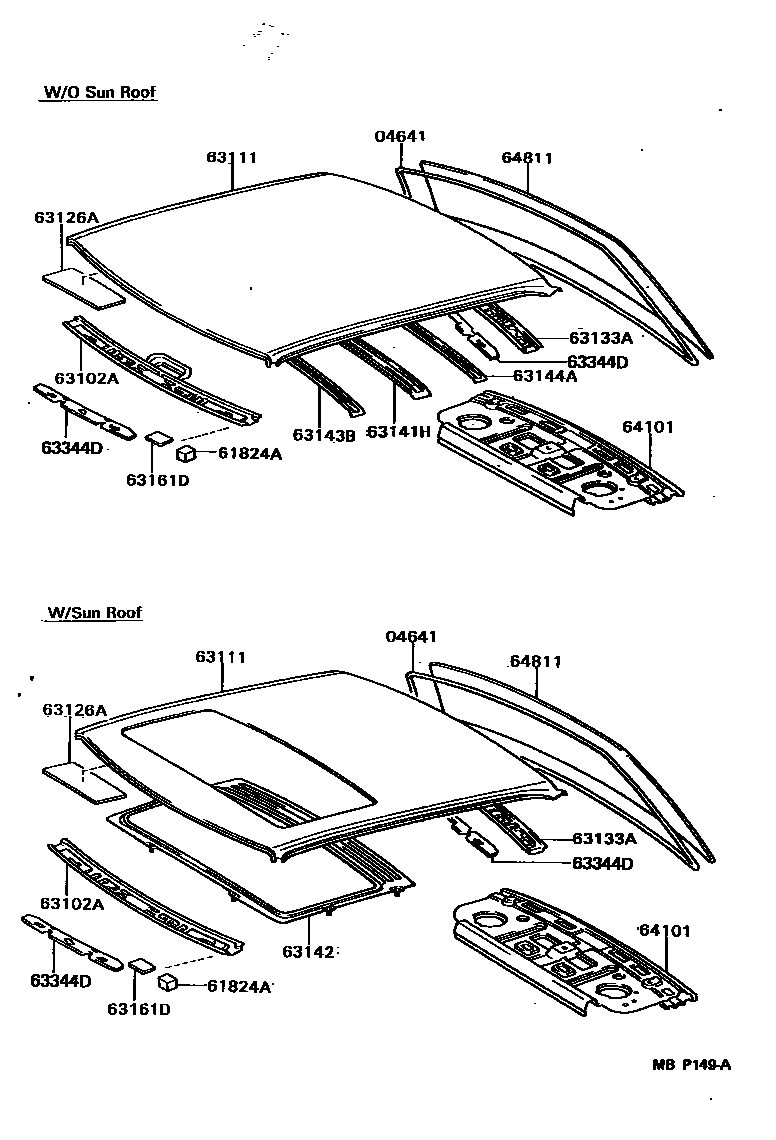

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-30040 |
| 61824A | Noise Control Panel No. 1 | 62475-12040 |
| 63102A | Windshield roof sub-assembly | 63102-32050 · 63102-32060 |
| 63105A | Back door opening frame sub-assembly | 63105-32040 |
| 63111 | roof panel | 63111-32050 · 63111-32060 · 63111-32070 · 63111-32080 |
| 63126A | Windshield roof shock absorber | 63126-32010 |
| 63133A | upper frame of back window | 63133-32020 |
| 63141H | Center roof panel reinforcement | 63141-32030 · 63141-32040 |
| 63142 | No. 2 roof panel reinforcement | 63142-32020 · 63142-32030 |
| 63143B | No. 3 roof panel reinforcement | 63143-32010 |
| 63144A | No. 4 roof panel reinforcement | 63144-32010 · 63144-32020 |
| 63148A | No. 7 roof panel reinforcement | 63148-32010 |
| 63161D | No. 1 roof panel | 61815-32020 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-32022 · 63201-32032 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-32030 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-32010 · 63207-32011 · 63207-32012 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-32010 · 63208-32011 · 63208-32012 |
| 63209 | Roof deflector sub-assembly | 63209-32012 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-20080 · 63249-32050 · 63249-32060 |
| 63221 | Sliding sunroof cable duct | 63221-32010 |
| 63223 | Right sliding sunroof transmission cable | 63223-32010 · 63223-32011 · 63223-32012 |
| 63224 | Left sliding sunroof transmission cable | 63224-32010 · 63224-32011 · 63224-32012 |
| 63239 | Sliding roof panel stop | 63239-24010 |
| 63255 | Right sliding sunroof guide cover | 63255-32010 |
| 63256 | Left sliding sunroof guide cover | 63255-32010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-32010 · 63260-32011 |
| 63261C | Right front sliding sunroof slider | 63261-32010 · 63261-32011 |
| 63262 | Left front sliding sunroof slider | 63262-32010 · 63262-32011 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 · 63277-32010 · 63277-32020 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 |
| 63344D | No. 4 roof silencer mat | 63344-32010 |
| 63699A | Sliding sunroof guide seals | 63699-12040 |
| 64101 | Upper back panel sub-assembly | 64101-32050 · 64101-32070 |
| 64811 | back window glass | 64811-32081 · 64811-32111 |
