Toyota CAMRY 中央扶手箱和支架 — Figure 5806

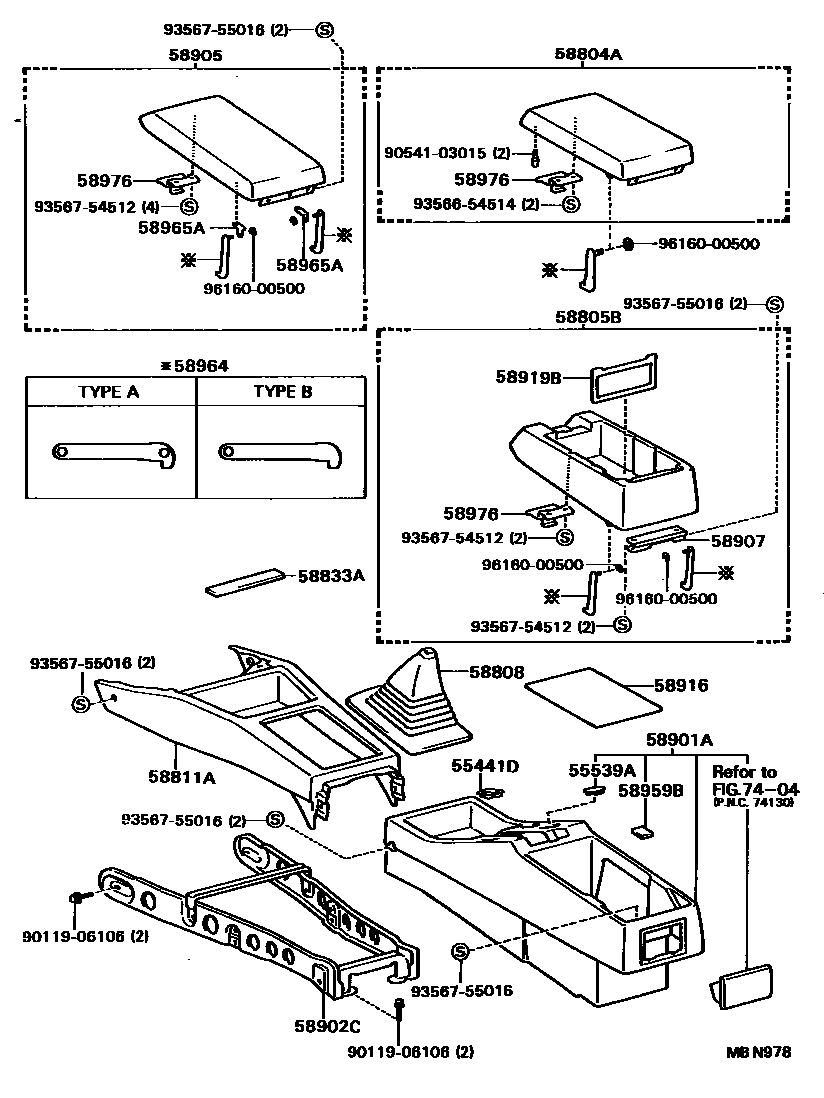

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58808 | Shift hole cover sub-assembly | 58808-32020 |
| 58833A | Armrest box upper cover | 58833-32010 |
| 58902C | Armrest box mounting bracket sub-assembly | 58902-32011 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-89101 |
| 58916 | Armrest box bottom pad | 58916-32040 · 58916-32070 |
| 58919B | Armrest box nameplate | 58919-32010 |
| 58959B | Armrest box cover cushion | 58959-16010 |
| 58964 | Armrest box cover No. 1 stop | 58964-30040 · 58964-32040 |
| 58965A | Armrest box cover No. 2 stopper | 58965-12010 · 58965-20020 |
| 58976 | Armrest box lid lock | 58908-32020 · 58976-22020 |
