Toyota CAMRY 仪表板和手套箱 — Figure 5501

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 2 images and 26 PNC and OE references.

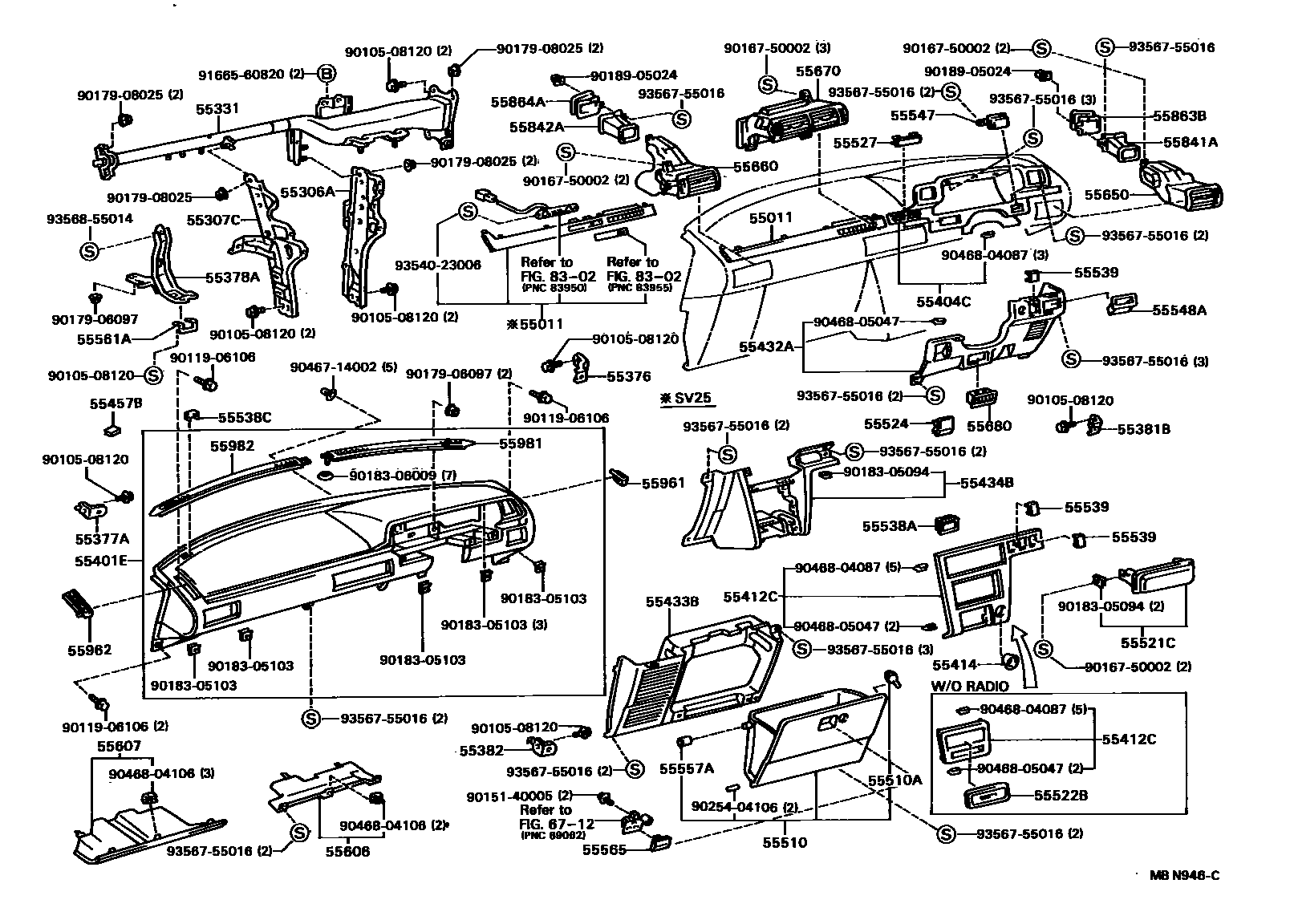

Toyota CAMRY 仪表板和手套箱 EPC diagram — MBN946C
仪表板和手套箱 — MBN946C (198808 – 999999)

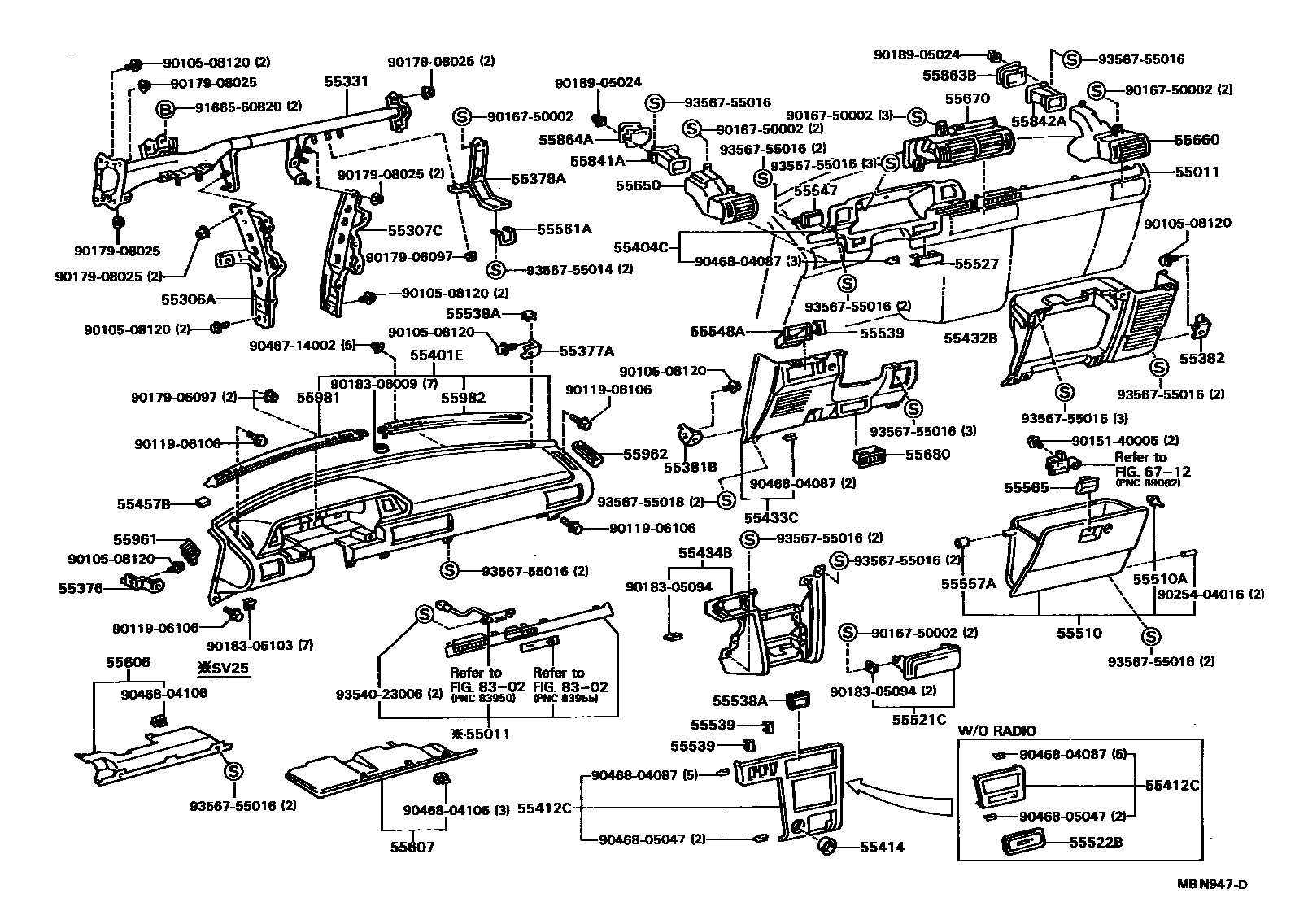

Toyota CAMRY 仪表板和手套箱 EPC diagram — MBN947D
仪表板和手套箱 — MBN947D (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
55011Dashboard safety pad trim sub-assembly55011-32110 · 55011-32120 · 55011-32130 · 55011-32140 · 55011-32150 · 55011-32160
55306AInstrument panel No. 1 bracket sub-assembly55306-32070 · 55306-32080
55307CInstrument panel No. 2 bracket sub-assembly55307-32040 · 55307-32050
55331Dashboard reinforcement55330-32060 · 55330-32070
55376Instrument panel mounting bracket No. 155376-32030
55377AInstrument panel mounting bracket No. 255377-32030
55378AGlovebox lid lock mounting bracket55378-32040
55381BNo. 1 decorative panel mounting bracket55381-32040 · 55381-32050
55382No. 2 decorative panel mounting bracket55382-32020 · 55382-32030
55412CCenter instrument cluster No. 1 decorative panel55410-32010 · 55410-32020 · 55412-32070 · 55412-32080
55414Cigarette lighter hole frame55477-12060
55457BDashboard safety pad spacer55457-22030
55510ACushion (for glovebox lid)90541-03015
55521Cstereo system hole cover55521-20120
55522BRadio tuner opening cover55522-20060 · 55522-32010
55538ACooler switch hole cover55538-16020
55548ADashboard hole cover55548-32040
55557AGlove box cover limit pad55557-16010
55561AGlove box lid lock55561-32020
55606Instrument panel No. 1 bottom cover sub-assembly55606-32010 · 55606-32020
55607Instrument panel No. 2 bottom cover sub-assembly55607-32010 · 55607-32020
55680Instrument panel No. 1 down-regulator assembly55680-14030
55841AFrom the front wall to the air register No. 1 air duct55841-32010 · 55841-32020
55842AFrom the front wall to the air register No. 2 air duct55842-32010 · 55842-32020
55863BNo. 1 side ventilation duct dust cover55863-32010
55864ANo. 2 side ventilation duct dust cover55864-32010
