Toyota CAMRY 动力转向配管 — Figure 4503

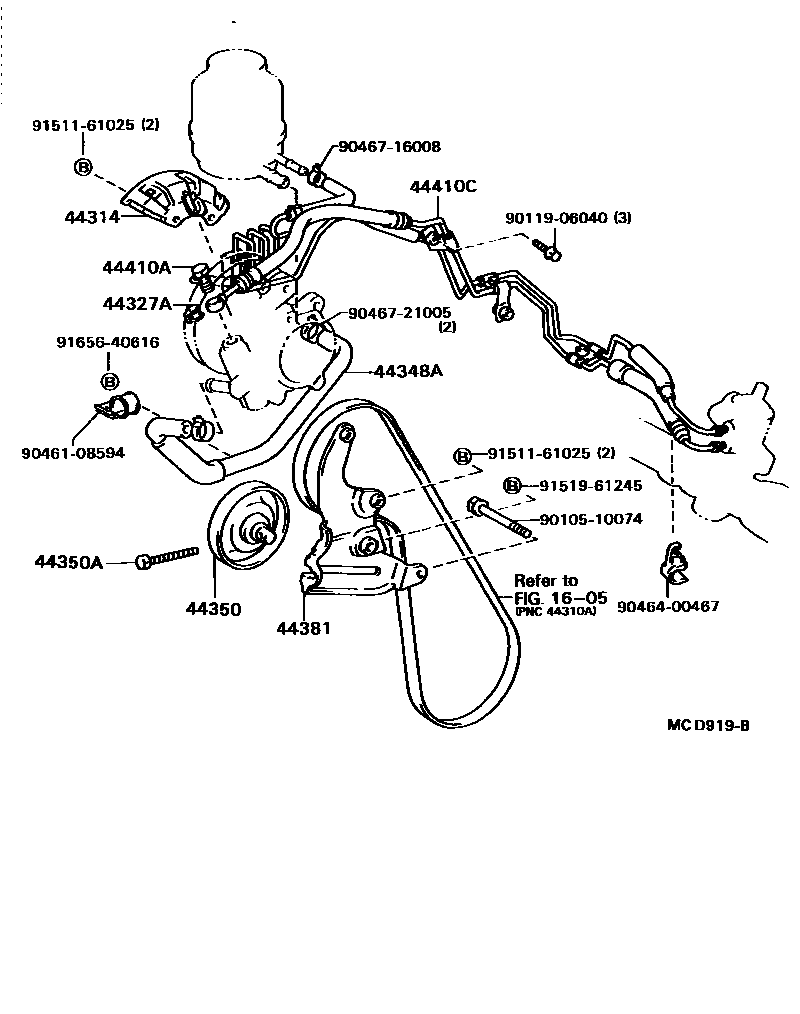

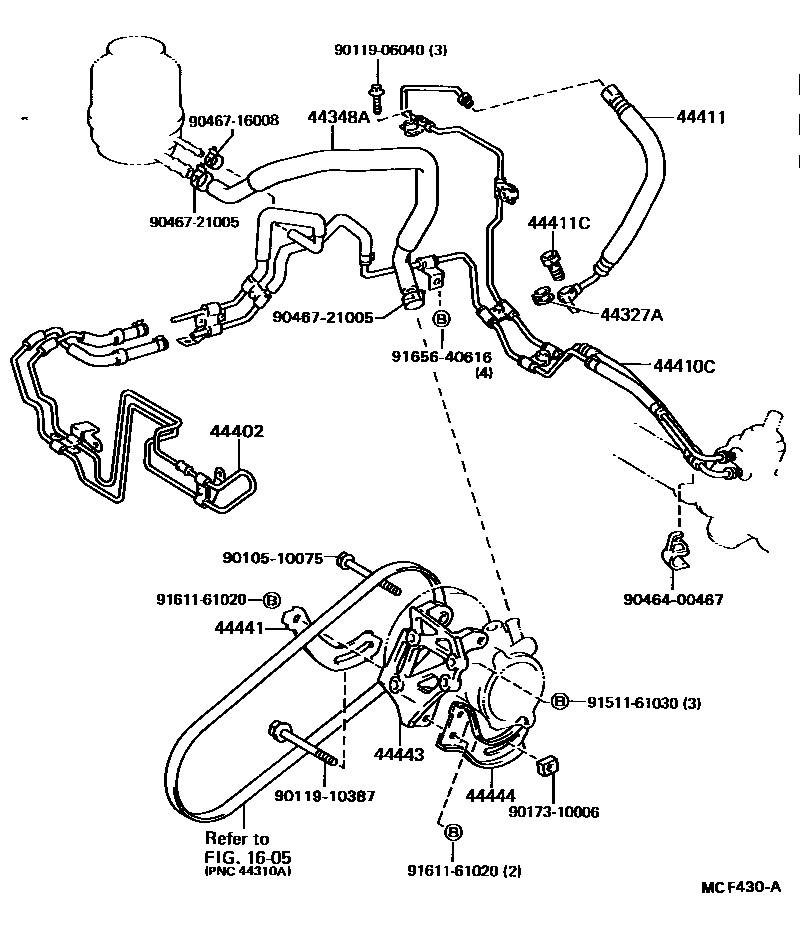

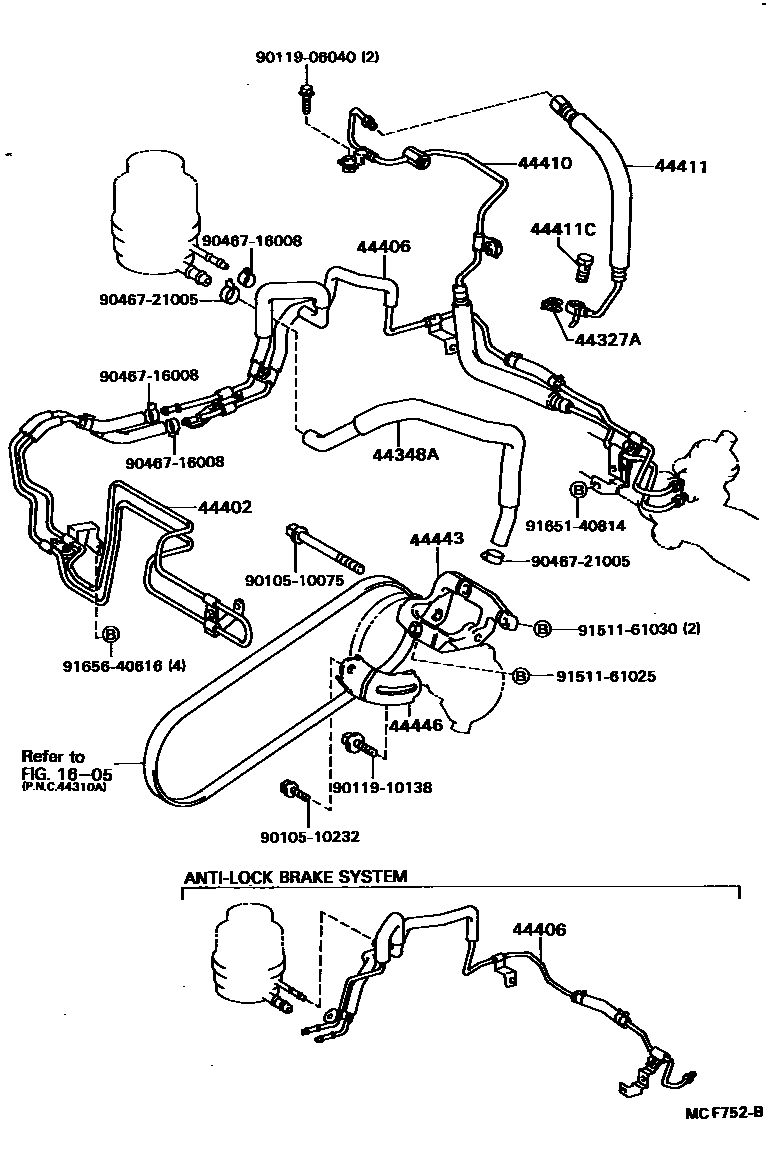

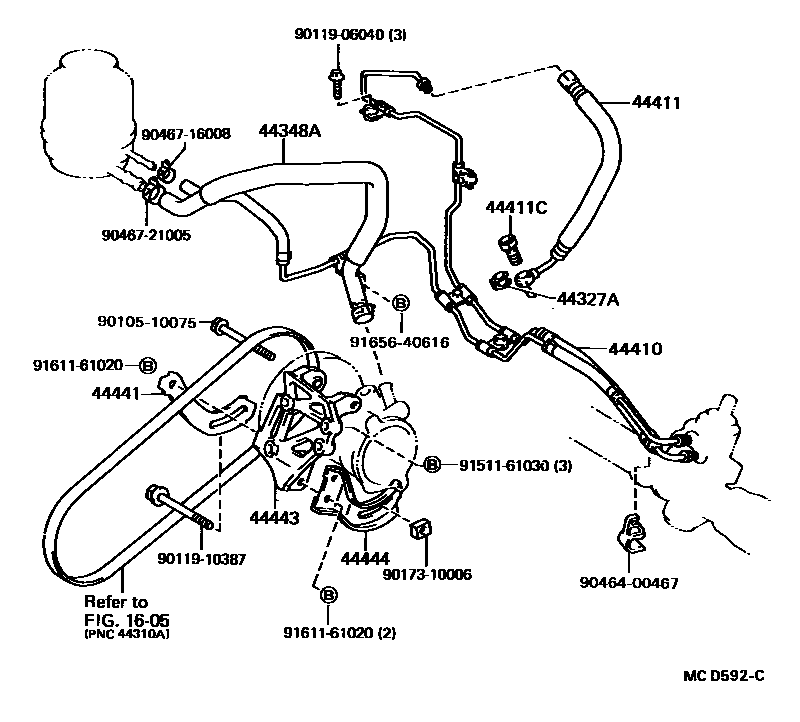

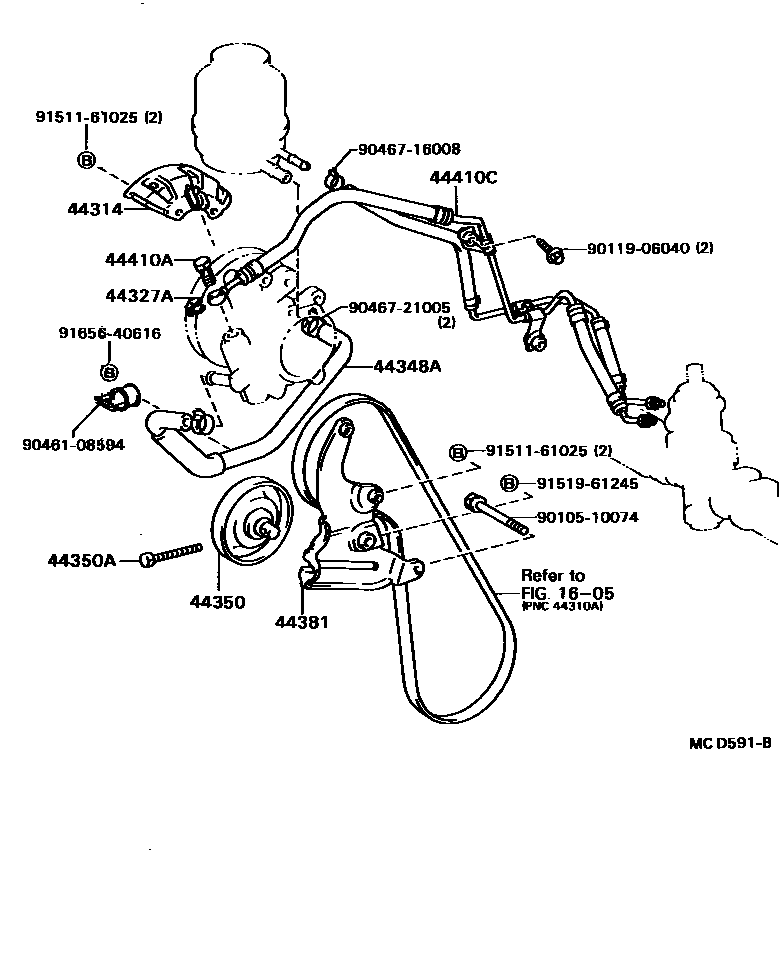

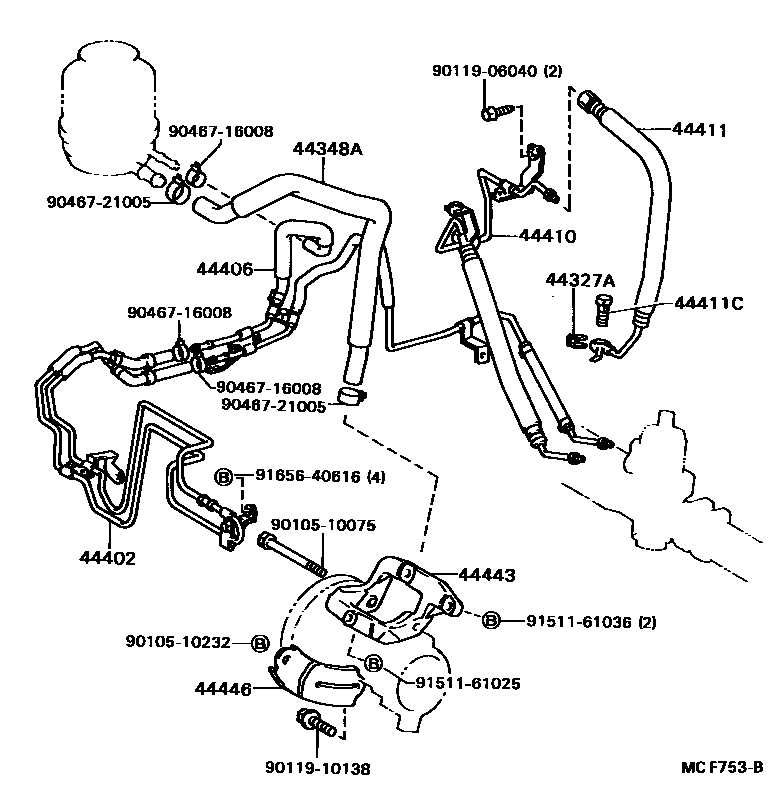

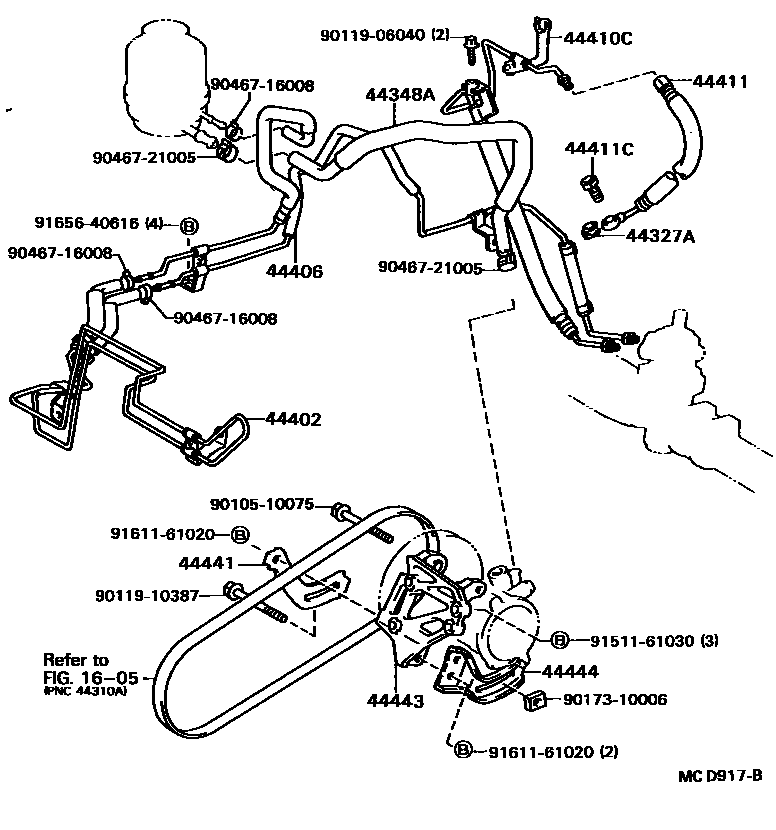

Toyota CAMRY EPC diagram 4503, 动力转向配管, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44314 | pulley cover | 44314-12010 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-32090 · 44348-32100 · 44348-32110 · 44348-32120 |
| 44350 | Power steering idler assembly | 44350-12050 · 44350-12051 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 |
| 44381 | Power steering idler bracket | 44381-12020 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-32031 · 44402-32090 |
| 44406 | Oil return pipe sub-assembly | 44406-32080 · 44406-32090 · 44406-32140 · 44406-32150 |
| 44410 | Pressure supply pipe assembly | 44410-32240 · 44410-32320 · 44410-32370 · 44410-32380 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 |
| 44410C | No. 1 pressure supply pipe assembly | 44410-32290 · 44410-32300 · 44410-32330 · 44410-32340 · 44410-32350 |
| 44411 | pressure supply hose | 44411-32050 · 44411-32070 · 44411-32080 · 44411-32090 |
| 44411C | Connector bolt (for pressure supply hose) | 90401-16008 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-20050 · 44443-32041 |
| 44444 | Pump back stay | 44444-20030 |
| 44446 | Adjust the stand | 44446-32010 |
