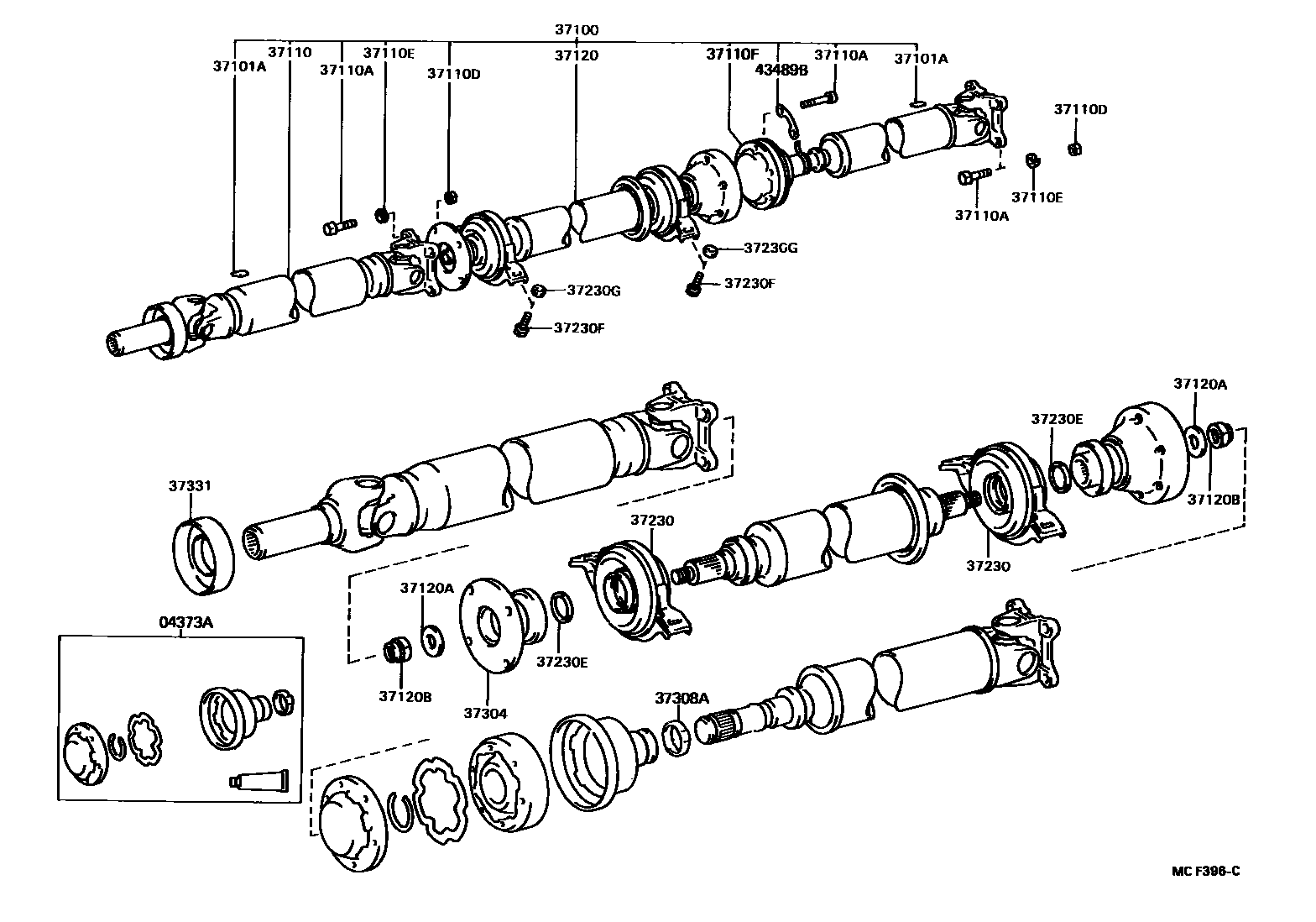

Toyota CAMRY Propeller Shaft & Universal Joint — Figure 3701
Toyota CAMRY EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04373A | Universal joint dust boot assembly | 04373-12010 |
| 37100 | Drive shaft assembly with central bearing | 37100-32020 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 |
| 37110 | Drive shaft assembly | 37110-32010 |
| 37110A | Bolt (for drive shaft) | 90105-10085 · 90110-08016 |
| 37110D | Nut (for drive shaft) | 90179-10059 |
| 37110E | Washer (for drive shaft) | 90204-10002 |
| 37110F | Rear drive shaft assembly | 37110-32030 |
| 37120 | Intermediate drive shaft assembly | 37120-32010 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-32011 · 37230-32012 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-25005 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10444 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10081 · 90201-10083 · 90201-10084 · 90201-10095 |
| 37304 | Universal joint flange sub-assembly | 37304-20010 |
| 37308A | Clamp (for universal joint cover) | 90949-01431 |
| 37331 | Sliding shaft dust cover | 37331-30010 |
| 43489B | Constant velocity joint washer | 43489-12010 |
