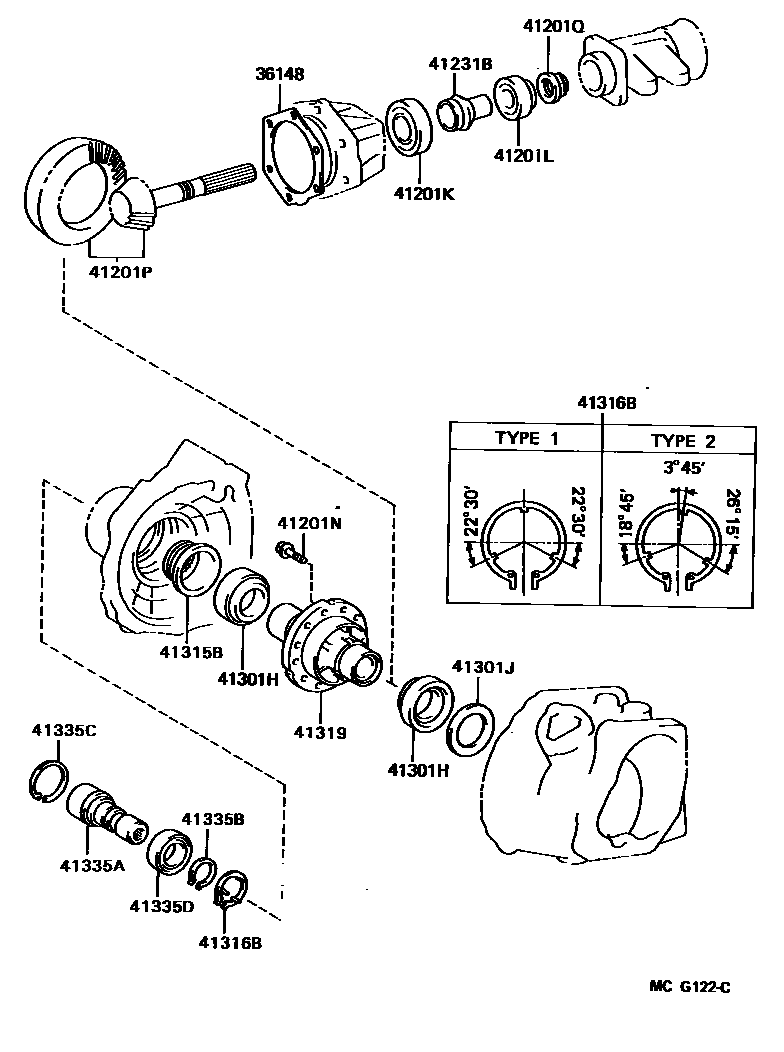

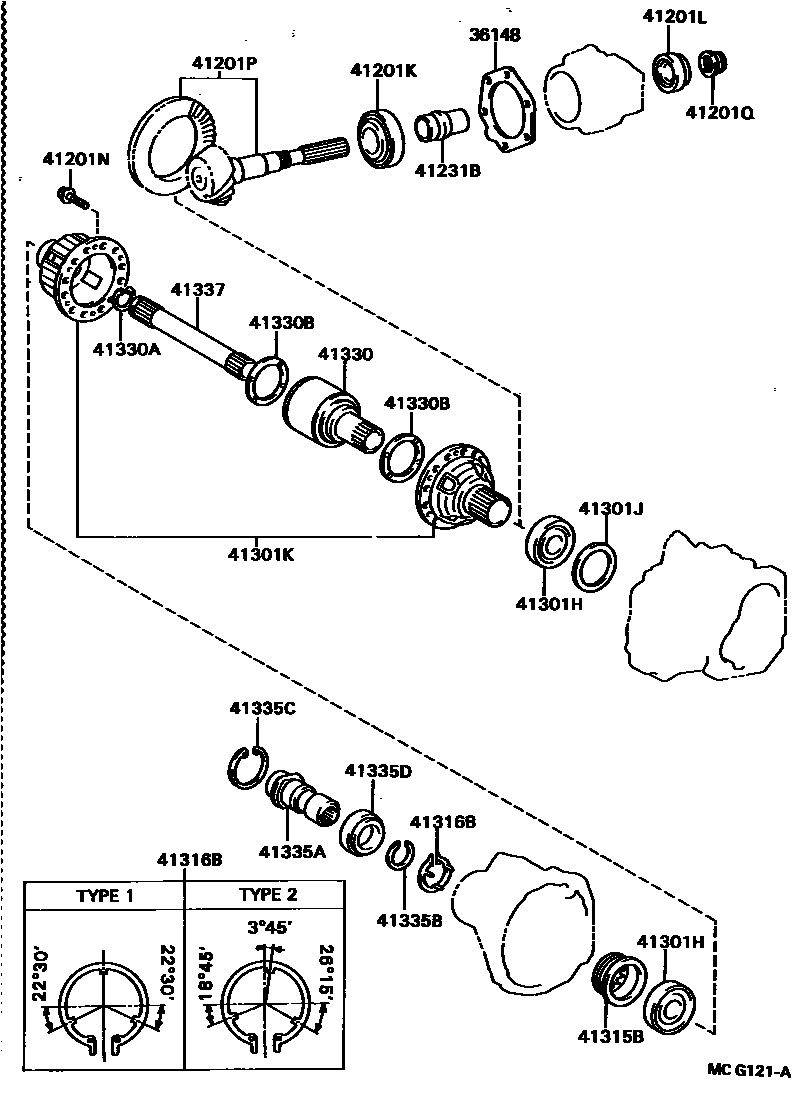

Toyota CAMRY Transfer Gear — Figure 3610
Toyota CAMRY EPC diagram 3610, Transfer Gear, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36148 | Pinion bearing cover gasket | 36148-20010 · 36148-20020 · 36148-20030 · 36148-20040 · 36148-20050 · 36148-20060 · 36148-20070 · 36148-20080 · 36148-20090 · 36148-20100 |
| 41201K | Bearing (for transfer case front driven pinion) | 90366-40036 · 90366-40044 · 90366-40055 |
| 41201L | Bearing (for transfer case rear driven pinion) | 90366-32004 · 90366-32019 |
| 41201N | Bolt (for transfer case gear) | 90105-11026 |
| 41201P | Transfer gear assembly | 41201-12160 · 41201-20210 |
| 41201Q | Nut (for transfer case gear) | 90179-30004 |
| 41231B | Transfer case pinion bearing spacer | 41231-12040 · 41231-20030 |
| 41301H | Bearing (for ring gear mounting housing) | 90366-54008 · 90366-55017 · 90366-55022 · 90366-58001 |
| 41301J | Flat washer (for ring gear mounting housing) | 90201-68001 · 90201-68002 · 90201-68003 · 90201-68004 · 90201-68005 · 90201-68006 · 90201-68007 · 90201-68008 · 90201-68009 · 90201-68010 · 90201-68011 · 90201-68012 · 90201-68013 · 90201-68014 · 90201-68015 · 90201-68016 · 90201-68017 · 90201-68018 · 90201-68019 · 90201-68020 · 90201-68021 · 90201-68022 · 90201-68023 · 90201-68024 · 90201-68025 · 90201-68026 · 90201-68027 · 90201-68028 · 90201-68029 · 90201-68030 · 90201-68031 · 90201-68032 · 90201-68033 · 90201-68034 · 90201-68035 · 90201-68036 · 90201-68037 · 90201-68038 · 90201-68039 · 90201-68040 · 90201-68041 · 90201-68042 · 90201-68043 · 90201-68044 · 90201-68045 · 90201-68046 · 90201-68047 · 90201-68048 |
| 41301K | Center differential ring gear mounting housing sub-assembly | 41301-20080 |
| 41315B | Bearing adjusting nut | 41315-12030 · 41315-20030 |
| 41316B | Adjust nut locking plate | 41316-20030 · 41316-20040 |
| 41319 | Transfer gear ring gear mounting housing | 41319-12010 |
| 41330 | Center differential control coupling assembly | 41330-20010 |
| 41330A | Hole snap ring (for differential countershaft) | 90521-41004 |
| 41330B | Washer (for center differential control coupling) | 90209-69001 |
| 41335A | Differential side gear shaft support | 41335-12011 |
| 41335B | Shaft snap ring (for side gear shaft support) | 90520-40001 |
| 41335C | Hole snap ring (for side gear shaft support) | 90521-75004 |
| 41335D | Bearings (for side gear shaft supports) | 90365-44003 · 90365-44005 · 90365-44006 |
| 41337 | No. 2 differential side gear countershaft | 41337-20010 |
