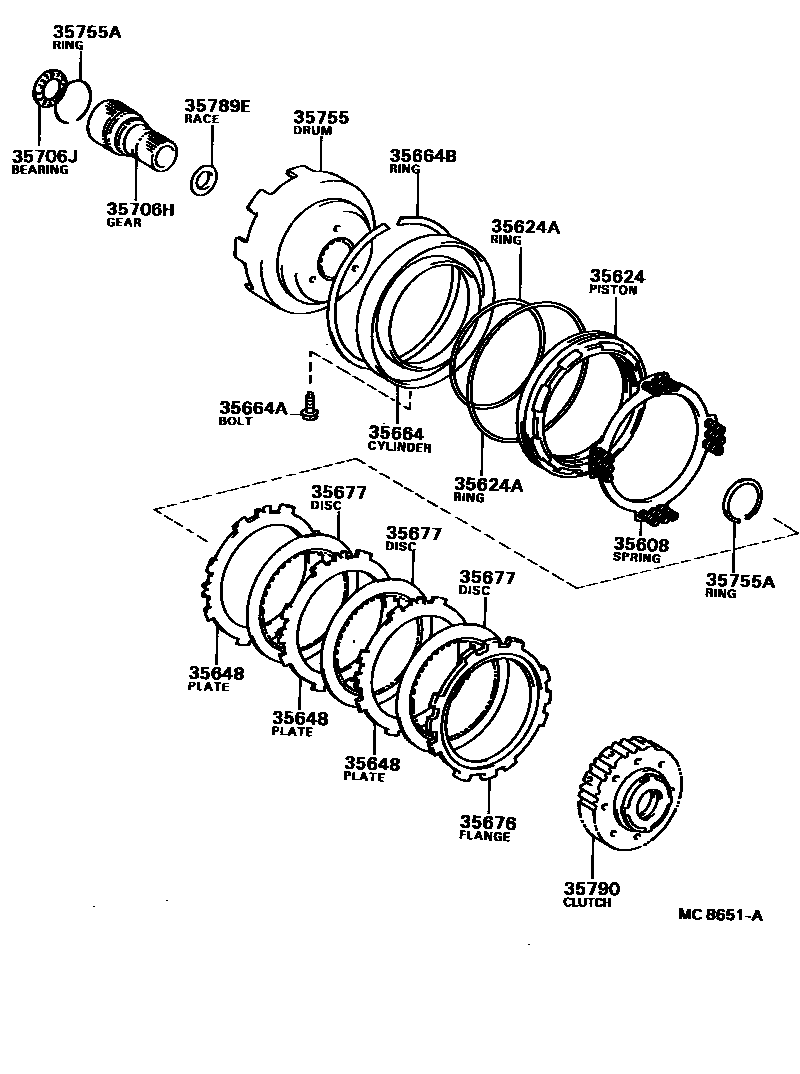

Toyota CAMRY 中央支架和行星太阳齿轮(ATM) — Figure 3508
Toyota CAMRY EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35608 | Second gear brake piston return spring sub-assembly | 35608-32010 |
| 35624 | Second gear brake piston | 35624-32010 |
| 35624A | O-ring (for second gear brake piston) | 90301-99021 · 90301-99023 |
| 35648 | Clutch disc (for second gear brake) | 35648-32010 · 35648-32030 |
| 35664 | Second gear brake cylinder | 35664-32010 |
| 35664A | Bolt (for second gear brake cylinder) | 90109-06060 |
| 35664B | Hole snap ring (for second gear brake cylinder) | 90521-99013 |
| 35676 | Brake flange (for second gear brake) | 35676-32010 |
| 35677 | Clutch disc (for second gear brake) | 35677-32050 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-32012 · 35706-32021 · 35706-32030 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-30006 · 90374-30008 |
| 35755 | sun gear input drum | 35755-32020 · 35755-32030 |
| 35755A | Shaft snap ring (for sun gear input drum) | 90520-36017 · 90520-44002 · 90520-47003 |
| 35789E | Thrust bearing race (for planetary gear train sun gear) | 35789-22010 |
| 35790 | One-way clutch assembly | 35790-32020 · 35790-32030 · 35790-32031 · 35790-32050 |
