Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 2 PNC and OE references.

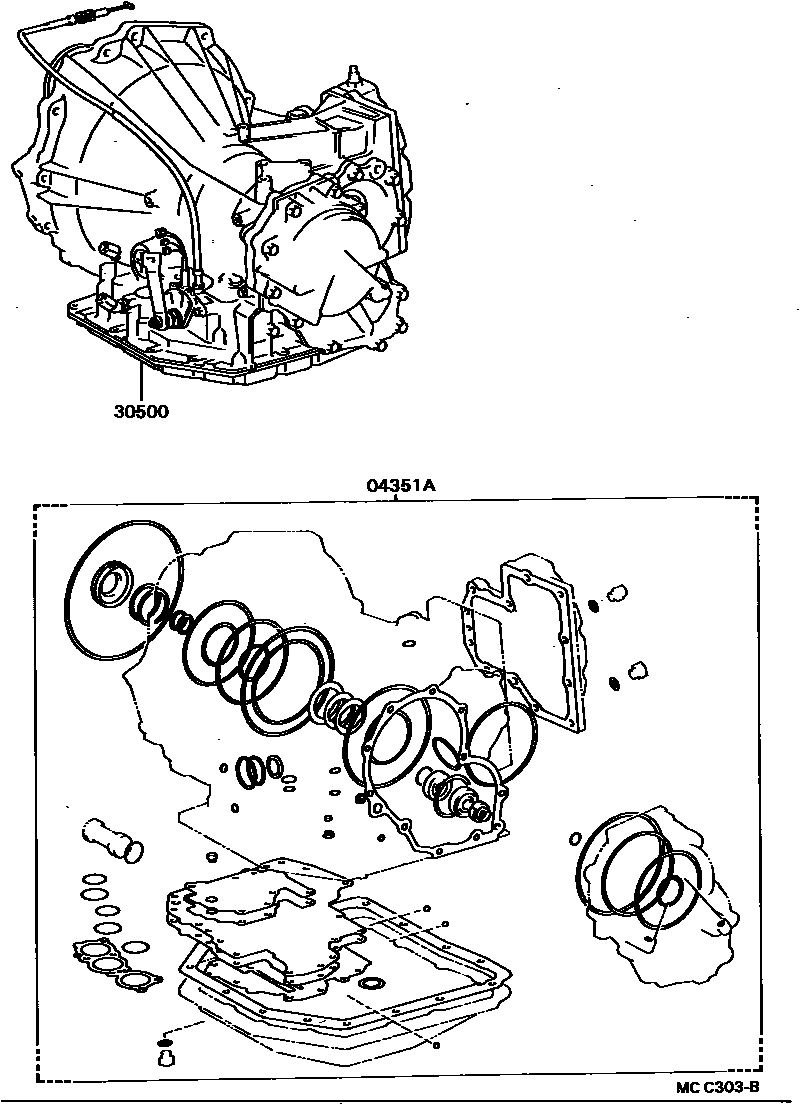

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — MCC303B
传动桥或变速器总成和衬垫组件(ATM) — MCC303B (198808 – 999999)

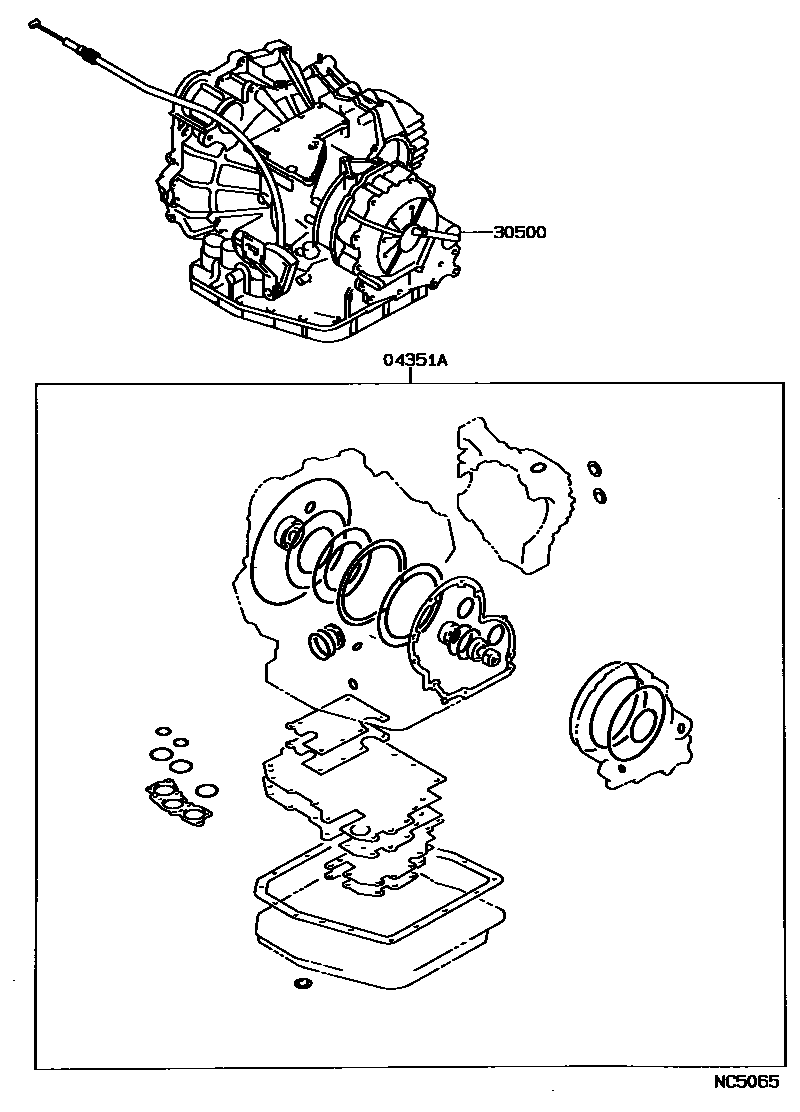

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — NC5065
传动桥或变速器总成和衬垫组件(ATM) — NC5065 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
04351ATransaxle overhaul gasket assembly (ATM)04351-20080 · 04351-32050 · 04351-32051
30500Automatic transmission axle assembly30500-32301 · 30500-32302 · 30500-32470 · 30500-32471
