Toyota CAMRY 离合器壳和变速器壳(MTM) — Figure 3302

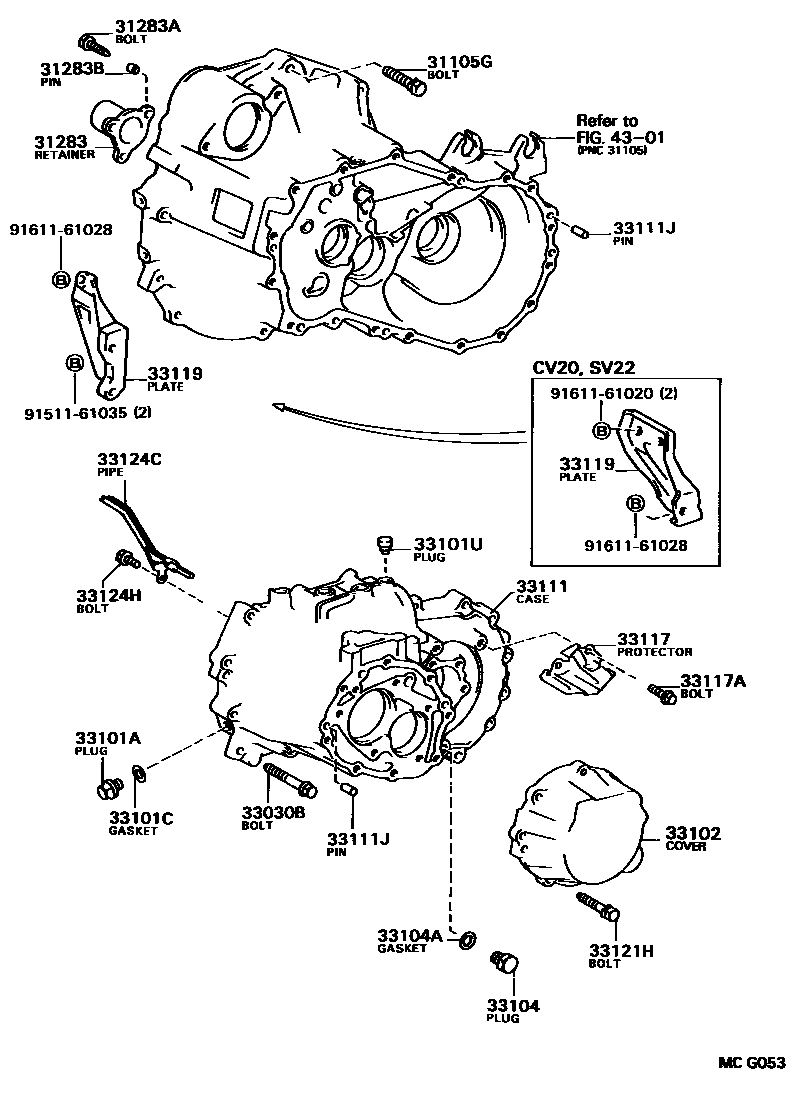

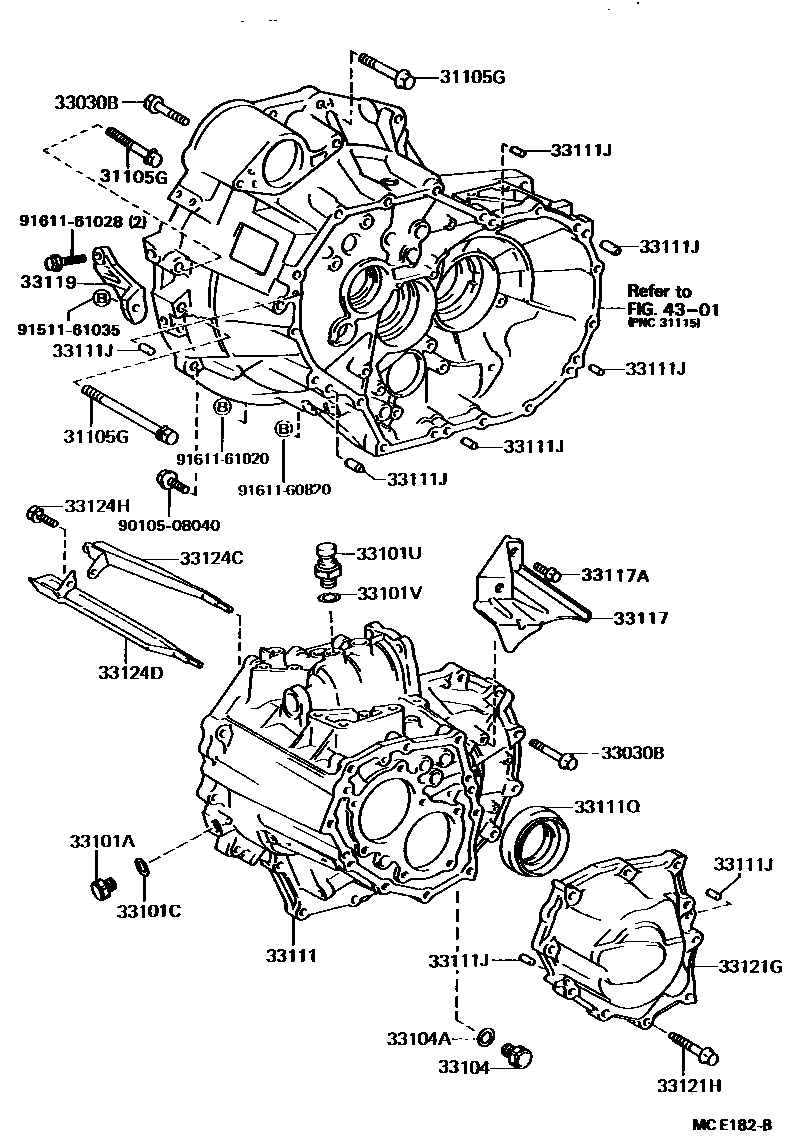

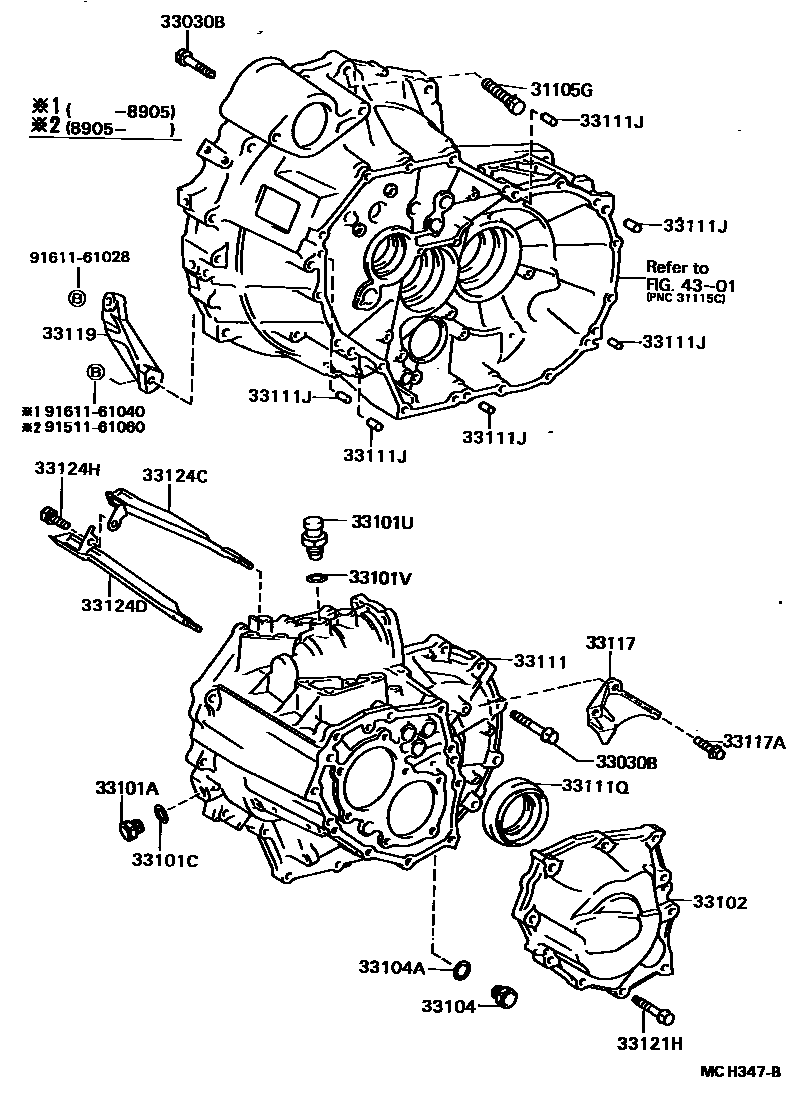

Toyota CAMRY EPC diagram 3302, 离合器壳和变速器壳(MTM), with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-08040 · 90105-10077 · 90105-12038 · 90119-12168 · 91611-61045 · 91619-61260 · 91651-41022 |
| 31283 | Clutch release bearing hub retaining ring | 31283-32010 |
| 31283A | Bolt (for clutch release bearing hub retaining ring) | 90105-06023 |
| 31283B | Ring pin (for clutch release bearing hub retaining ring) | 90253-08002 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08042 · 90105-08126 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18002 · 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101U | Breather plug (for manual transmission) | 90930-03080 · 90930-03111 |
| 33101V | Gasket (for manual transmission breather plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-12030 · 33102-12040 · 33102-32011 · 33102-32012 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-20030 · 33101-20040 · 33101-32010 · 33101-32011 · 33111-20140 · 33111-20141 · 33111-32014 · 33111-33020 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 · 90250-12005 |
| 33111Q | Oil seal (for gearbox) | 90311-44003 · 90311-50010 |
| 33117 | manual transmission protector | 33117-20020 · 33117-32011 |
| 33117A | Bolts (for manual transmission guard) | 90105-08040 |
| 33119 | Left reinforcement plate (MTM) | 33119-20080 · 33119-20090 · 33119-32010 · 33119-32020 · 33119-32040 |
| 33121G | manual gearbox cover | 33102-20040 |
| 33121H | Bolt with washer (for gearbox cover) | 90105-08089 · 90105-08273 · 90119-08630 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-12030 · 33124-20020 · 33124-32011 · 33124-32012 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12040 · 33124-20030 |
| 33124H | Bolt (for oil collection pipe) | 90119-08648 · 91651-60618 |
