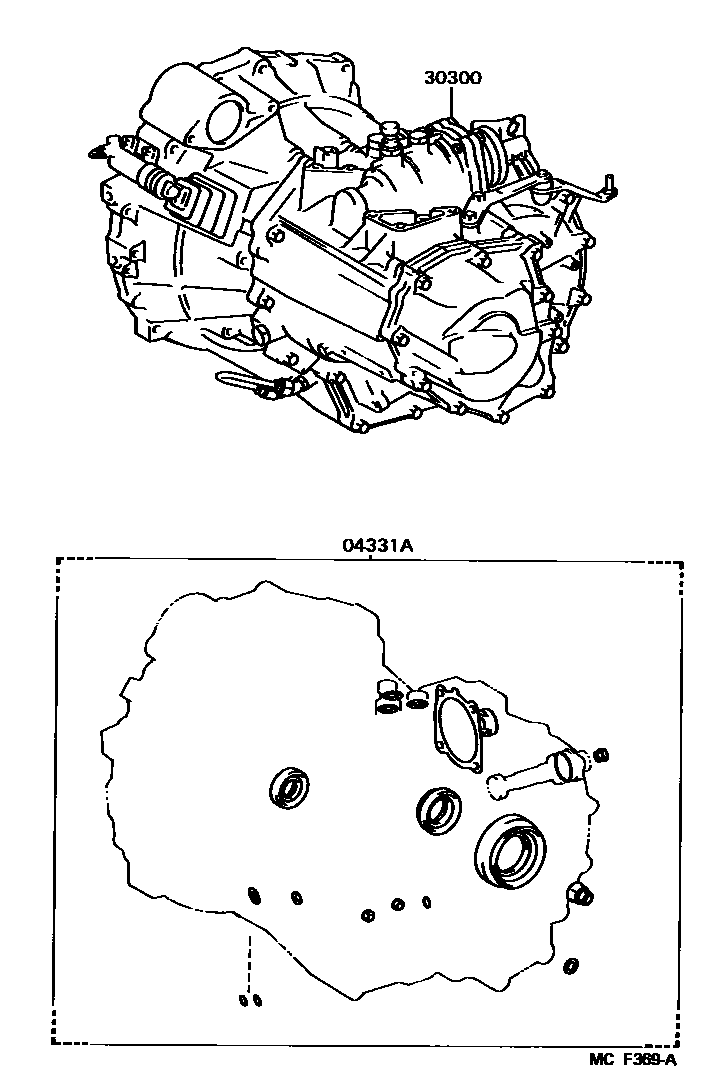

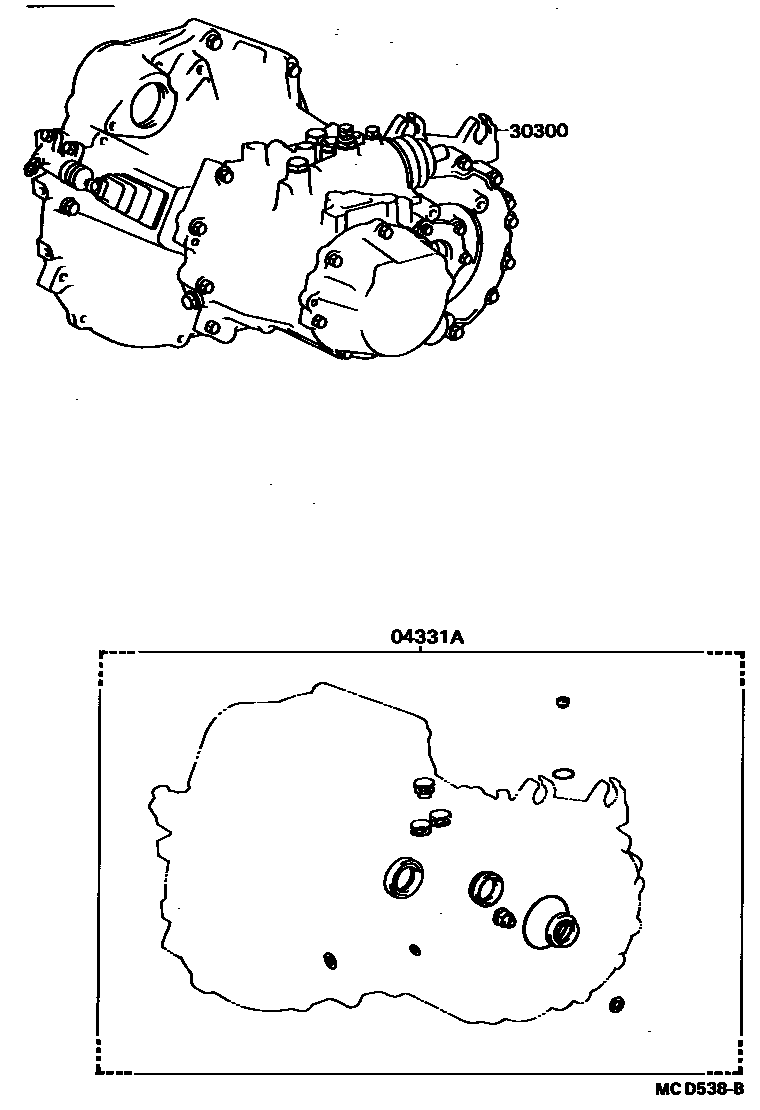

Toyota CAMRY 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota CAMRY EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12091 · 04331-32011 |
| 30300 | Manual transmission axle assembly | 30300-20590 · 30300-20600 · 30300-2B040 · 30300-2B050 · 30300-32430 · 30300-32460 · 30300-32461 · 30300-32490 · 30300-32491 · 30300-32500 · 30300-32501 · 30300-32510 · 30300-32511 · 30300-32520 · 30300-32521 · 30300-32550 |
