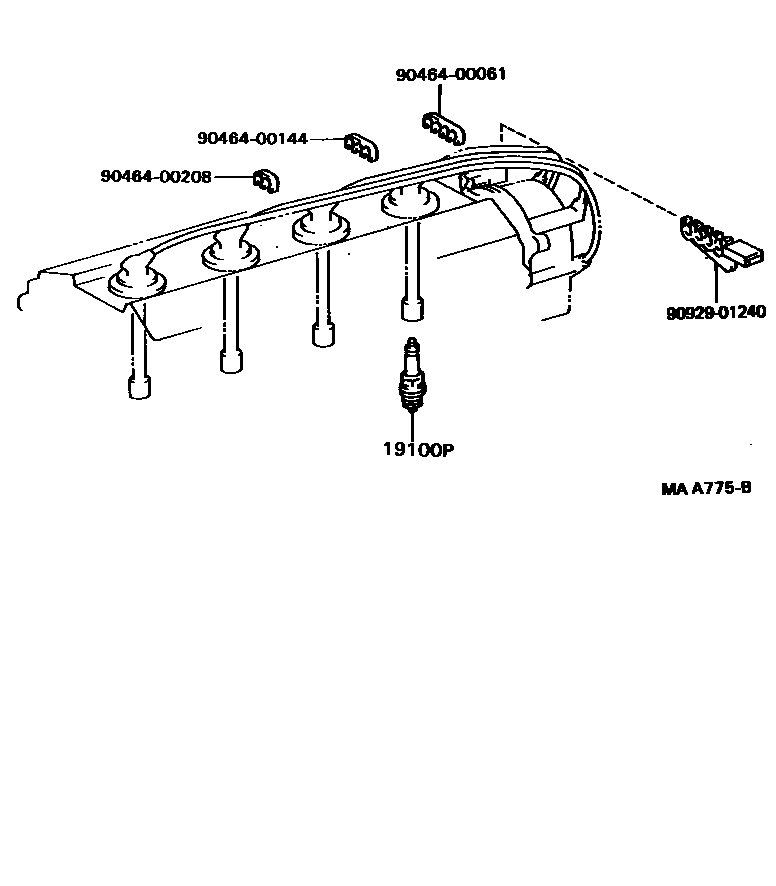

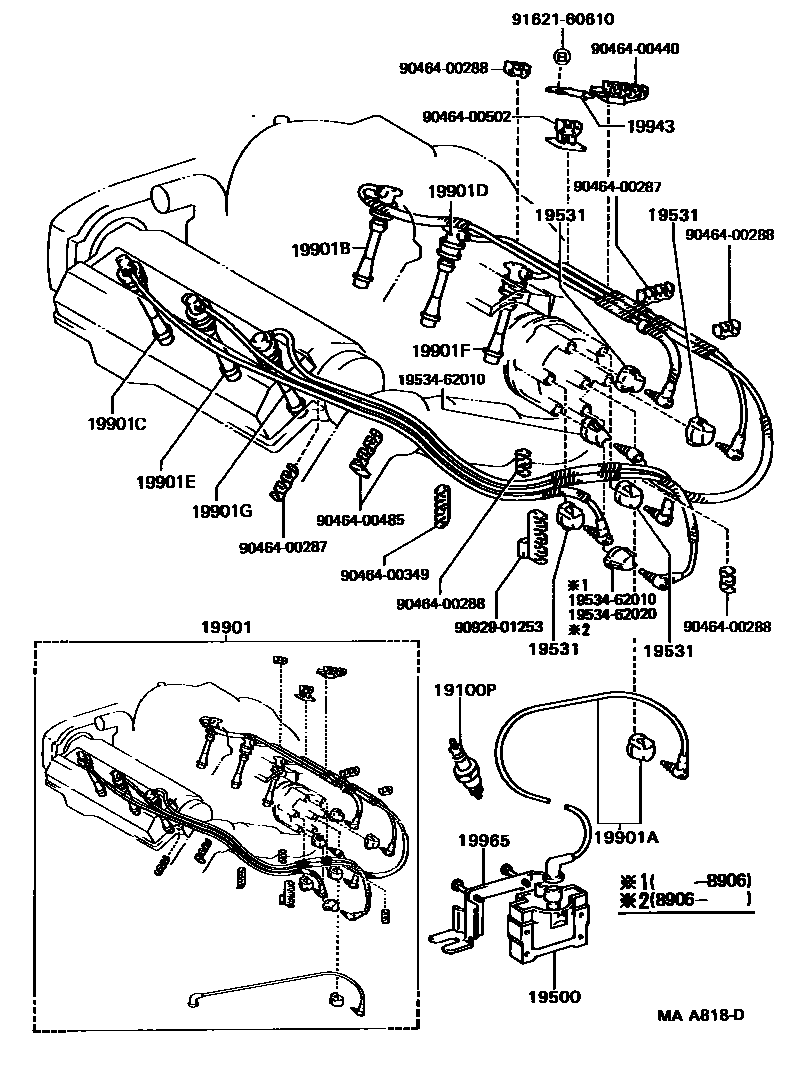

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01127 · 90919-01129 · 90919-01131 |
| 19500 | Ignition coil assembly | 90919-02185 |
| 19531 | No. 1 damping wire fixing piece | 19531-62010 · 19531-62020 |
| 19850 | Glow plug assembly | 19850-64020 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64021 · 19871-64022 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21414 · 90919-21482 |
| 19901A | coil damping line | 19590-62010 · 19590-62020 · 19590-62040 |
| 19901B | No. 1 spark plug damper wire | 90919-12811 · 90919-15251 |
| 19901C | No. 2 spark plug damper wire | 90919-12812 · 90919-15252 |
| 19901D | No. 3 spark plug damper wire | 90919-12813 · 90919-15253 |
| 19901E | No. 4 spark plug damper wire | 90919-12814 · 90919-15254 |
| 19901F | No. 5 spark plug damper wire | 90919-12815 · 90919-15255 |
| 19901G | No. 6 spark plug damper wire | 90919-12816 · 90919-15256 |
| 19943 | No. 1 damping wire clip support plate | 19943-62010 |
| 19965 | No. 1 ignition coil band | 90919-03110 |
