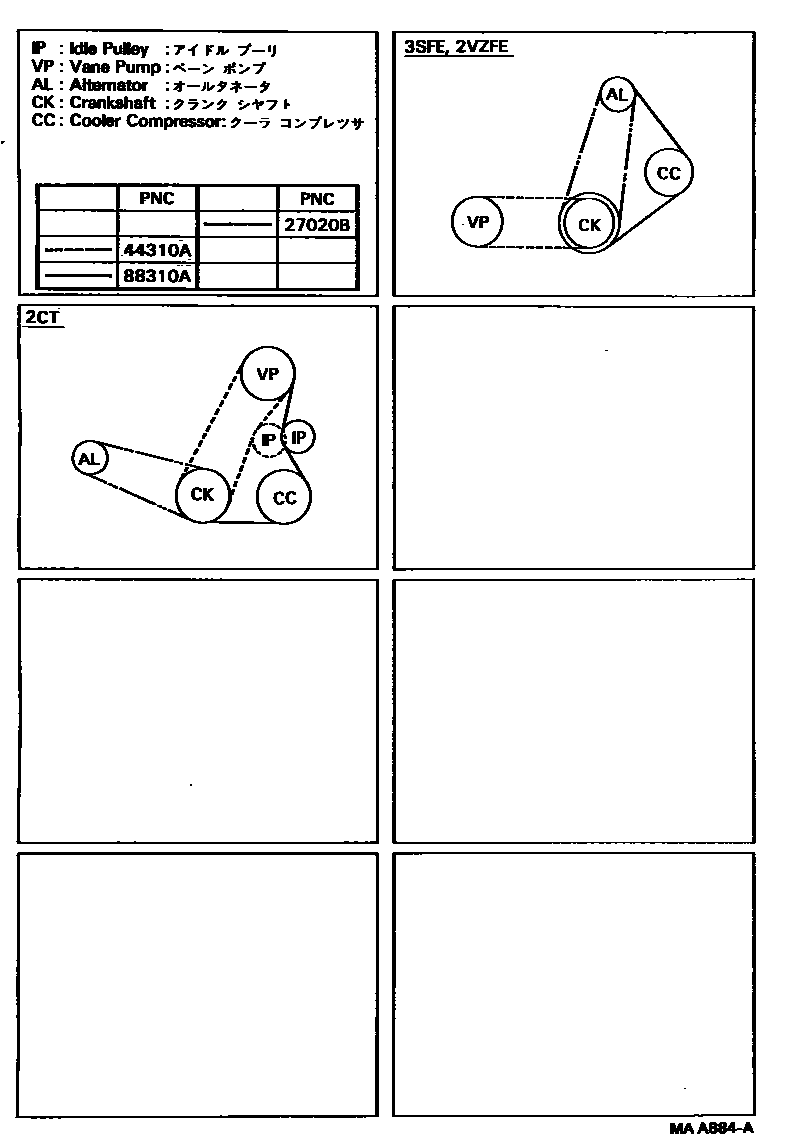

Toyota CAMRY V-Belt — Figure 1605
Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020B | V-belt (for generator) | 90916-02140 · 90916-02219 · 90916-02237 · 90916-02295 · 99366-50940 |
| 44310A | V-belt (for vane pump) | 90916-02177 · 90916-02203 · 90916-02207 · 90916-02256 · 99363-50760 · 99365-21210 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99365-21110 · 99365-51110 · 99365-71110 · 99366-01050 · 99366-21050 · 99366-71050 |
