Toyota CAMRY Engine Oil Cooler — Figure 1503

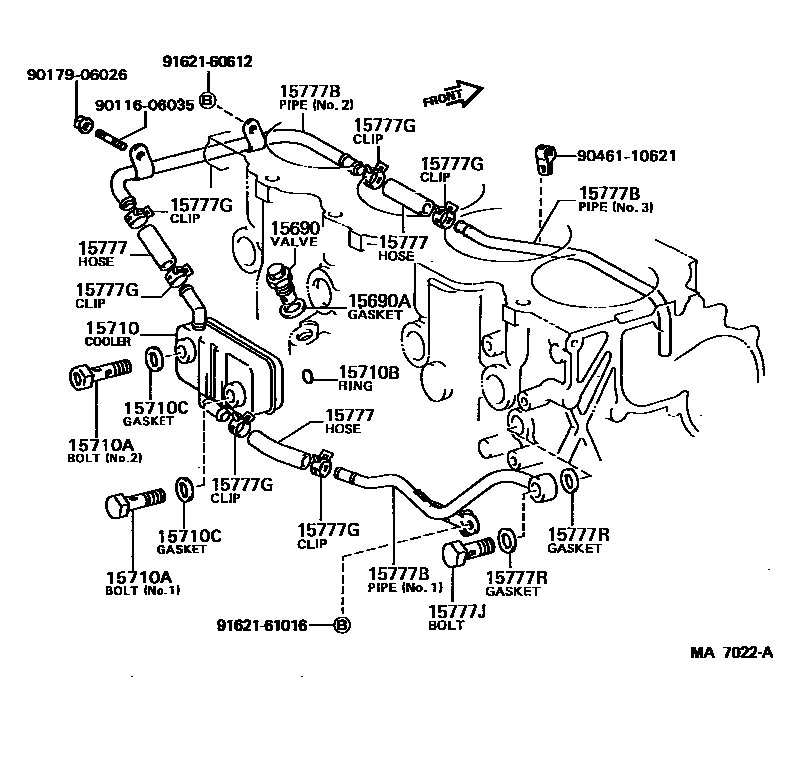

Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15690-62010 · 15690-62011 · 15690-64010 · 15690-74011 |
| 15690A | Gasket (for oil cooler pressure reducing valve) | 90430-22003 |
| 15710 | Oil cooler assembly | 15710-62010 · 15710-62011 · 15710-64010 · 15710-74021 · 15710-74022 |
| 15710A | Connector bolt (for oil cooler) | 90401-18009 · 90401-18011 |
| 15710B | O-ring (for oil cooler) | 90301-22004 · 90301-52002 |
| 15710C | Gasket (for oil cooler) | 90430-18012 · 90430-18021 |
| 15777 | oil cooler hose | 90445-21006 |
| 15777B | oil cooler pipe | 15767-64010 · 15768-64031 · 15768-64070 · 15769-64010 |
| 15777G | Hose clips or clips | 90467-20005 |
| 15777J | Connector bolt (for oil cooler pipe) | 90401-20004 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 90430-20004 |
| 15785 | oil cooler gasket | 15785-35010 |
