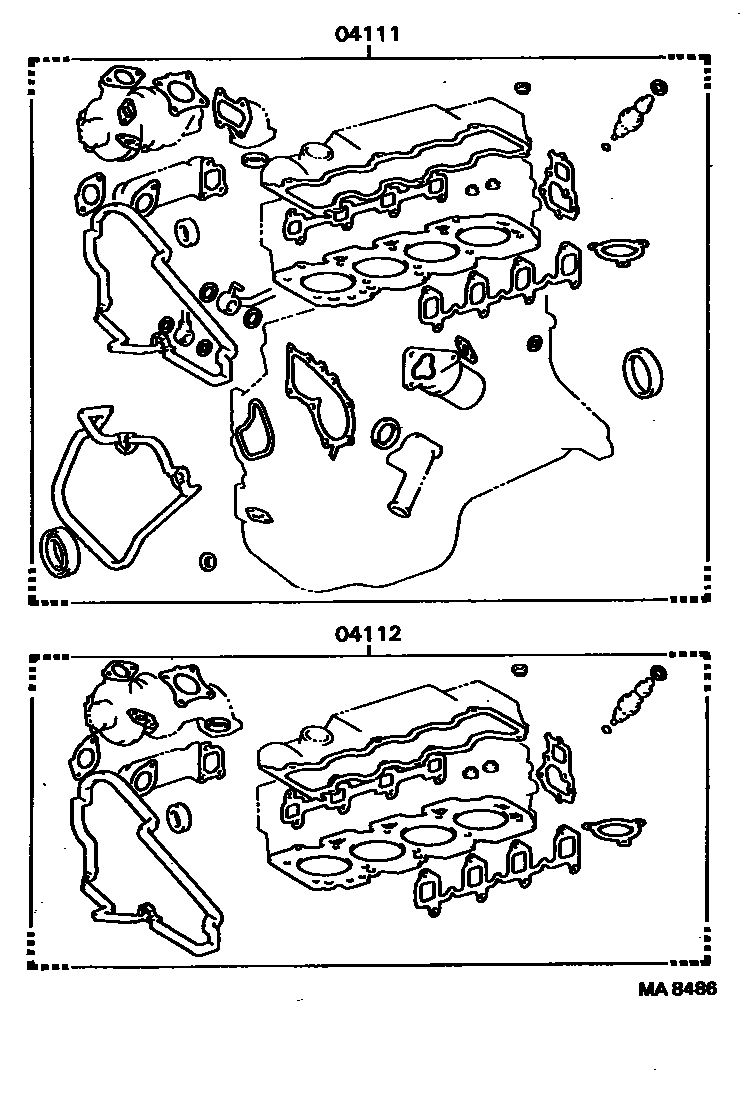

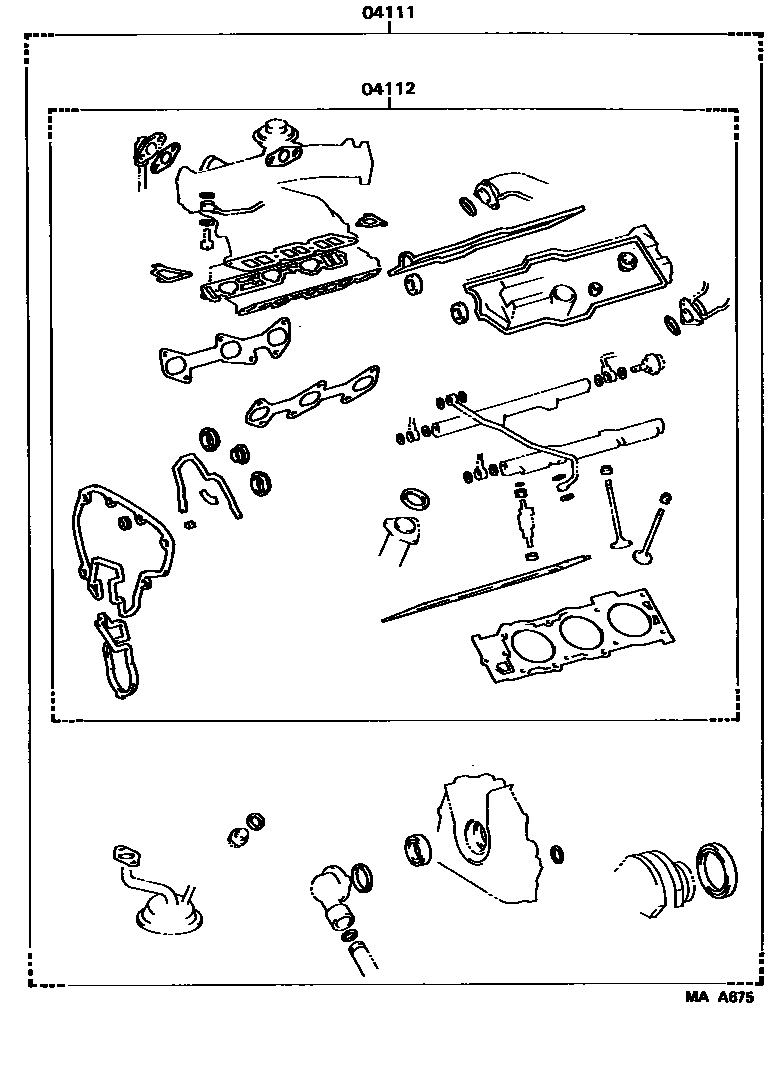

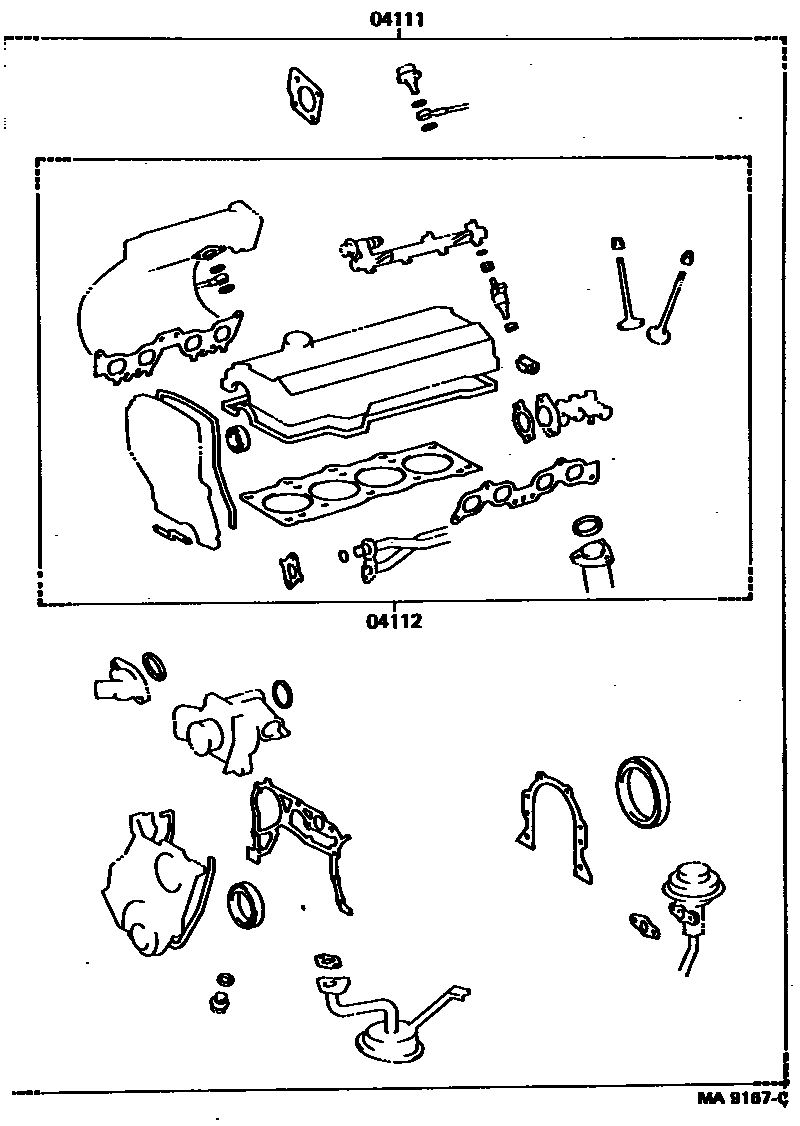

Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103
Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-62020 · 04111-62021 · 04111-62022 · 04111-64102 · 04111-64104 · 04111-64105 · 04111-64106 · 04111-64171 · 04111-74051 · 04111-74190 · 04111-74191 |
| 04112 | Engine valve grinding pad assembly | 04112-62020 · 04112-62021 · 04112-64083 · 04112-64085 · 04112-64086 · 04112-64111 · 04112-74050 |
