Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

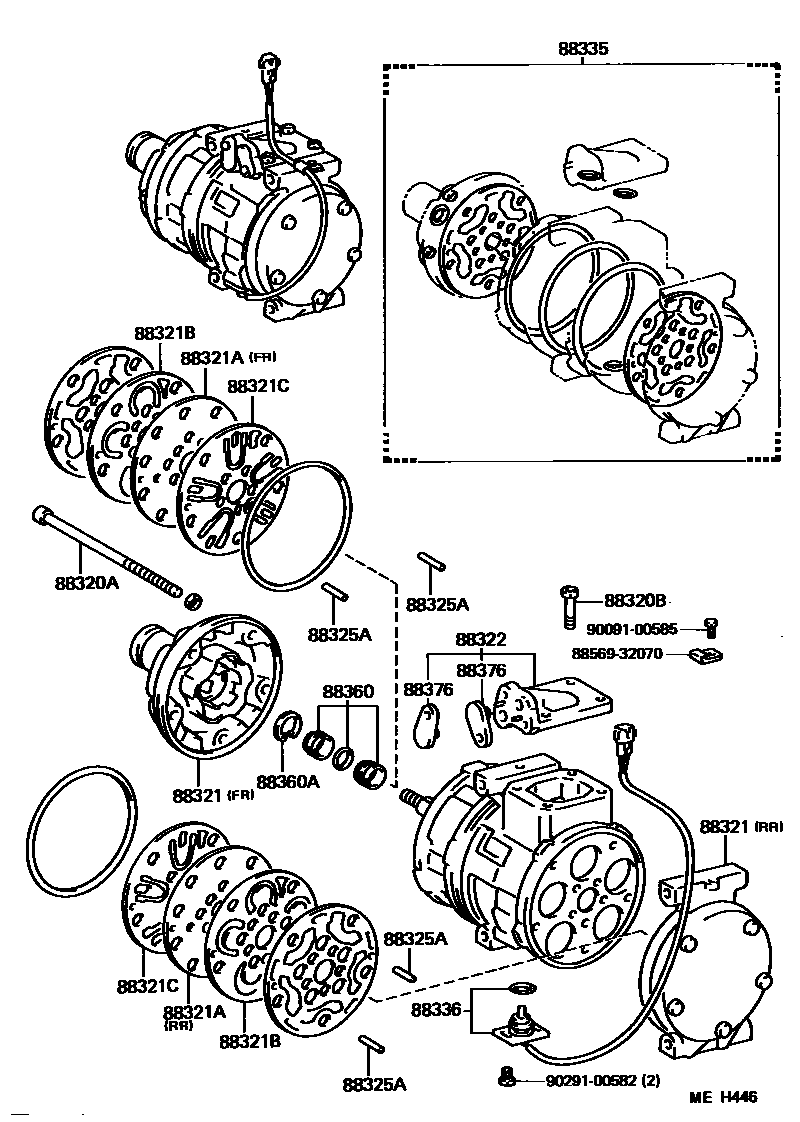

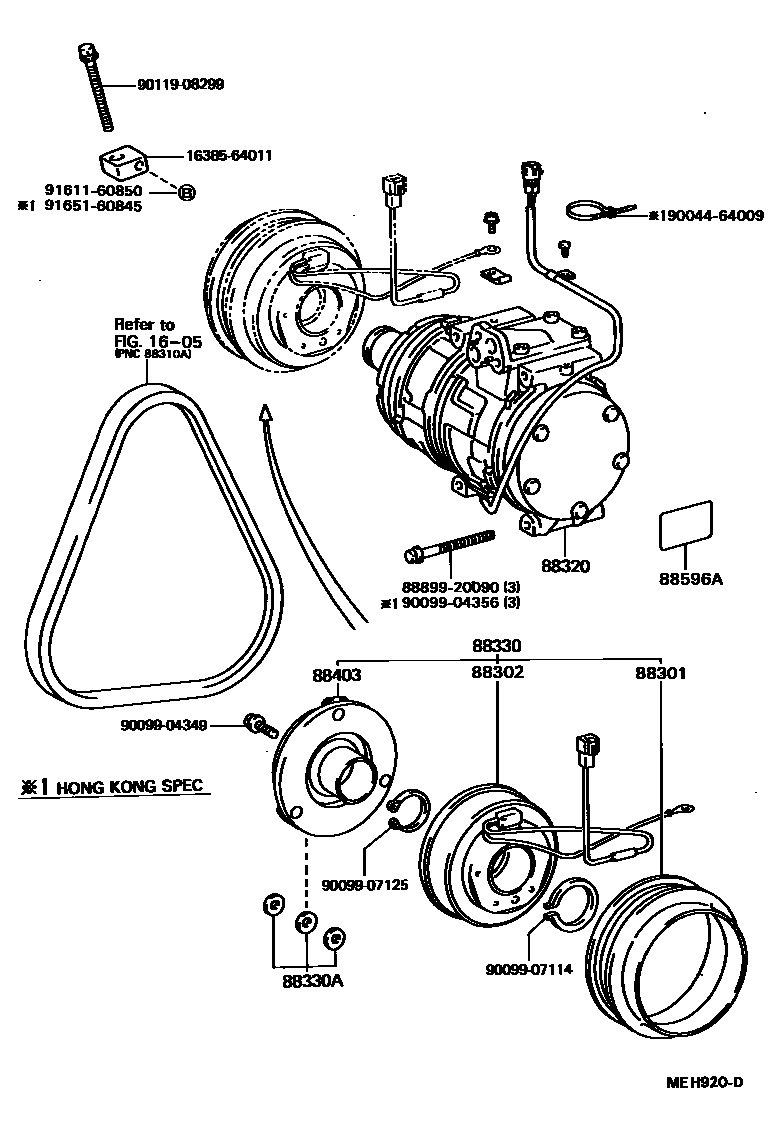

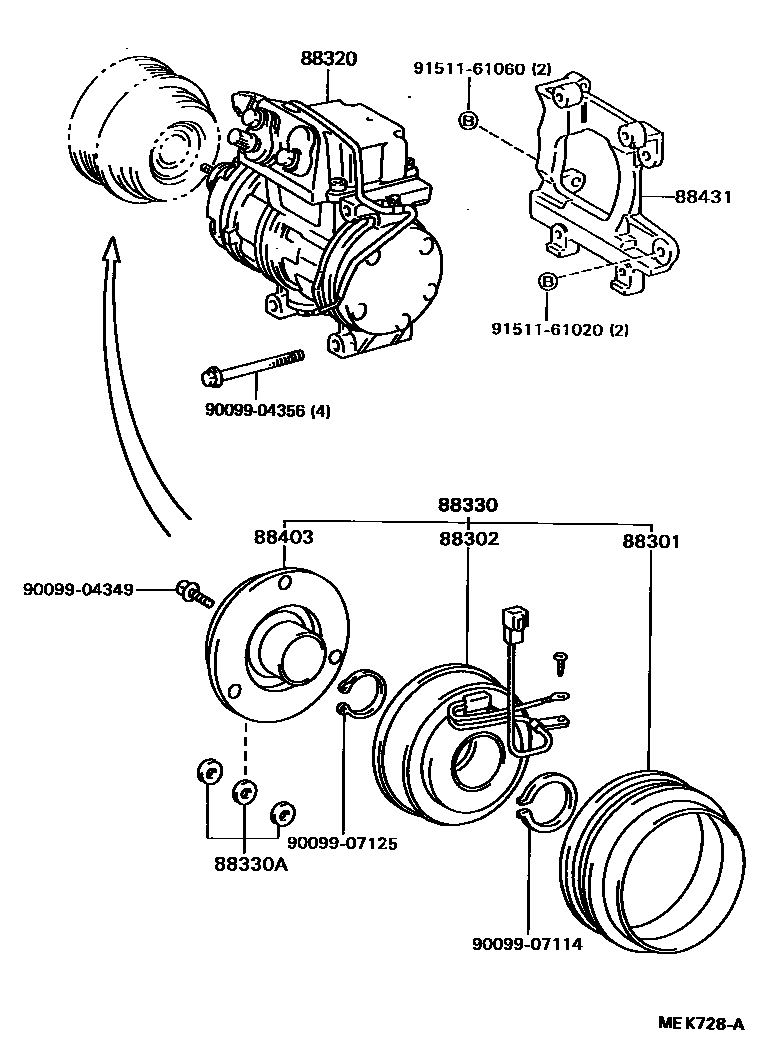

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-20090 · 88412-32020 · 88412-32030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-32020 · 88411-32021 · 88411-32031 |
| 88320 | Cooler Compressor Assembly | 88320-32070 · 88320-32080 · 88320-32110 |
| 88320A | Through bolt | 90099-04958 |
| 88320B | Service valve bolts | 90099-04924 |
| 88321 | Cooler compressor cylinder head | 88321-14021 · 88322-14020 |
| 88321A | Valve sub-assembly | 88341-14020 · 88342-14020 |
| 88321B | Valve reed sub-assembly | 88344-14020 |
| 88321C | suction valve reed | 88343-14020 |
| 88322 | Cooler compressor suction service valve | 88371-32050 · 88371-32060 · 88371-32080 |
| 88325A | cylinder pin | 90099-08058 |
| 88330 | Magnetic Clutch Assembly | 88410-32030 · 88410-32040 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-32010 |
| 88336 | compressor sensor | 88336-17010 · 88336-32040 |
| 88360 | Cooler compressor shaft seal assembly | 88360-14030 · 88360-14040 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88376 | blind cover | 88376-17020 · 88376-22020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16010 · 88403-16011 |
| 88431 | Compressor No. 1 mounting bracket | 88431-32010 |
| 88596A | warning nameplate | 88356-12010 |
