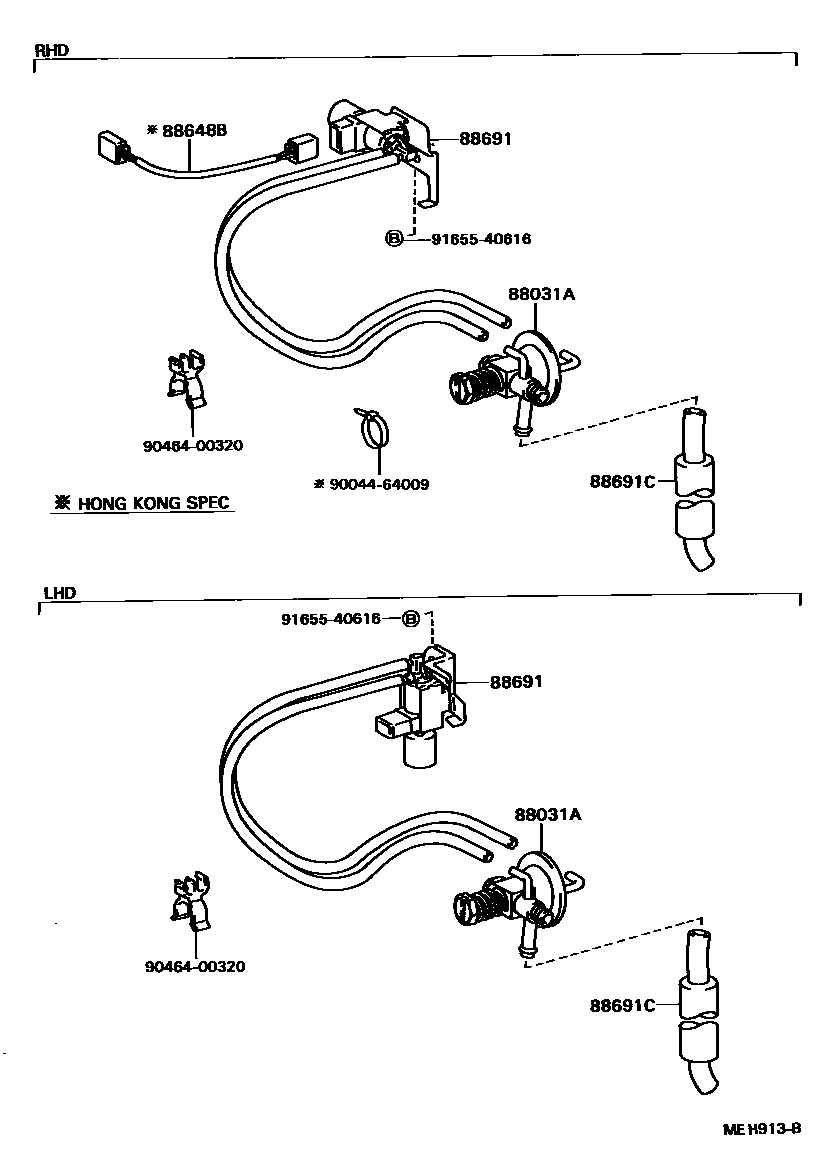

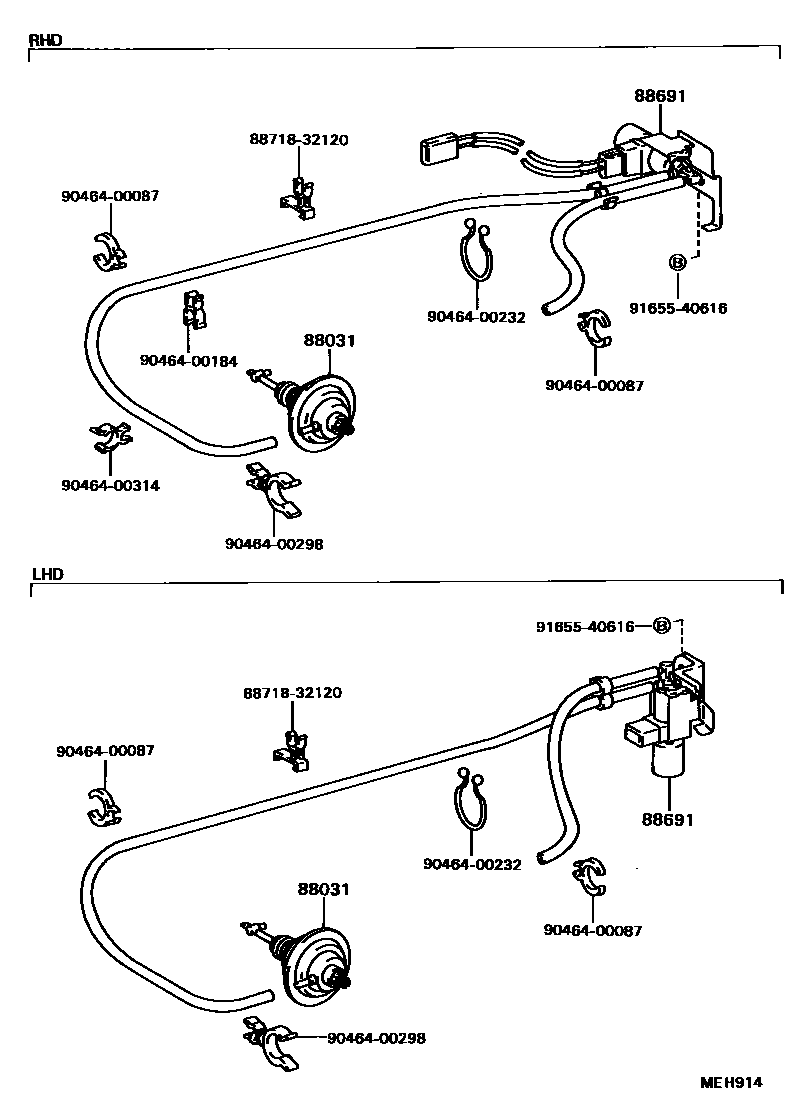

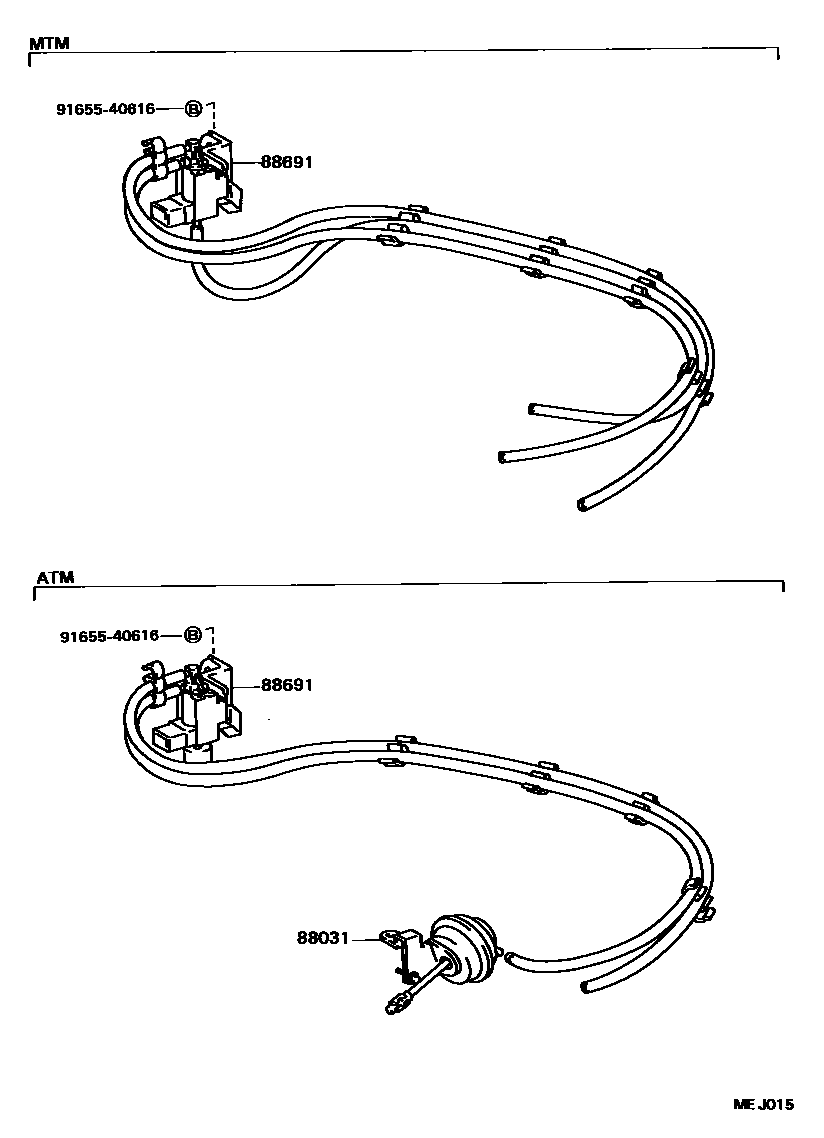

Toyota CAMRY 暖风和空调系统 - 真空管 — Figure 8717
Toyota CAMRY EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12150 · 88031-30070 · 88031-32010 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-32010 |
| 88648B | No. 1 cooler wiring harness | 88648-32070 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-32240 · 88690-32250 · 88690-32260 · 88690-32270 · 88690-32280 · 88690-32290 · 88690-32310 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-32050 |
