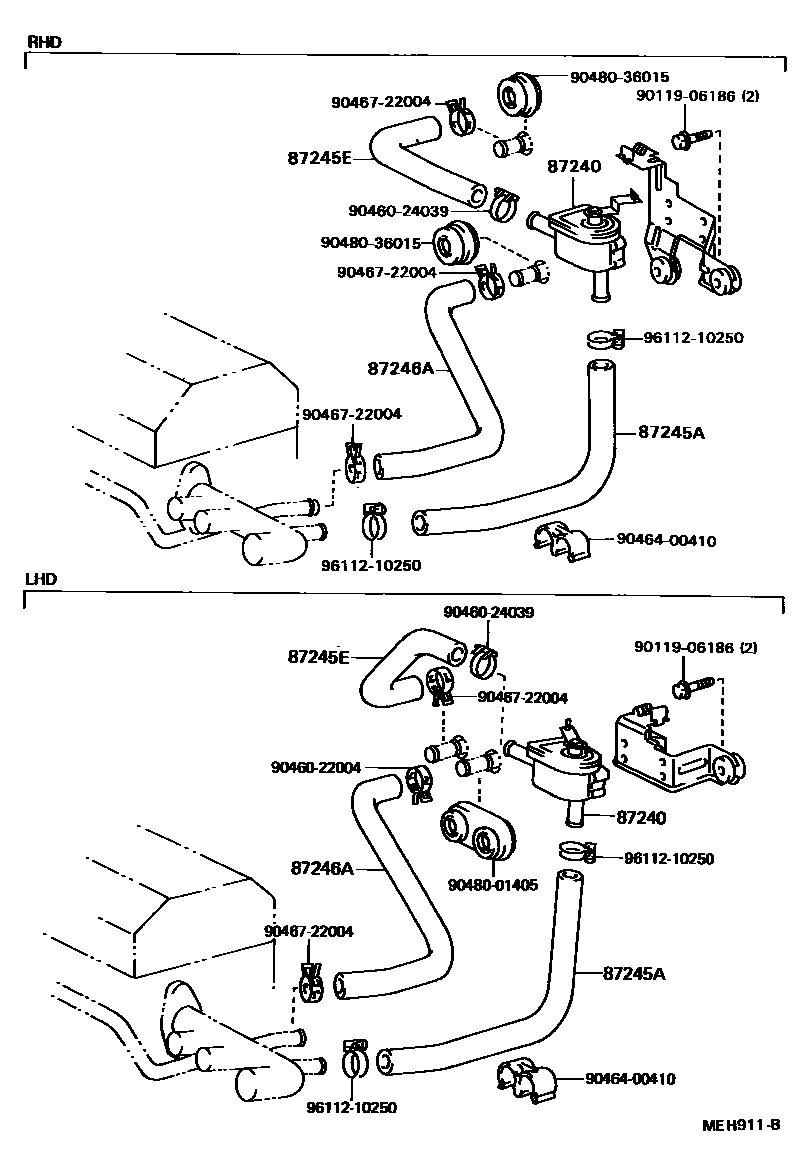

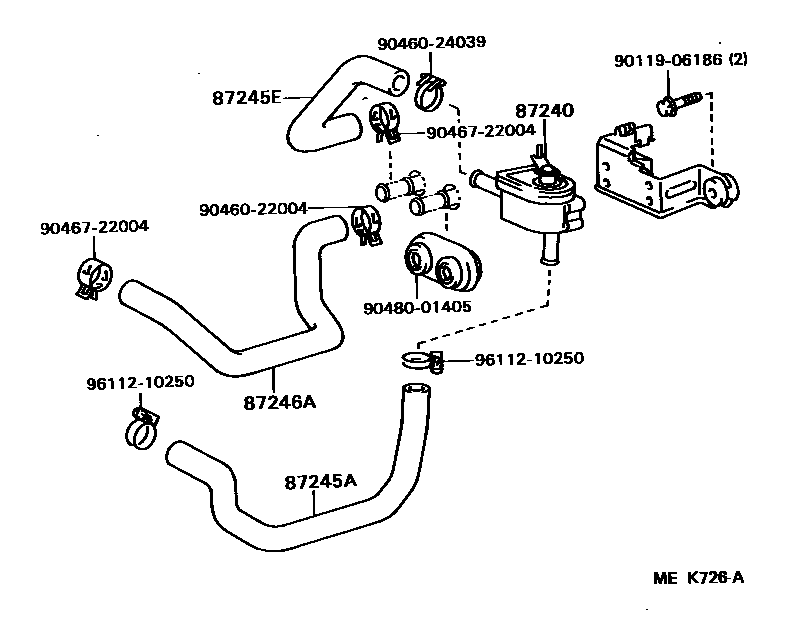

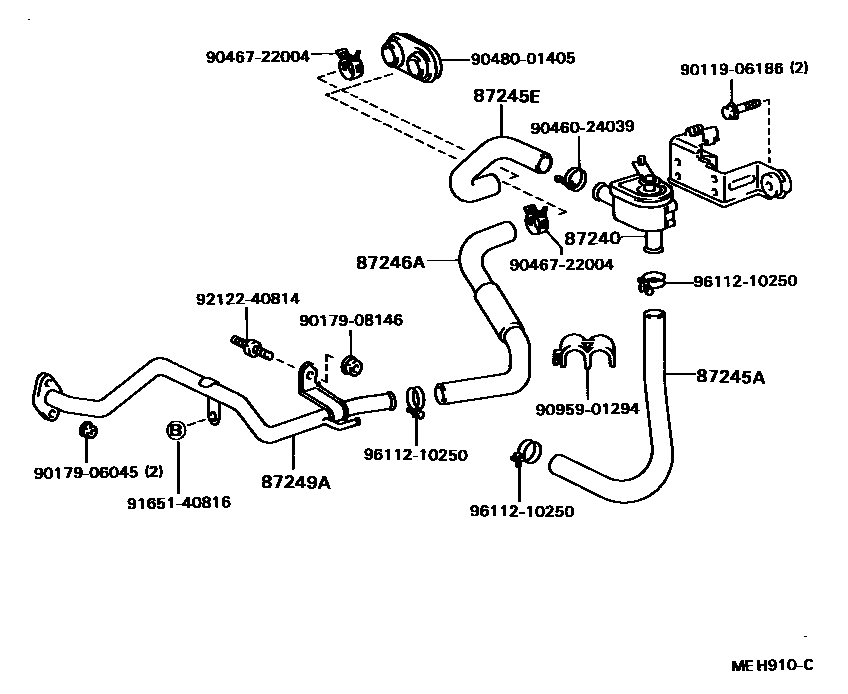

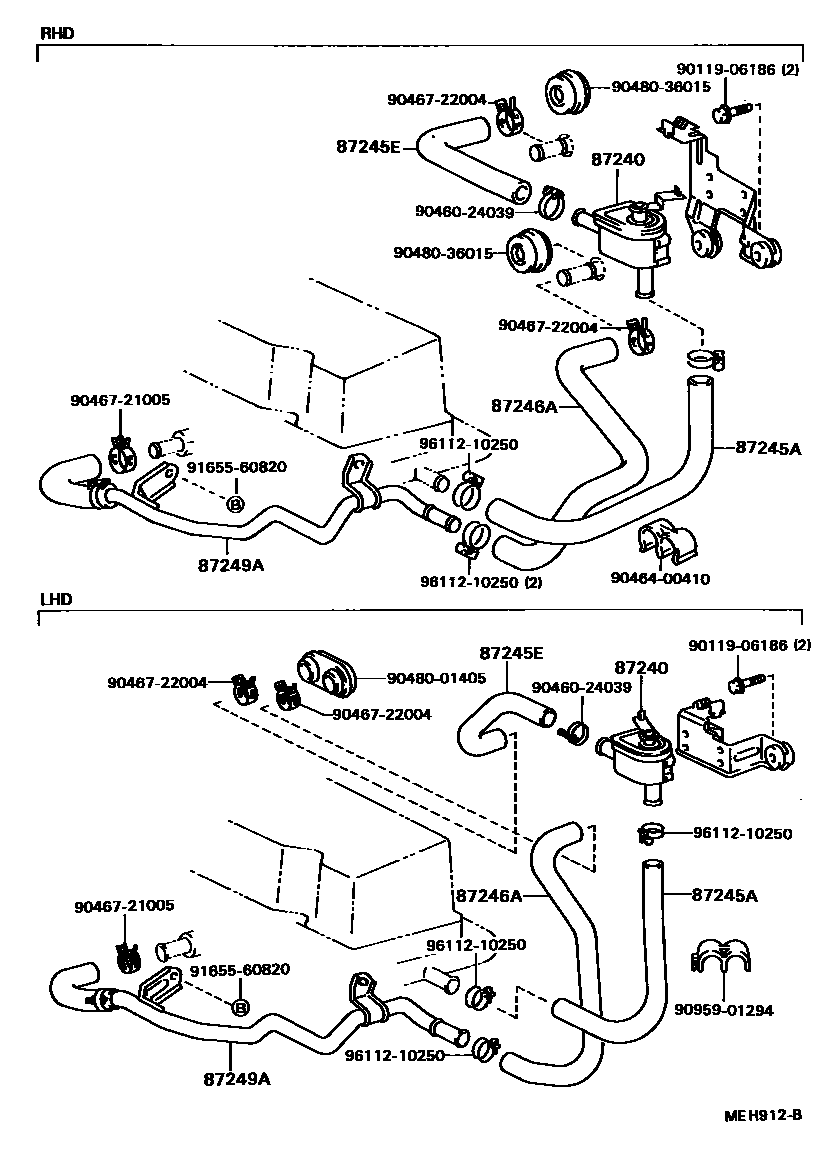

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-32030 · 87240-32040 |
| 87245A | Heater water inlet hose A | 87245-32160 · 87245-32190 · 99556-30500 |
| 87245E | Heater water inlet hose E | 87245-32080 · 87245-32150 |
| 87246A | Heater outlet hose A | 87245-32050 · 87245-32090 · 87245-32100 · 87245-32110 · 87245-32140 · 87245-32170 |
| 87249A | Heater outlet pipe A | 87208-20170 · 87209-12420 |
